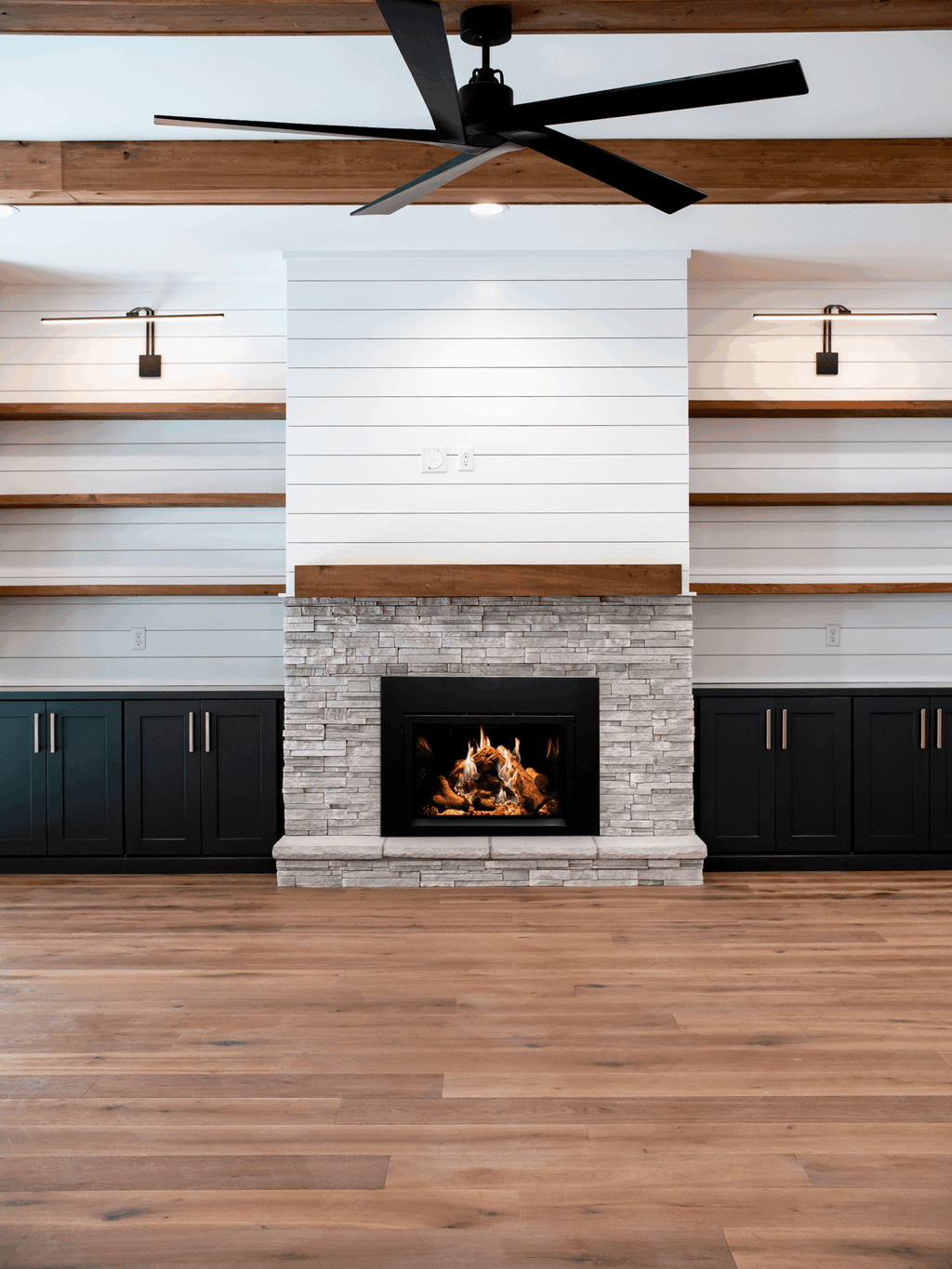

The Empire Rainier Fireplace Insert provides a practical way to convert an existing fireplace into a direct vent gas heating appliance while maintaining the appearance of a natural flame. Designed for natural gas operation, this Empire Rainier Natural Gas insert features an intermittent pilot ignition system with an on/off switch and delivers an adjustable heat output from 21,000 to 32,000 BTUs. A triple burner system with two elevated burners, glowing embers, ember glass, and accent lighting creates a layered flame presentation that is visible through the 19-inch high by 28-1/4-inch wide ceramic glass viewing area.
The built-in accent blower helps circulate warm air throughout the room, while the included remote control allows convenient adjustment of flame height, blower speed, and lighting functions. A battery backup supports operation during power outages. The Empire Rainier Direct Vent design is intended for fireplace insert installations and requires a compatible log set, liners, and surrounds, which are sold separately. The Empire Rainier Fireplace Insert includes the fireplace insert, blower, ceramic glass, ignition system with remote, ember media, accent lighting, power cord, and battery backup.
Features
- Direct vent fireplace insert designed for natural gas installation
- Adjustable heat output from 21,000 to 32,000 BTUs
- Triple burner system with two elevated burners, glowing embers, ember glass, and accent lighting
- Ceramic glass viewing area measuring 19 in. H × 28-1/4 in. W
- Included full-function remote controls flame height, blower speed, and lighting
- Built-in accent blower and battery backup for continued operation during power outages
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Model | DVCP34BN91N |
| Product Category | Direct Vent Fireplace Insert |
| Fuel Type | Natural Gas |
| Vent Type | Direct Vent |
| Finish | Black |
| Installation | Fireplace Insert |
| Ignition Type | Intermittent Pilot |
| Maximum Input | 32,000 BTU/hr |
| Minimum Input | 21,000 BTU/hr |
| Maximum kW | 9.38 |
| Minimum kW | 6.15 |
| Burner Configuration | Triple Burner with Two Elevated Burners |
| Viewing Area | 19 in. H × 28-1/4 in. W |
| Glass Type | Ceramic Glass |
| Blower | Accent Blower Included |
| Remote Control | Included |
| Battery Backup | Included |
| Center Orifice | 51 |
| Left Orifice | 49 |
| Right Orifice | 52 |
| Center Air Shutter | 1/16 in. |
| Left Air Shutter | 1/16 in. |
| Right Air Shutter | 1/16 in. |
| Gas Inlet Shut-off Valve | 3/8 MIF |
| Maximum Gas Supply Pressure | 14 |
| Minimum Gas Supply Pressure | 4.5 |
| Manifold Pressure | 3.5 |
| Minimum Fireplace Opening Width | 34 in. |
| Minimum Fireplace Opening Height | 24 in. |
| Minimum Fireplace Opening Depth | 18 in. |
Included
- Rainier Direct Vent Fireplace Insert
- Accent blower
- Ember glass
- Ember and top accent light
- Triple burner with two elevated burners
- Glowing embers
- Battery backup
- Ceramic glass
- PF2 ignition system with remote
- Power cord
Sold Separately
- Log Set (Required)
- Liners (Required)
- Surrounds (Required)
- Decorative Front Frame
- Decorative Arch Inset
- Decorative Rectangle Inset
- Decorative Beveled Frame
- Gas Conversion Kit
- Venting Accessories
Warranty
- Limited Lifetime Parts Warranty with Five-Year Limited Labor Warranty – Combustion Chamber
- Limited Ten-Year Parts Warranty – Venting
- Limited One-Year Parts Warranty – Accessories and Parts
Technical Documents & Manuals
Product FAQs
Q1. What fuel does the Empire Rainier DVCP34BN91N use?
The Empire Rainier DVCP34BN91N is designed for natural gas operation and uses a direct vent system with an intermittent pilot ignition.
Q2. What is included with the Empire Rainier Fireplace Insert?
The unit includes the fireplace insert, accent blower, ceramic glass, ember glass, ember and top accent lighting, glowing embers, triple burner system with two elevated burners, PF2 ignition system with remote, battery backup, and power cord. Required log sets, liners, and surrounds are sold separately.
Q3. What fireplace opening is required for installation?
The minimum fireplace opening dimensions are:
-
Width: 34 inches
-
Height: 24 inches
-
Depth: 18 inches
These minimum dimensions should be met before installation.
