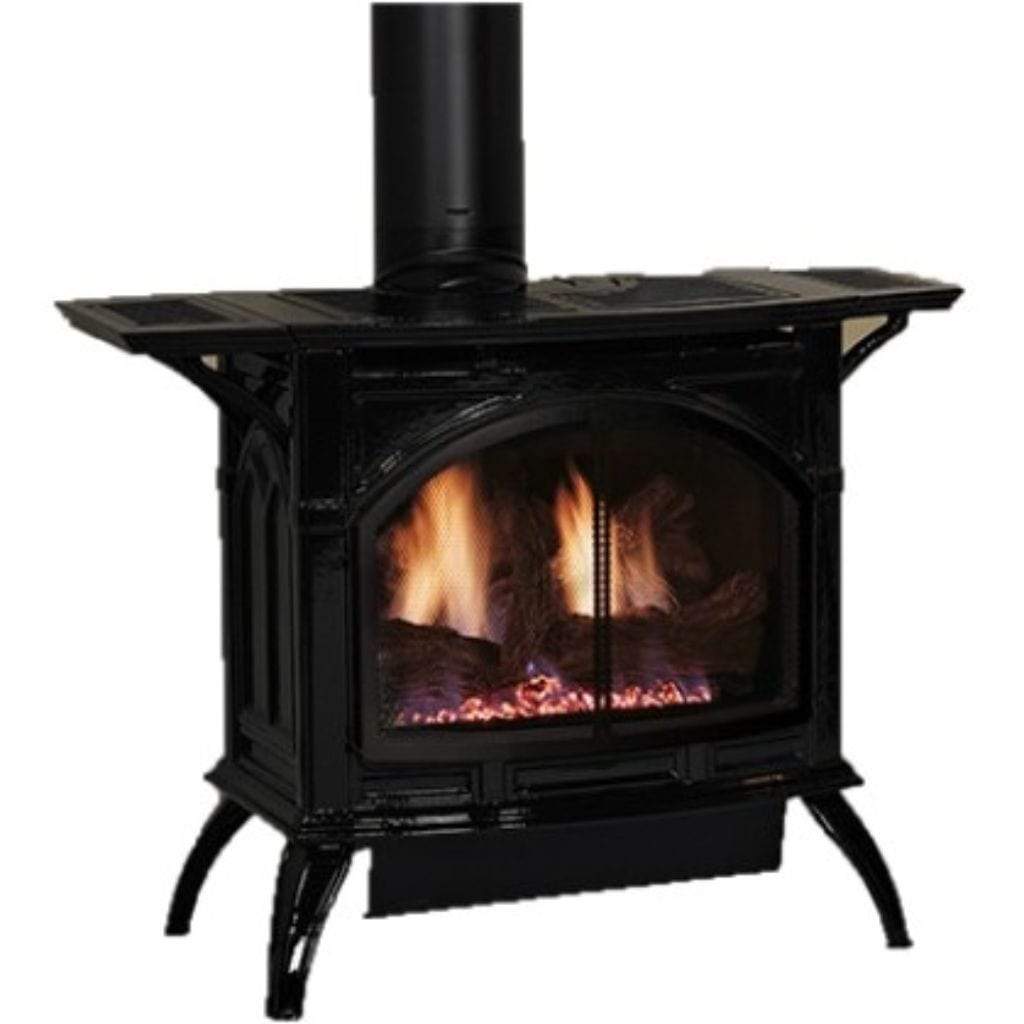

The Empire Spirit Direct Vent stove offers dependable propane heating in a freestanding cast iron design with a matte black finish. The Empire Spirit Propane Gas stove uses a direct vent system that draws combustion air from outdoors while venting combustion by-products outside, helping separate room air from combustion air. Its millivolt ignition system features a standing pilot lit with a push-button piezo ignitor and can be operated using the concealed on/off switch or an optional remote control system.
Designed with Empire's Slope Glaze Burner system, this Direct Vent stove creates naturally moving flames using ceramic beads that swirl the gas through the burner. Combined with the hand-painted ceramic fiber log set and expanded ember bed, the fire presentation closely resembles a traditional wood fire. With a heating input of up to 26,500 BTU/hr, the stove may be used as a primary heat source and can continue providing heat during a winter power outage. The sealed combustion chamber and direct vent configuration help support efficient heat transfer through the glass while circulating warmth into the room. A fireplace barrier screen, four-piece log set, and burner system are included.
Features
- Direct vent system separates combustion air from room air while venting exhaust outdoors.
- Millivolt ignition with push-button piezo ignitor and concealed on/off switch.
- Compatible with optional remote control or thermostat operation.
- Slope Glaze Burner system with expanded ember bed creates realistic flame movement.
- Hand-painted ceramic fiber log set enhances the appearance of a traditional wood fire.
- Freestanding cast iron construction with matte black finish and heating input up to 26,500 BTU/hr.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Series | Spirit |
| Model | DVP30CC |
| SKU | DVP30CC30FP |
| Product Type | Direct Vent Cast Iron Medium Stove |
| Installation | Freestanding |
| Fuel Type | Propane Gas |
| Ignition Type | Millivolt |
| Finish | Matte Black |
| Vent Type | Direct Vent |
| Vent Size | 4 x 6 5/8 in. |
| Maximum Input | 26,500 BTU/hr |
| Minimum Input | 21,000 BTU/hr |
| Gas Inlet | 3/8 in. |
| Orifice | 1.55 mm |
| Air Shutter Setting | Full Open |
| Maximum Gas Supply Pressure | 13.0 in. W.C. (3.237 kPa) |
| Minimum Gas Supply Pressure | 11.0 in. W.C. (2.739 kPa) |
| Manifold Pressure | 10.0 in. W.C. (2.490 kPa) |
| Width | 28 in. |
| Height | 28 in. |
| Depth | 18 in. |
Included
- Medium Cast Iron Stove
- Four-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Optional Accessories (Sold Separately)
- 45-Degree Elbow (Required)
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Traditional Corner Floor Pad
- Stone Inlay Kit
- Cast Iron Stove Stone Inlays
Warranty
- Combustion chamber: 10-year limited warranty
- Glass: Limited lifetime warranty
- Remote controls: 1-year limited warranty
- All other parts: 3-year limited warranty
Technical Documents & Manuals
Product FAQs
Q1. What type of venting does the Empire Spirit DVP30CC30FP use?
Answer:
The Empire Spirit DVP30CC30FP uses a direct vent system that brings combustion air from outside while exhausting combustion by-products outdoors. It is designed for 4 x 6 5/8 inch venting.
Q2. How is the stove operated?
Answer:
This model features a millivolt ignition system with a standing pilot that is lit using a push-button piezo ignitor. Once lit, the stove operates using the concealed on/off switch on the back of the unit and is compatible with optional remote control systems.
Q3. What is included with the Empire Spirit DVP30CC30FP?
Answer:
The stove includes the medium cast iron stove, a four-piece hand-painted ceramic fiber log set, a fireplace barrier screen, and Empire's Slope Glaze Burner system with an expanded ember bed. Additional accessories such as a blower, porcelain liner, floor pads, and remote controls are available separately.
