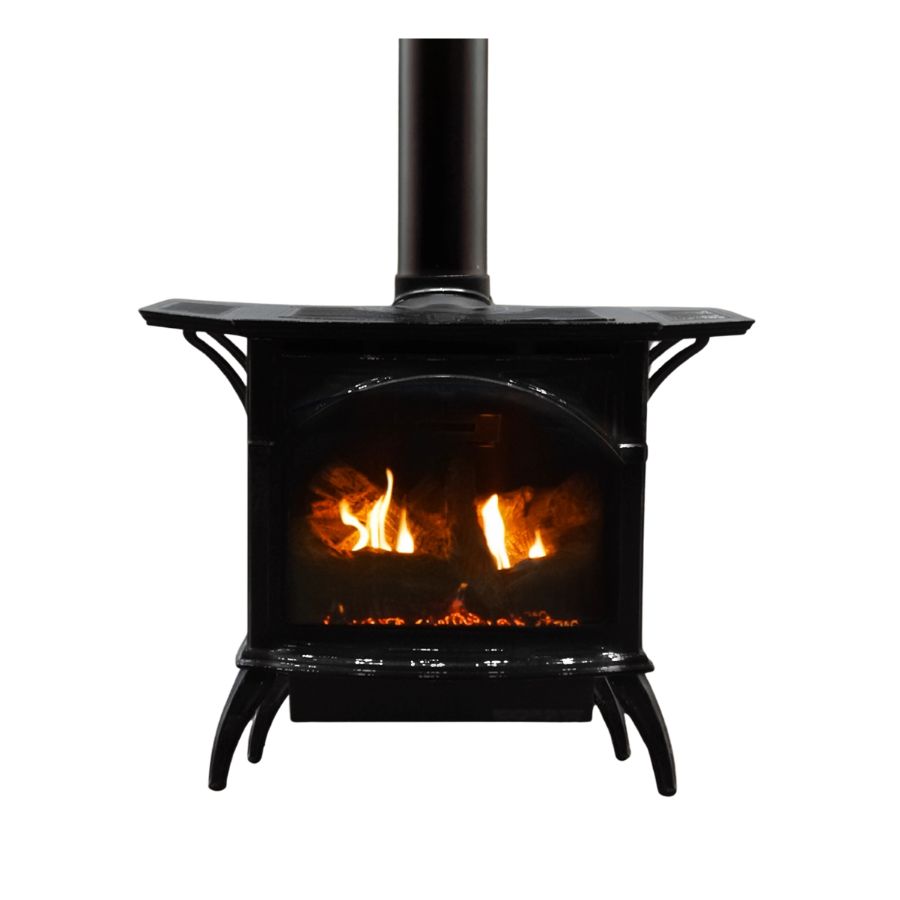

Empire Spirit 28 Inch Natural Gas Stove Direct Vent Cast Iron Porcelain Black Finish DVP30CC30BN is a freestanding direct vent cast iron stove designed to provide dependable supplemental or primary heating while keeping combustion air separate from indoor air. The direct vent system draws combustion air from outdoors and vents exhaust gases outside, helping maintain indoor air quality while delivering efficient heat output.
This model features Empire's Slope Glaze Burner system with an expanded ember bed that works with ceramic beads to produce naturally swirling flames. The hand-painted ceramic fiber log set and glowing embers create the appearance of a traditional wood fire while operating on natural gas. The millivolt ignition system uses a standing pilot lit by a push-button piezo ignitor and includes a concealed on/off switch on the back of the stove. It is also compatible with optional remote control systems for added operating convenience. Supplied with a fireplace barrier screen, four-piece log set, and cast iron stove, this direct vent unit offers heating performance with an input range of 18,000 to 26,500 BTU per hour. The sealed combustion design can continue providing heat during a winter power outage when installed as specified.
Features
- Direct vent system separates combustion air from room air using a sealed combustion chamber.
- Slope Glaze Burner with expanded ember bed produces realistic flame appearance and ember glow.
- Hand-painted ceramic fiber four-piece log set enhances the appearance of a traditional wood fire.
- Millivolt ignition system with push-button piezo ignitor and concealed rear on/off switch.
- Compatible with optional remote control systems and thermostat operation.
- Freestanding cast iron stove designed for natural gas installation with direct vent configuration.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire |
| Series | Spirit |
| Model | DVP30CC |
| SKU | DVP30CC30BN |
| Fuel Type | Natural Gas |
| Vent Type | Direct Vent |
| Installation | Freestanding |
| Ignition Type | Millivolt |
| Finish | Porcelain Black |
| Maximum Input | 26,500 BTU/hr |
| Minimum Input | 18,000 BTU/hr |
| Vent Size | 4 x 6 5/8 in. |
| Gas Inlet | 3/8 in. |
| Orifice | #39 |
| Air Shutter Setting | 3/16 in. |
| Maximum Gas Supply Pressure | 10.5 in. W.C. (2.614 kPa) |
| Minimum Gas Supply Pressure | 4.5 in. W.C. (1.121 kPa) |
| Manifold Pressure | 3.5 in. W.C. (0.872 kPa) |
| Width | 28 in. |
| Height | 28 in. |
| Depth | 18 in. |
Included
- Medium Cast Iron Stove
- Four-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Sold Separately
- 45 Degree Elbow (Required)
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Traditional Corner Floor Pad
- Stone Inlay Kit
- Cast Iron Stove Stone Inlays
Warranty
- Direct vent combustion chamber: 10-year limited warranty
- Glass: Limited lifetime warranty
- Remote controls: 1-year limited warranty
- All other parts: 3-year limited warranty
Technical Documents & Manuals
Product FAQs
1. What type of venting does the Empire Spirit DVP30CC30BN use?
The DVP30CC30BN uses a direct vent system that draws combustion air from outside the home and exhausts combustion by-products outdoors through a 4 x 6 5/8 inch vent system.
2. What is included with the Empire Spirit DVP30CC30BN?
The stove includes the medium cast iron stove, a four-piece hand-painted ceramic fiber log set, a fireplace barrier screen, and the Slope Glaze Burner system. Several accessories, including the blower, gas conversion kit, and floor pads, are sold separately.
3. What heating capacity does the Empire Spirit DVP30CC30BN provide?
The stove operates on natural gas with an input range of 18,000 BTU/hr to 26,500 BTU/hr. It is designed for freestanding installation and may be used as a primary heat source where appropriate.
