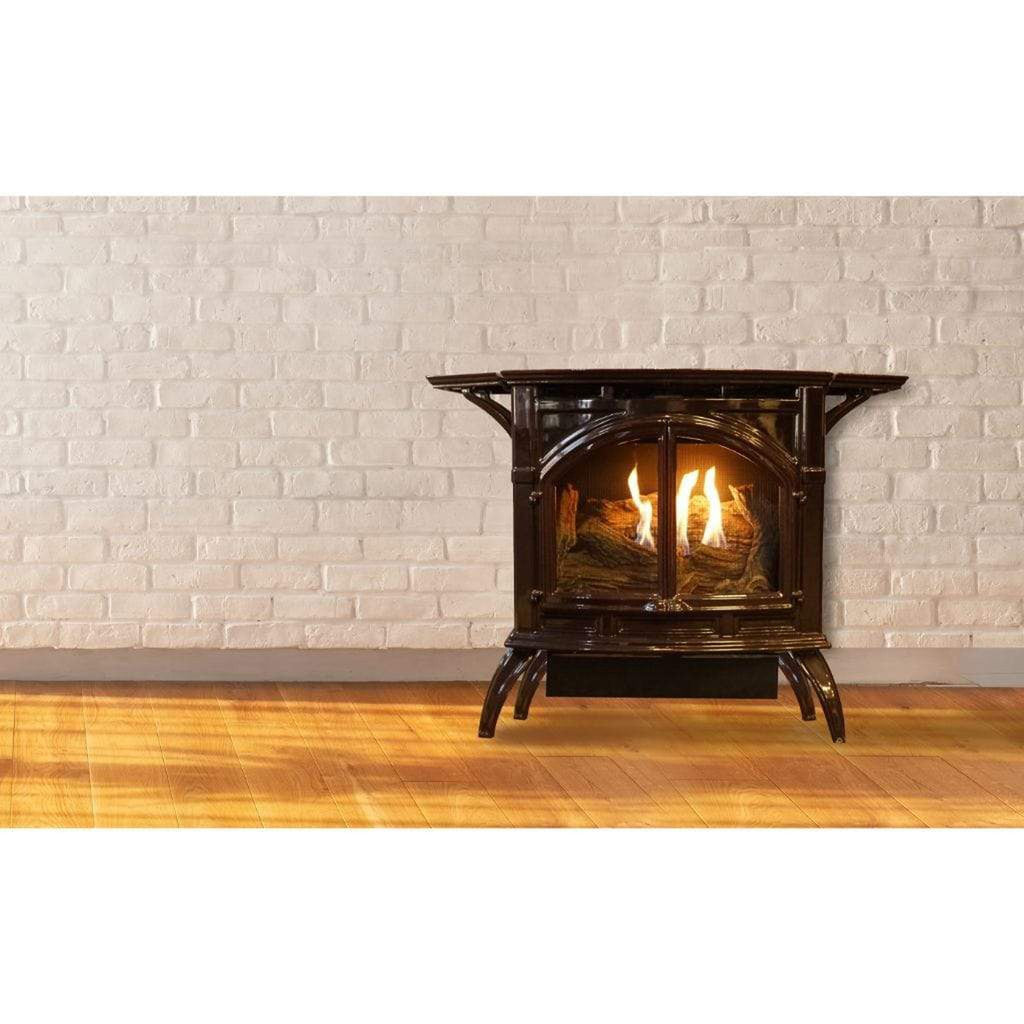

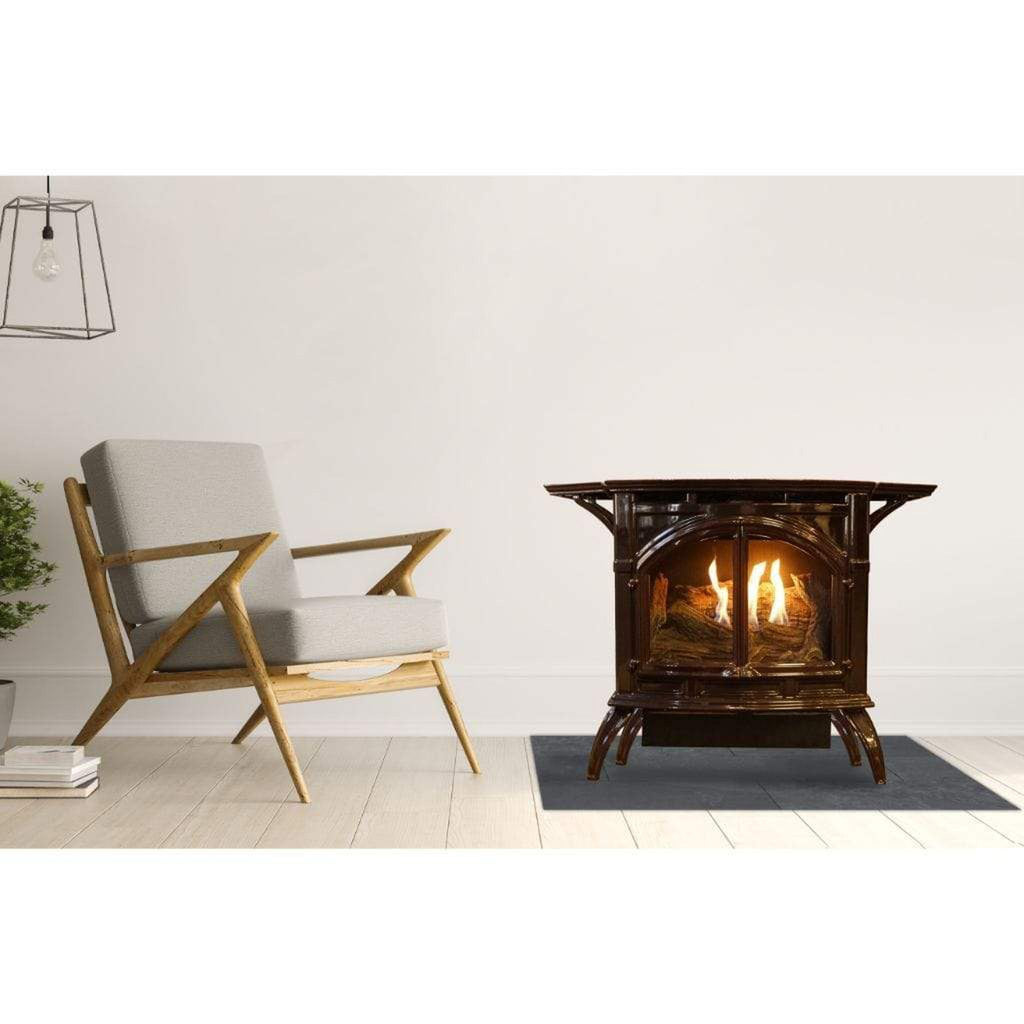

The Empire Spirit 22" 20,000 BTU Porcelain Mahogany Finish Millivolt Control With On/Off Switch, Propane Gas Vent Free Cast Iron Small Stove combines classic cast iron styling with efficient vent-free propane heating. This Empire Spirit Propane Gas stove is designed for freestanding installation and provides up to 20,000 BTUs of heat output, making it a practical choice for supplemental warmth in smaller spaces.
The vent-free Contour burner system uses precision-port technology to create vibrant flames, while ceramic beads inside the burner produce the swirling flame movement associated with a wood fire. A hand-painted ceramic fiber log set and glowing embers complete the realistic fire presentation.
This Empire Spirit Gas stove uses a millivolt ignition system with a standing pilot lit by a pushbutton piezo ignitor. Once lit, the stove operates with a concealed on/off switch, and it can also work with optional remote control systems. Vent-free technology eliminates the need for venting, simplifying installation while offering flexible placement options.
Features
-
Up to 20,000 BTUs of heat output for supplemental propane heating.
-
Vent-free Contour burner system creates vibrant flames with precision-port technology.
-
Hand-painted ceramic fiber log set and glowing embers provide a realistic fire appearance.
-
Millivolt ignition system with standing pilot and pushbutton piezo ignitor.
-
Concealed on/off switch on the back of the stove; compatible with optional remote controls.
-
Porcelain mahogany cast iron finish with fully operable decorative cast iron doors.
Specifications
|
Specification |
Details |
|---|---|
|
Brand |
Empire Hearth |
|
Series |
Spirit Series |
|
Model |
VFD20CC30 |
|
SKU |
VFD20CC30MP |
|
Product Type |
Vent-free cast iron small stove |
|
Fuel Type |
Propane gas |
|
Ignition Type |
Millivolt |
|
Maximum Input |
20,000 BTU/hr |
|
Minimum Input |
16,000 BTU/hr |
|
Vent Type |
Vent free |
|
Installation |
Freestanding |
|
Gas Inlet |
3/8" pipe |
|
Air Shutter Setting |
3/8" |
|
Width |
22" |
|
Height |
24" |
|
Depth |
15" |
|
Finish |
Porcelain mahogany |
|
Included Components |
Cast iron small stove, 6-piece log set, Contour burner, on/off switch |
|
Warranty |
All parts: five-year limited warranty with five-year limited labor warranty; remote controls: one-year limited warranty |
Technical Documents & Manuals
Product FAQs
How much heat does the Empire Spirit VFD20CC30MP produce?
This Empire Spirit vent free stove has a maximum input of 20,000 BTU/hr and a minimum input of 16,000 BTU/hr, making it suitable for supplemental propane heating.
Does this Empire Spirit propane gas stove require venting?
No. The Empire Spirit VFD20CC30MP is a vent-free stove, so it does not require venting. This can simplify installation compared to vented gas stove systems.
What ignition system does this Empire Spirit gas stove use?
This model uses a millivolt ignition system with a standing pilot lit by a pushbutton piezo ignitor. Once the pilot is lit, the stove operates with a concealed on/off switch on the back of the unit.
What is included with the Empire Spirit VFD20CC30MP?
The package includes the cast iron small stove, 6-piece log set, Contour burner, and on/off switch. Accessories such as flex gas lines, remote controls, blower, shelf kits, floor pads, and stone inlay kits are sold separately.
