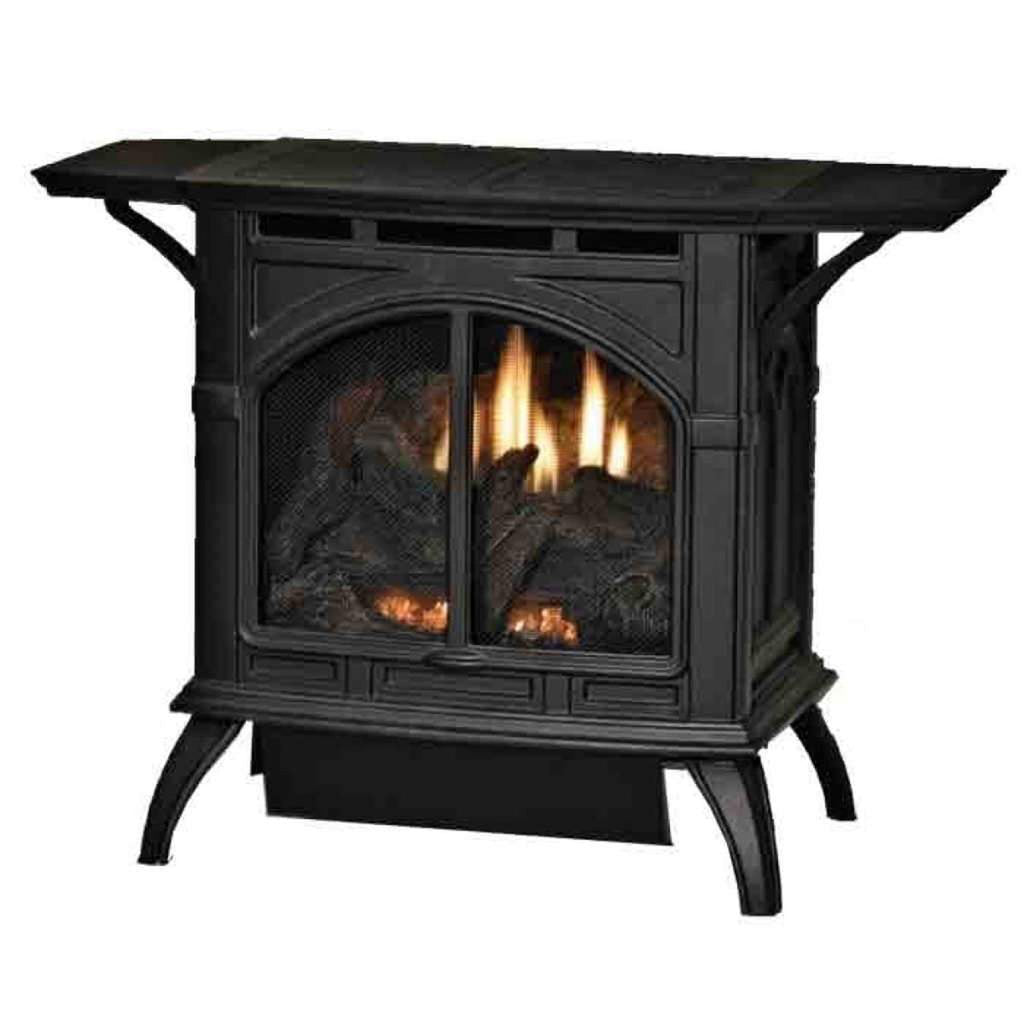

Empire Spirit is a vent free propane gas stove designed to provide efficient supplemental heat in a compact freestanding cast iron design. The Empire Spirit Propane Gas stove VFD10CC30BP combines a porcelain black finish with a millivolt ignition system and concealed on/off switch for straightforward operation. Its vent free installation eliminates the need for venting, offering added flexibility where permitted by local building codes.
This model features Empire's Contour Burner system with precision port technology, ceramic beads, glowing embers, and a six piece hand painted ceramic fiber log set to create realistic flame movement. The fully operable decorative cast iron doors enhance the traditional appearance while maintaining access to the firebox. With an input of 10,000 BTU per hour and up to 99.9% efficiency, this stove is designed to provide reliable supplemental heating. The millivolt system uses a standing pilot lit by a pushbutton piezo ignitor and can operate using the concealed on/off switch or an optional remote control system. The 10,000 BTU configuration is identified by Empire as suitable for bedroom applications where permitted by local code.
Features
- Vent free cast iron stove with porcelain black finish
- 10,000 BTU propane gas heating capacity
- Millivolt ignition with standing pilot and pushbutton piezo ignitor
- Empire Contour Burner system with glowing embers and six piece ceramic fiber log set
- Fully operable decorative cast iron doors
- Compatible with optional remote control systems, blower, shelf kit, and floor pads
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Product Series | Spirit Series |
| Model | VFD10CC30 |
| SKU | VFD10CC30BP |
| Product Type | Vent Free Cast Iron Small Stove |
| Installation | Freestanding |
| Fuel Type | Propane Gas |
| Vent Type | Vent Free |
| Ignition Type | Millivolt |
| Control | Concealed On Off Switch |
| Maximum Input | 10,000 BTU/hr |
| Minimum Input | 10,000 BTU/hr |
| Efficiency | Up to 99.9% |
| Burner | Contour Burner |
| Log Set | Six Piece Hand Painted Ceramic Fiber |
| Finish | Porcelain Black |
| Gas Inlet | 3/8 Inch |
| Air Shutter Setting | 1/4 Inch |
| Width | 22 Inches |
| Height | 24 Inches |
| Depth | 15 Inches |
Warranty
- All stove parts carry a 5 Year Limited Warranty
- 5 Year Limited Labor Warranty
- Remote controls carry a 1 Year Limited Warranty
What's Included
- Cast Iron Small Stove
- Six Piece Log Set
- Contour Burner
- On Off Switch
Optional Accessories (Sold Separately)
- Flex Gas Line
- Remote Control Options
- Automatic Blower
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Corner Floor Pad
- Stone Inlay Kit for Floor Pad
Technical Documents & Manuals
Product FAQs
Q1. What type of gas does the Empire Spirit VFD10CC30BP use?
The Empire Spirit VFD10CC30BP is designed for propane gas operation and features a millivolt ignition system with a standing pilot.
Q2. Does this Empire Spirit stove require a vent?
No. This model is a vent free stove, allowing installation without venting where permitted by local building codes.
Q3. What is included with the Empire Spirit VFD10CC30BP?
The stove includes a cast iron stove, Contour Burner, six piece hand painted ceramic fiber log set, and an on/off switch. Optional accessories such as remote controls, blower, shelf kit, and floor pads are available separately.
