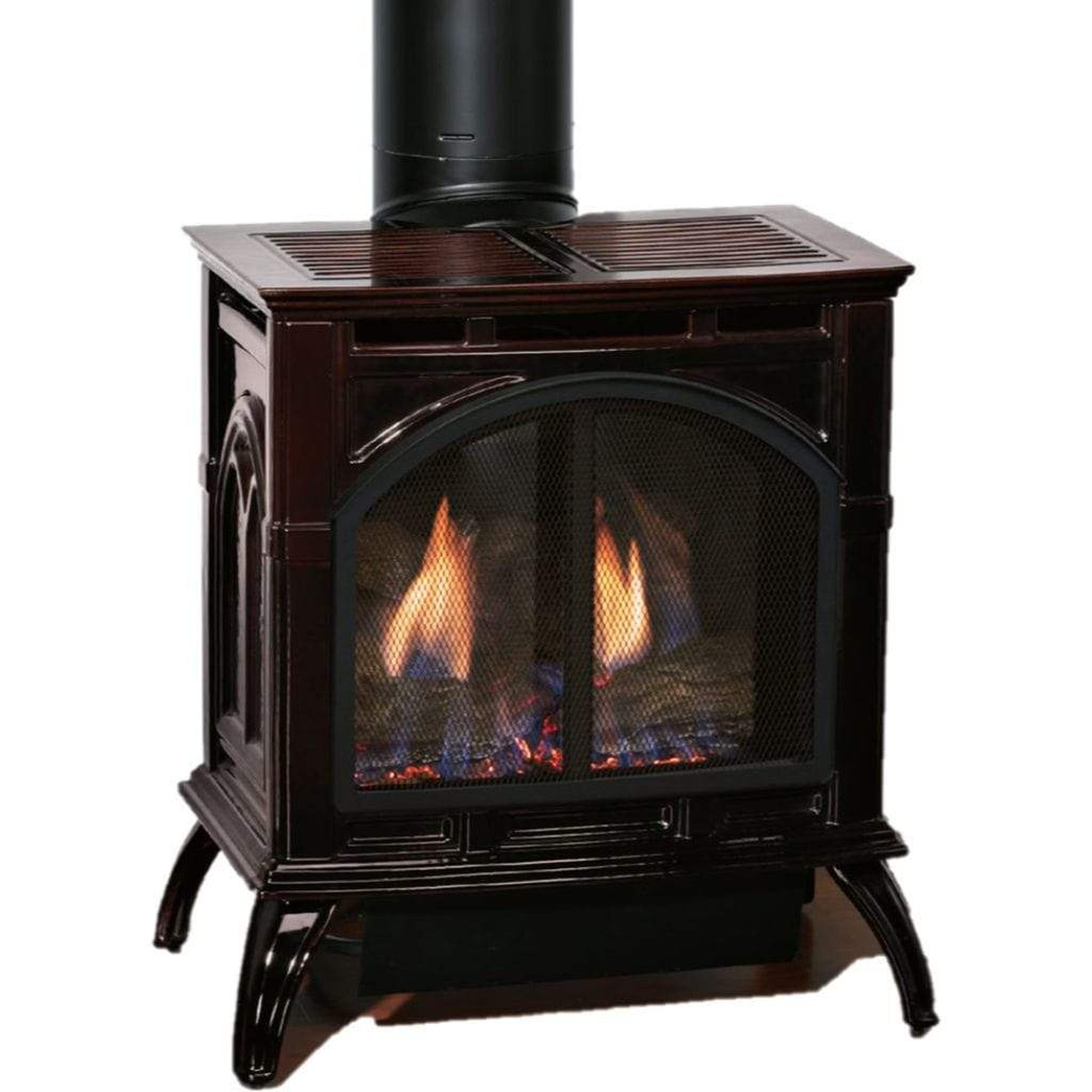

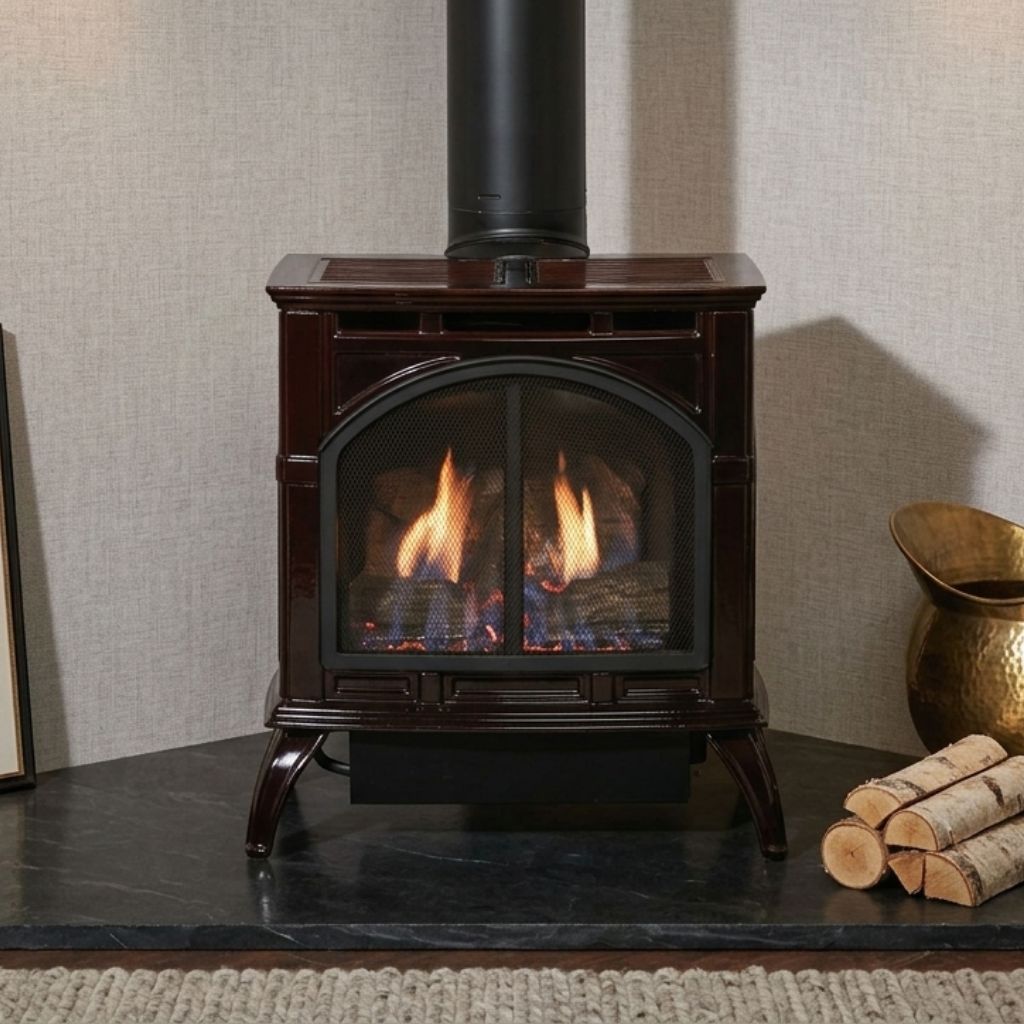

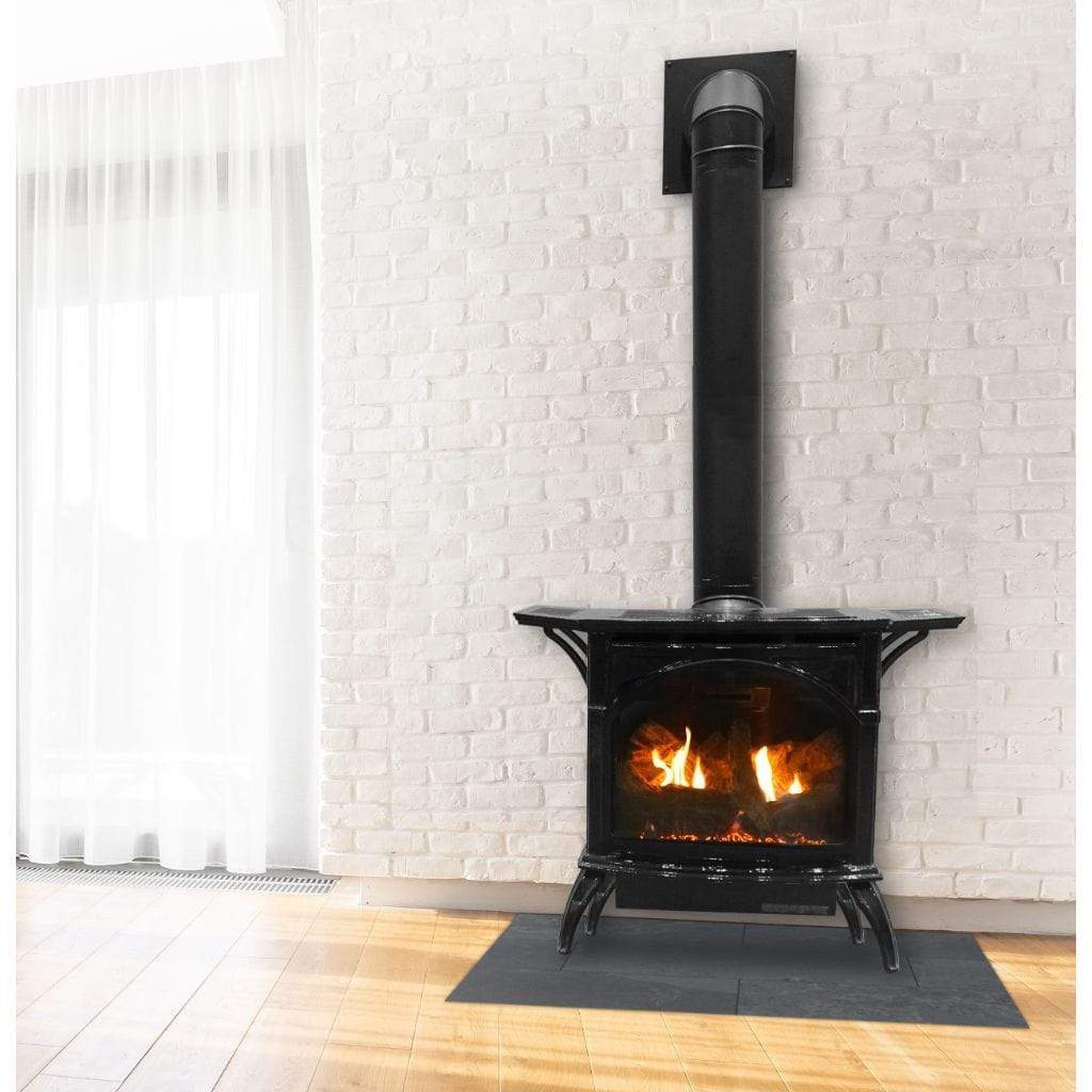

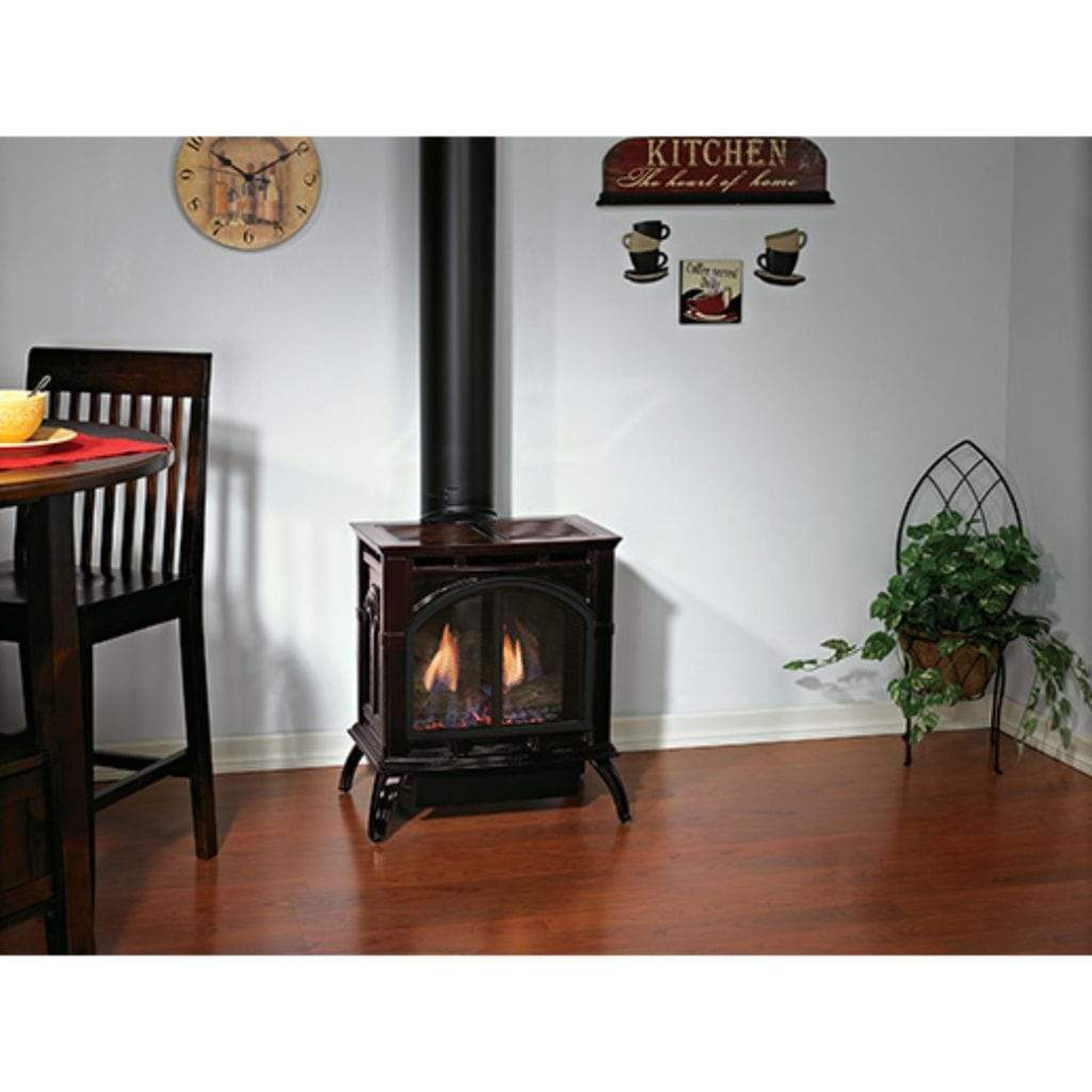

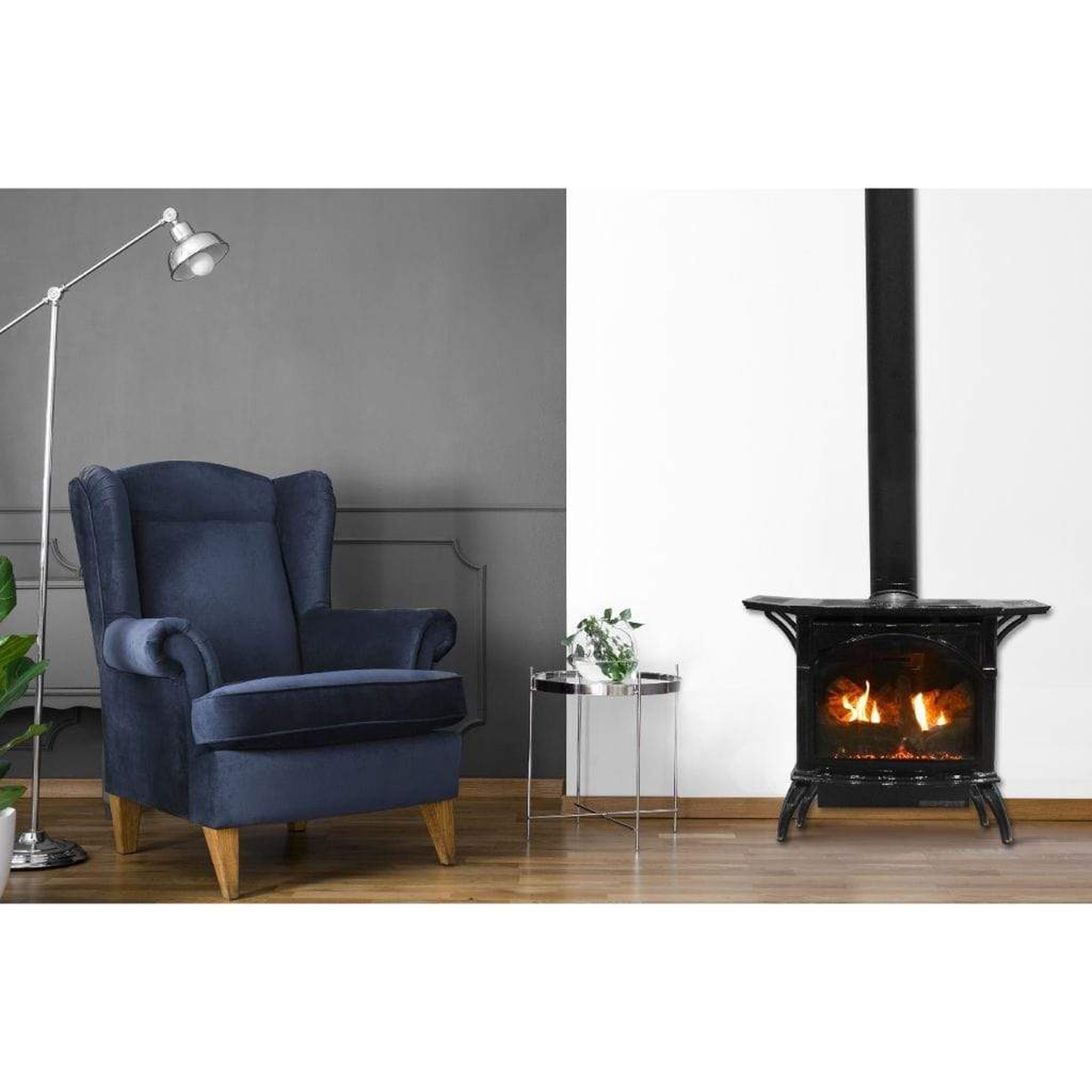

The Empire Spirit 22" Propane Gas Stove is a direct vent cast iron heating appliance designed for dependable home comfort with efficient operation. The Empire Spirit Propane Gas Stove features a porcelain mahogany finish, a millivolt ignition system with an integrated on/off switch, and propane gas operation. Its sealed direct vent design draws combustion air from outdoors while venting exhaust gases outside, helping separate room air from the combustion process.
Inside, the stove features Empire's Slope Glaze Burner system with an expanded ember bed, ceramic beads that create naturally swirling flames, and a hand-painted four-piece ceramic fiber log set for a realistic fire appearance. The glass-front combustion chamber allows heat to transfer into the room while circulating warm air. The millivolt ignition uses a standing pilot lit by a push-button piezo ignitor and can also operate with optional remote control systems. Designed for freestanding installation, this Empire Spirit Gas Stove delivers an input range of 13,500 to 19,500 BTU/hr, making it suitable for use as a primary heat source where appropriate. During winter power outages, most millivolt direct vent systems can continue providing heat without household electricity.
Features
- Direct vent system separates combustion air from indoor room air.
- Millivolt ignition with standing pilot and concealed rear on/off switch.
- Slope Glaze Burner system with expanded ember bed for realistic flame presentation.
- Hand-painted four-piece ceramic fiber log set with glowing ember appearance.
- Freestanding cast iron stove with porcelain mahogany finish.
- Compatible with optional remote controls, thermostat controls, blower, floor pads, and other approved accessories.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire |
| Product Series | Spirit |
| Model | DVP20CC |
| SKU | DVP20CC30MP |
| Fuel Type | Propane Gas |
| Vent Type | Direct Vent |
| Installation | Freestanding |
| Ignition Type | Millivolt |
| Finish | Porcelain Mahogany |
| Maximum Input | 19,500 BTU/hr |
| Minimum Input | 13,500 BTU/hr |
| Vent Size | 4" x 6 5/8" |
| Gas Inlet | 3/8" |
| Orifice | 55 |
| Air Shutter Setting | Full Open |
| Maximum Gas Supply Pressure | 13.0" W.C. (3.237 kPa) |
| Minimum Gas Supply Pressure | 11.0" W.C. (2.739 kPa) |
| Manifold Pressure | 10.0" W.C. (2.490 kPa) |
| Width | 21" |
| Height | 24" |
| Depth | 16" |
Included
- Small Cast Iron Stove
- 4-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Optional Accessories (Sold Separately)
- 45-Degree Elbow (Required)
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Traditional Corner Floor Pad
- Stone Inlay Kit (Required for Floor Pad)
Warranty
- Direct vent combustion chamber: 10-Year Limited Warranty
- Glass: Limited Lifetime Warranty
- Remote controls: 1-Year Limited Warranty
- All other parts: 3-Year Limited Warranty
Technical Documents & Manuals
Product FAQs
Q1. What type of venting does the Empire Spirit DVP20CC30MP use?
The Empire Spirit DVP20CC30MP uses a direct vent system that draws combustion air from outdoors and exhausts combustion by-products outside through a 4" x 6 5/8" vent system.
Q2. What ignition system does this Empire Spirit Propane Gas Stove use?
This model uses a millivolt ignition system with a standing pilot that is lit using a push-button piezo ignitor. It includes a concealed rear on/off switch and is compatible with optional remote control systems.
Q3. What is included with the Empire Spirit Gas Stove?
The stove includes a small cast iron stove, Slope Glaze Burner, four-piece hand-painted ceramic fiber log set, and a fireplace barrier screen. Additional accessories such as a blower, gas conversion kit, floor pads, and remote controls are available separately.
