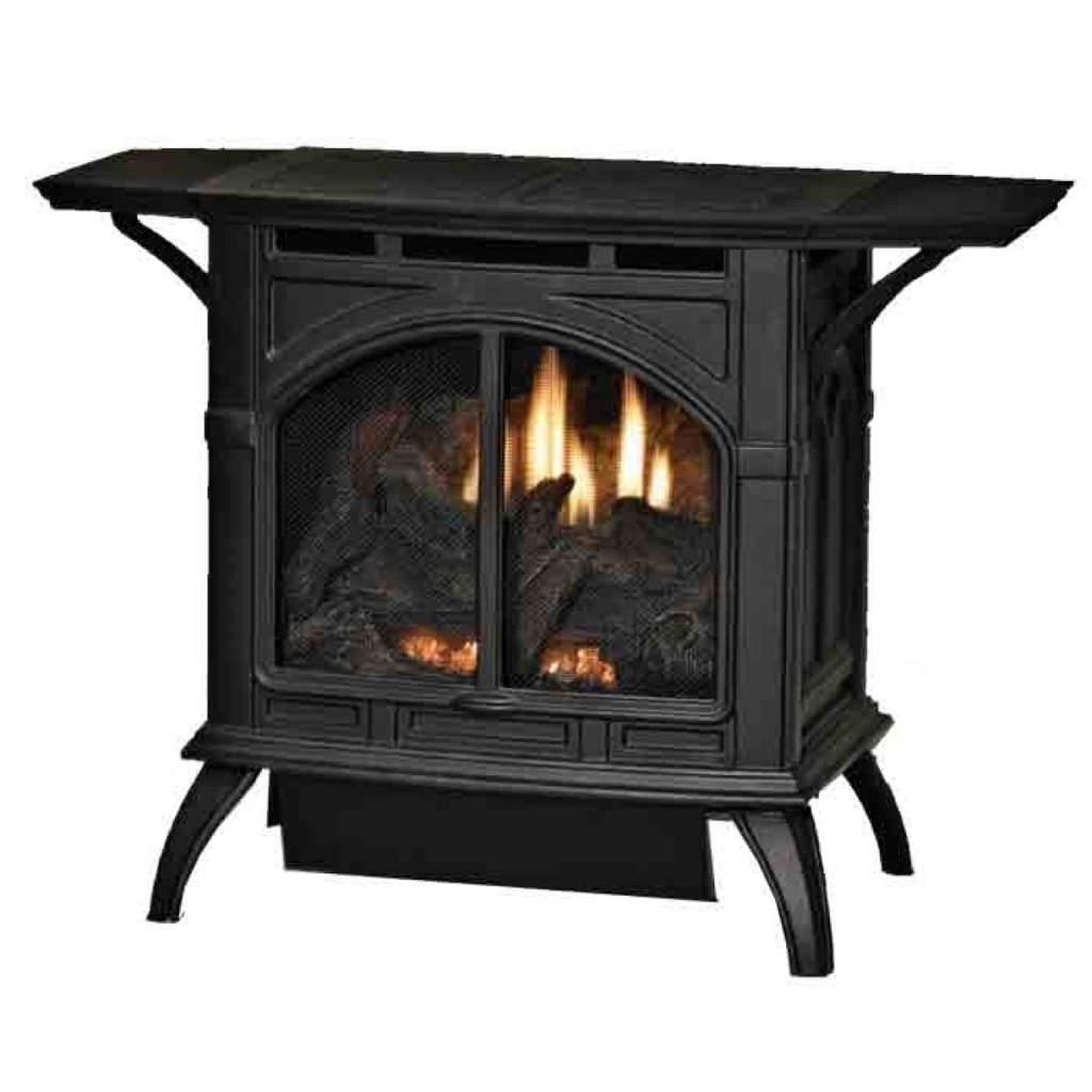

The Empire Spirit Natural Gas stove is a vent-free cast iron stove designed to provide supplemental heat while maintaining the classic appearance of a traditional freestanding stove. The Empire Spirit Vent Free model features an intermittent pilot ignition system that eliminates a continuously burning pilot, helping reduce gas consumption when the appliance is not operating. Its Contour Burner system combines precision-port technology with a hand-painted six-piece ceramic fiber log set and glowing embers to create a realistic flame presentation.
Constructed with richly detailed cast iron and finished in matte black, this stove delivers up to 20,000 BTUs of heating performance. The fully operable decorative cast iron doors enhance its authentic appearance while allowing easy access to the firebox. With vent-free technology, installation is simplified because no venting system is required. The unit also supports optional remote controls, thermostat operation, automatic blower, floor pads, side shelf kits, and other accessories sold separately, allowing users to customize operation and appearance to suit their installation requirements. The Empire Spirit offers up to 99.9% efficiency and is designed for freestanding installation using natural gas.
Features
- Up to 20,000 BTU heating capacity.
- Vent-free design simplifies installation by eliminating the need for venting.
- Intermittent pilot ignition with integrated on/off switch for energy-saving operation.
- Contour Burner system with ceramic fiber log set and glowing embers for realistic flame appearance.
- Richly detailed matte black cast iron construction with fully operable decorative doors.
- Compatible with optional remote controls, thermostat, automatic blower, shelf kits, and floor pads (sold separately).
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Product Series | Spirit |
| Model | VFD20CC70 |
| SKU | VFD20CC70FN |
| Fuel Type | Natural Gas |
| Vent Type | Vent Free |
| Installation | Freestanding |
| Ignition Type | Intermittent Pilot |
| Finish | Matte Black |
| Material | Cast Iron |
| Maximum Input | 20,000 BTU/hr |
| Minimum Input | 14,500 BTU/hr |
| Gas Inlet | 3/8 in. |
| Air Shutter Setting | 1/8 in. |
| Width | 22 in. |
| Height | 24 in. |
| Depth | 15 in. |
Included
- Cast Iron Small Stove
- 6-Piece Log Set
- Contour Burner
- On/Off Switch
Optional Accessories (Sold Separately)
- Flex Gas Line
- Remote Control Options
- Automatic Blower
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Corner Floor Pad
- Stone Inlay Kit (required for floor pad)
Warranty
- Five-year limited warranty on all parts
- Five-year limited labor warranty
- One-year limited warranty on remote controls
Technical Documents & Manuals
Product FAQs
Q1. What type of gas does the Empire Spirit VFD20CC70FN use?
The Empire Spirit VFD20CC70FN is designed for natural gas installations and is configured for freestanding use.
Q2. Does the Empire Spirit VFD20CC70FN require a vent?
No. This model uses vent-free technology, allowing installation without a venting system as specified by the manufacturer and local installation codes.
Q3. Can the Empire Spirit VFD20CC70FN be operated with a remote control?
Yes. The stove includes an on/off switch and is compatible with optional remote control systems and thermostat controls, which are sold separately.
