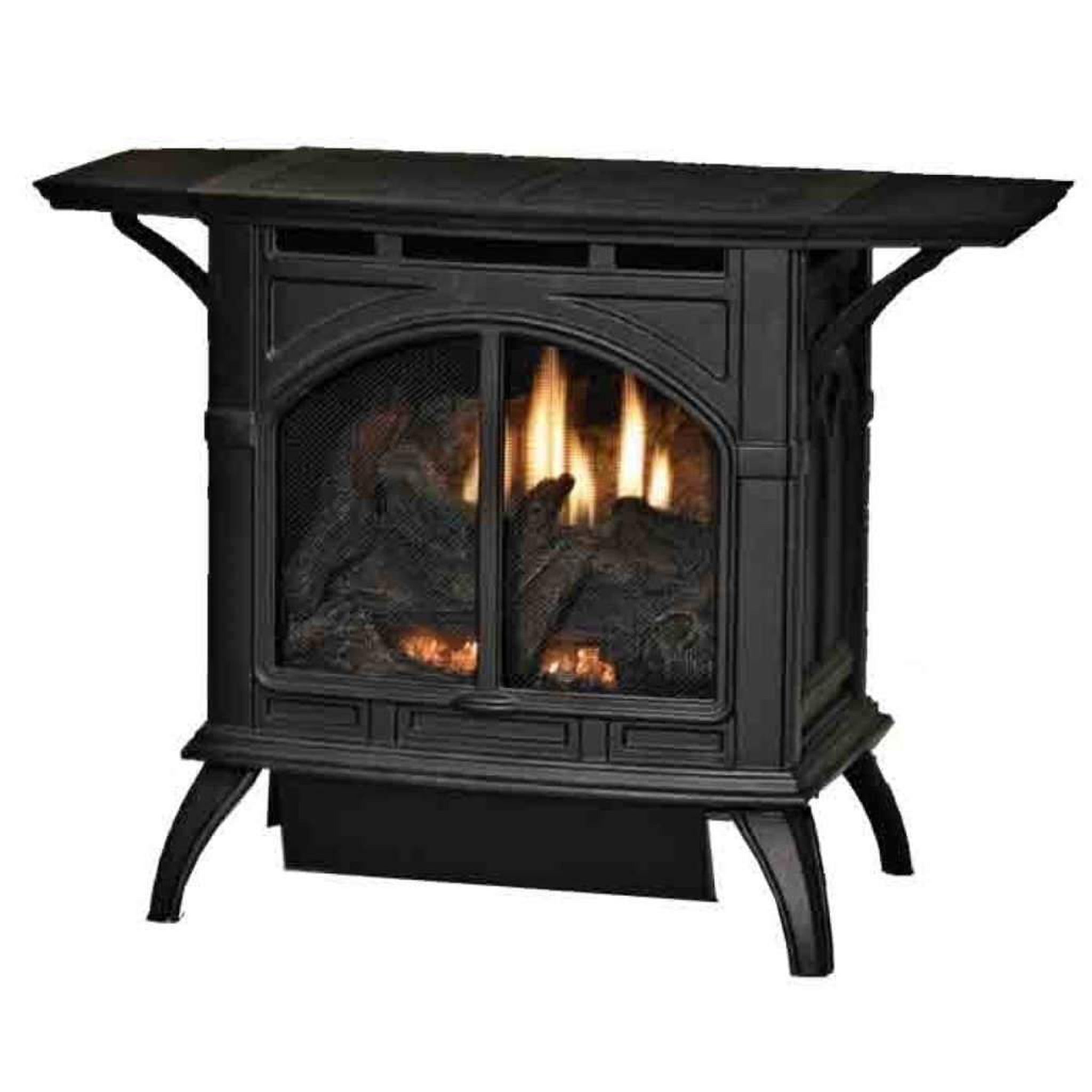

The Empire Spirit 22 inch Empire Spirit Natural Gas stove is a vent free cast iron heating appliance designed for efficient supplemental warmth in a compact freestanding design. Featuring a matte black finish and millivolt ignition with an integrated on/off switch, this Empire Spirit Gas stove operates without household electricity once the standing pilot is lit, making it capable of providing heat during many power outages. The vent free Contour Burner system uses precision port technology, ceramic beads, hand painted ceramic fiber logs, and glowing embers to create a realistic flame presentation.
This Empire Spirit Natural Gas Vent Free Cast Iron stove delivers up to 10,000 BTU of heat and offers installation versatility because vent free technology eliminates the need for a venting system. Decorative cast iron doors enhance the traditional appearance while maintaining full functionality. The unit is compatible with optional remote controls or thermostat controls, allowing flexible operation. Optional accessories such as a blower, cast iron shelf kit, floor pads, and stone inlay kit are available separately, allowing the stove to be customized to suit different installation preferences.
Features
- Delivers up to 10,000 BTU heating capacity.
- Vent free design simplifies installation by eliminating venting requirements.
- Millivolt ignition system with concealed rear on/off switch.
- Contour Burner system with ceramic beads, glowing embers, and hand painted ceramic fiber logs for realistic flame appearance.
- Freestanding cast iron construction with decorative operable doors and matte black finish.
- Compatible with optional remote controls, thermostat controls, blower, shelf kit, and floor pad accessories.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Series | Spirit |
| Model | VFD10CC30 |
| SKU | VFD10CC30FN |
| Product Type | Vent Free Cast Iron Small Stove |
| Fuel Type | Natural Gas |
| Vent Type | Vent Free |
| Installation | Freestanding |
| Ignition Type | Millivolt |
| Control | On/Off Switch |
| Maximum Input | 10,000 BTU/hr |
| Minimum Input | 10,000 BTU/hr |
| Finish | Matte Black |
| Gas Inlet | 3/8 Inch |
| Air Shutter Setting | 1/16 Inch |
| Width | 22 Inches |
| Height | 24 Inches |
| Depth | 15 Inches |
| Included | Cast Iron Small Stove, 6 Piece Log Set, Contour Burner, On/Off Switch |
| Optional Accessories | Flex Gas Line, Remote Controls, Automatic Blower, Cast Iron Shelf Kit, Traditional Floor Pad, Corner Floor Pad, Stone Inlay Kit |
| Warranty | Five year limited parts warranty, Five year limited labor warranty, One year limited warranty on remote controls |
Technical Documents & Manuals
Product FAQs
Q1. What fuel does the Empire Spirit VFD10CC30FN use?
The Empire Spirit VFD10CC30FN is designed for natural gas operation and features a millivolt ignition system with an integrated on/off switch.
Q2. Does this Empire Spirit Gas stove require a vent?
No. This model is a vent free stove, so it does not require a venting system. Always install and operate the unit according to local building codes and manufacturer instructions.
Q3. What is included with the Empire Spirit Natural Gas Vent Free Cast Iron stove?
The stove includes the cast iron stove, a 6-piece ceramic fiber log set, the Contour Burner system, and an on/off switch. Optional accessories such as remote controls, an automatic blower, shelf kit, and floor pads are available separately.
