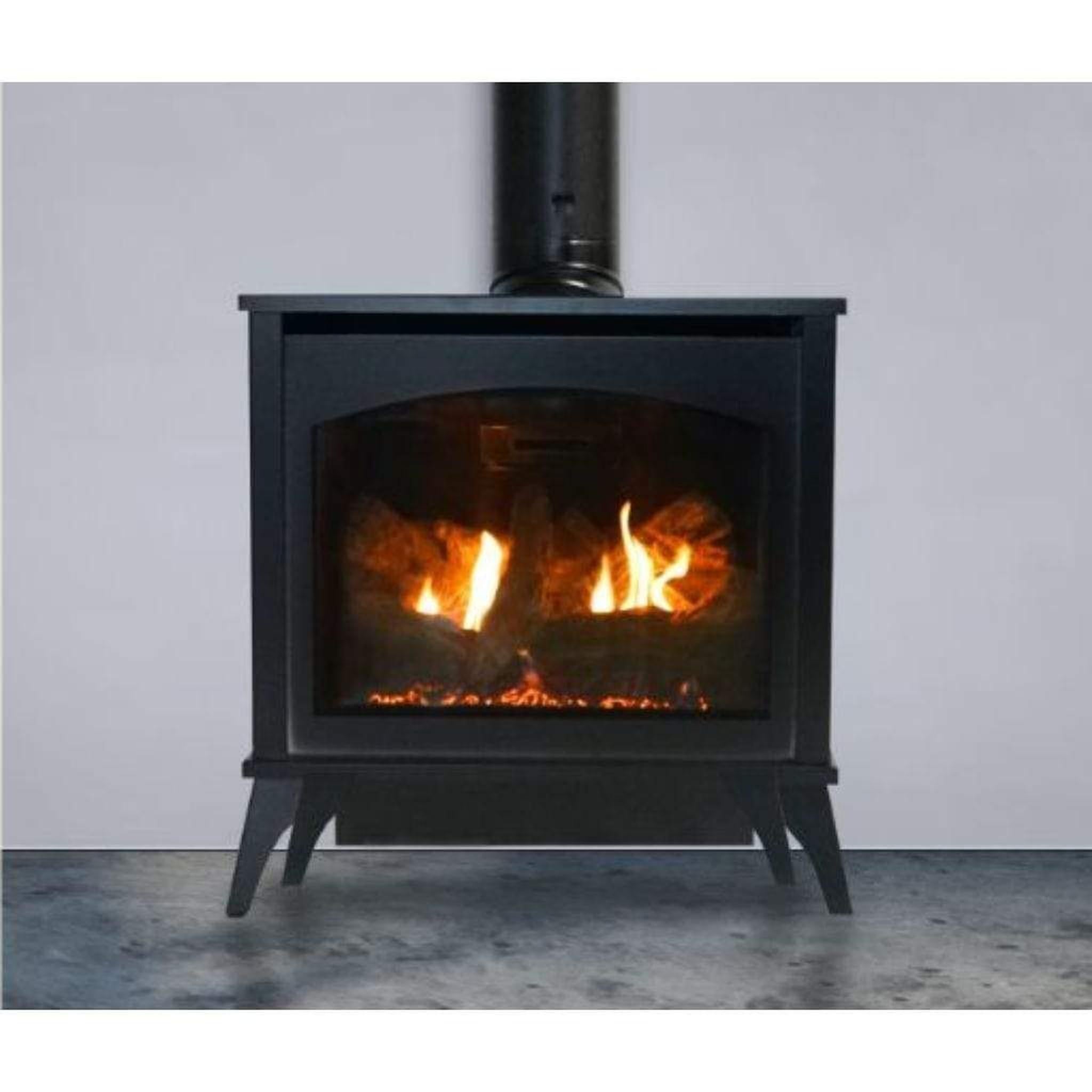

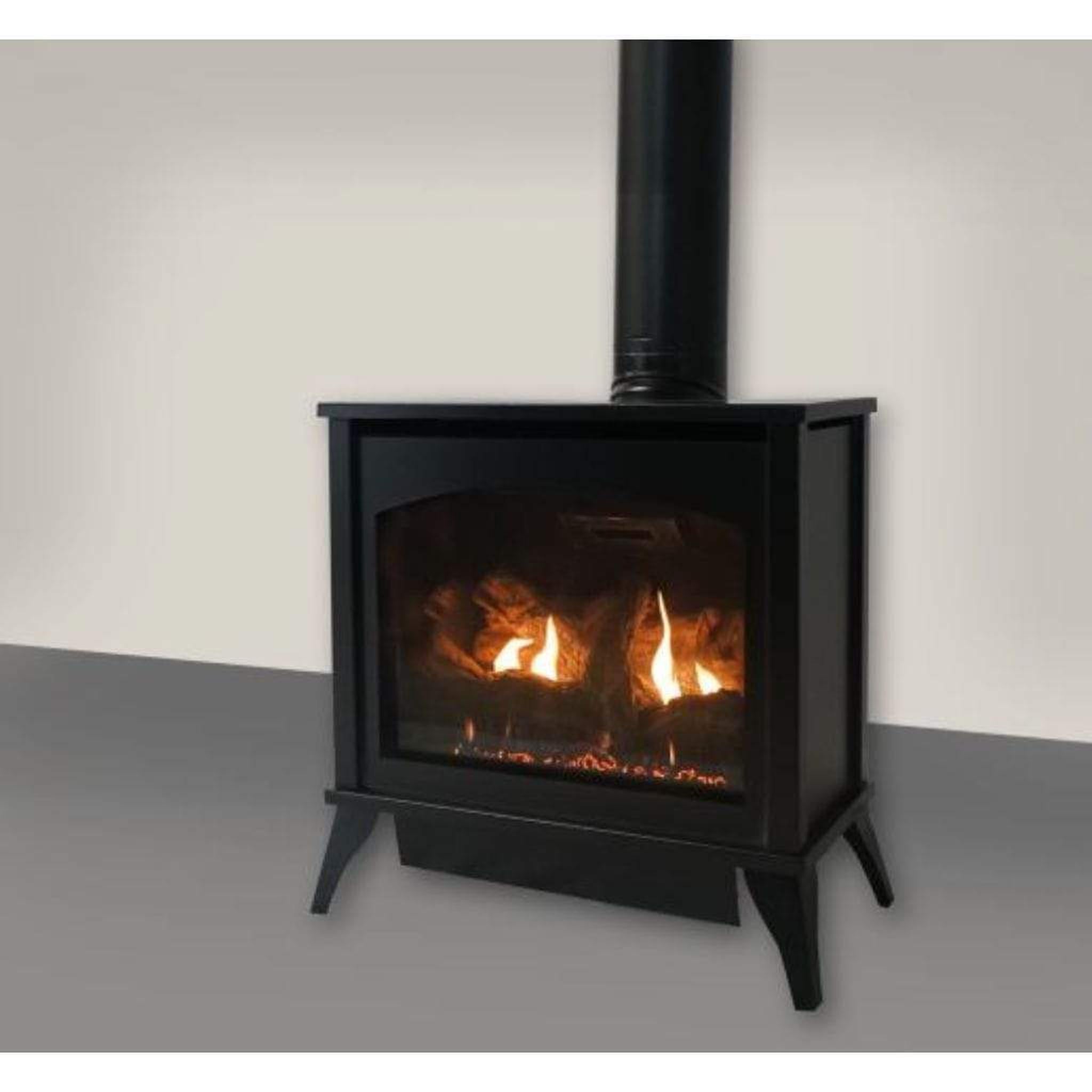

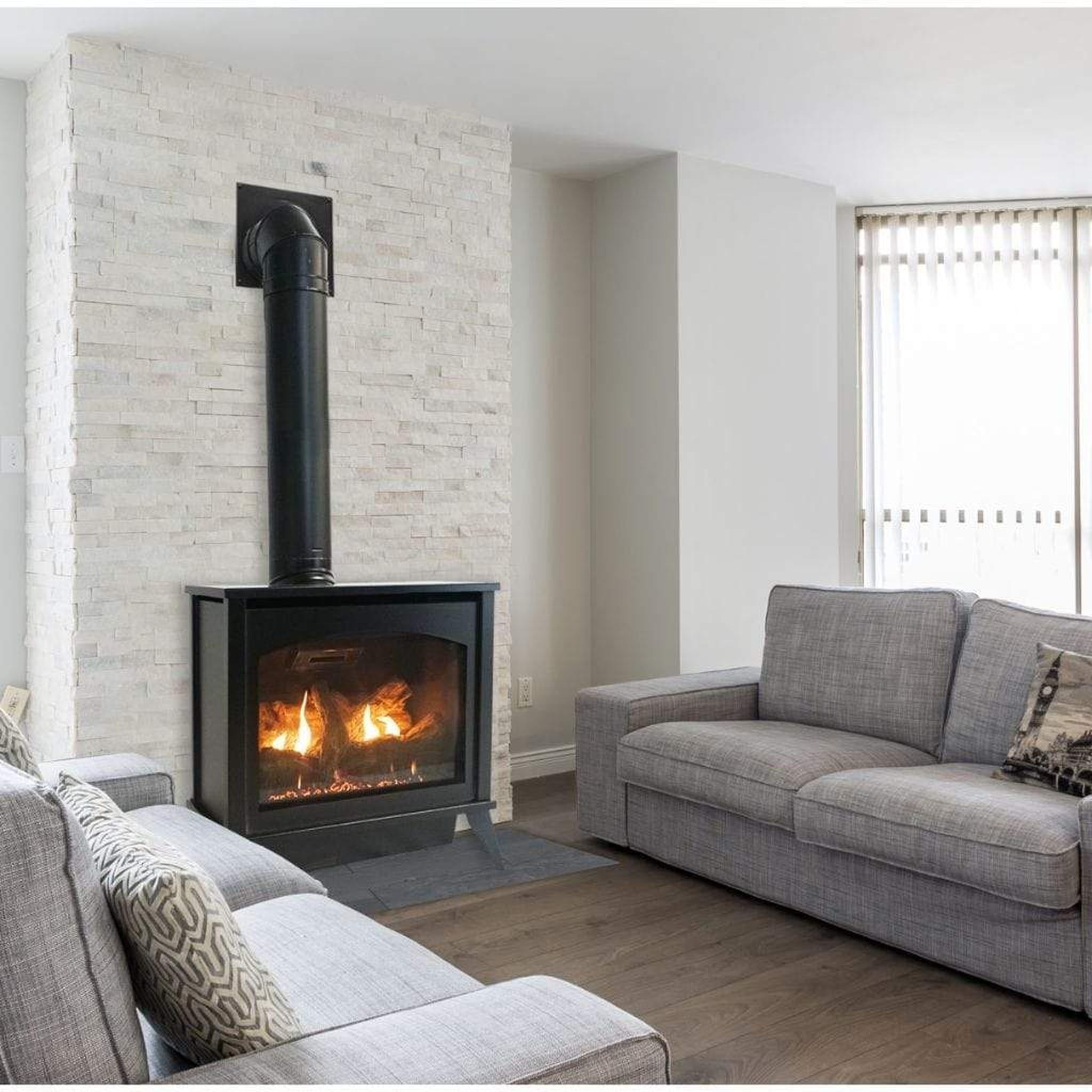

The Empire Spirit Natural Gas stove is a compact direct vent heating solution designed for dependable performance and efficient room heating. The Empire Hearth Spirit Direct Vent Small Steel Stove DVP20MS30FN features a millivolt ignition system with a standing pilot that is lit using a push-button piezo ignitor and operated with the built-in on/off switch or an optional remote control system. Its sealed direct vent design draws combustion air from outdoors while venting exhaust gases outside, helping separate indoor air from the combustion process.
This Empire Spirit Gas stove includes Empire's Slope Glaze Burner system with an expanded ember bed, ceramic beads that create naturally swirling flames, and a hand-painted ceramic fiber log set for a realistic fire appearance. The freestanding steel stove delivers an input range of 13,500 to 19,500 BTU/hr, making it suitable for heating a variety of living spaces. The direct vent configuration can provide heat during winter power outages when properly installed and offers efficient thermal transfer through the glass combined with natural air circulation. The package includes the stove, four-piece log set, fireplace barrier screen, and Slope Glaze Burner, while several accessories and installation components are available separately.
Features
- Direct vent stove design separates room air from combustion air.
- Millivolt ignition system with standing pilot and push-button piezo ignitor.
- Operates using the integrated on/off switch or optional remote control system.
- Slope Glaze Burner with expanded ember bed creates natural-looking flames.
- Hand-painted ceramic fiber four-piece log set enhances the realistic fire appearance.
- Freestanding steel stove provides 13,500–19,500 BTU/hr heating performance.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Product Series | Spirit Series |
| Model | DVP20MS |
| SKU | DVP20MS30FN |
| Product Type | Direct Vent Small Steel Stove |
| Installation | Freestanding |
| Fuel Type | Natural Gas |
| Ignition Type | Millivolt |
| Vent Type | Direct Vent |
| Vent Size | 4 x 6 5/8 in. |
| Maximum Input | 19,500 BTU/hr |
| Minimum Input | 13,500 BTU/hr |
| Gas Inlet | 3/8 in. |
| Orifice | 2.15 mm |
| Air Shutter Setting | 1/8 in. |
| Maximum Gas Supply Pressure | 10.5 in. W.C. (2.614 kPa) |
| Minimum Gas Supply Pressure | 4.5 in. W.C. (1.121 kPa) |
| Manifold Pressure | 3.5 in. W.C. (0.872 kPa) |
| Width | 22 in. |
| Height | 23 in. |
| Depth | 16 in. |
Included
- Small Steel Stove
- Four-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Sold Separately
- 45-Degree Elbow (Required)
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Traditional Floor Pad
- Traditional Corner Floor Pad
- Stone Inlay Kit for Floor Pad
Warranty
| Component | Warranty |
|---|---|
| Direct Vent Combustion Chamber | 10-Year Limited Warranty |
| Glass | Limited Lifetime Warranty |
| Remote Controls | 1-Year Limited Warranty |
| All Other Parts | 3-Year Limited Warranty |
