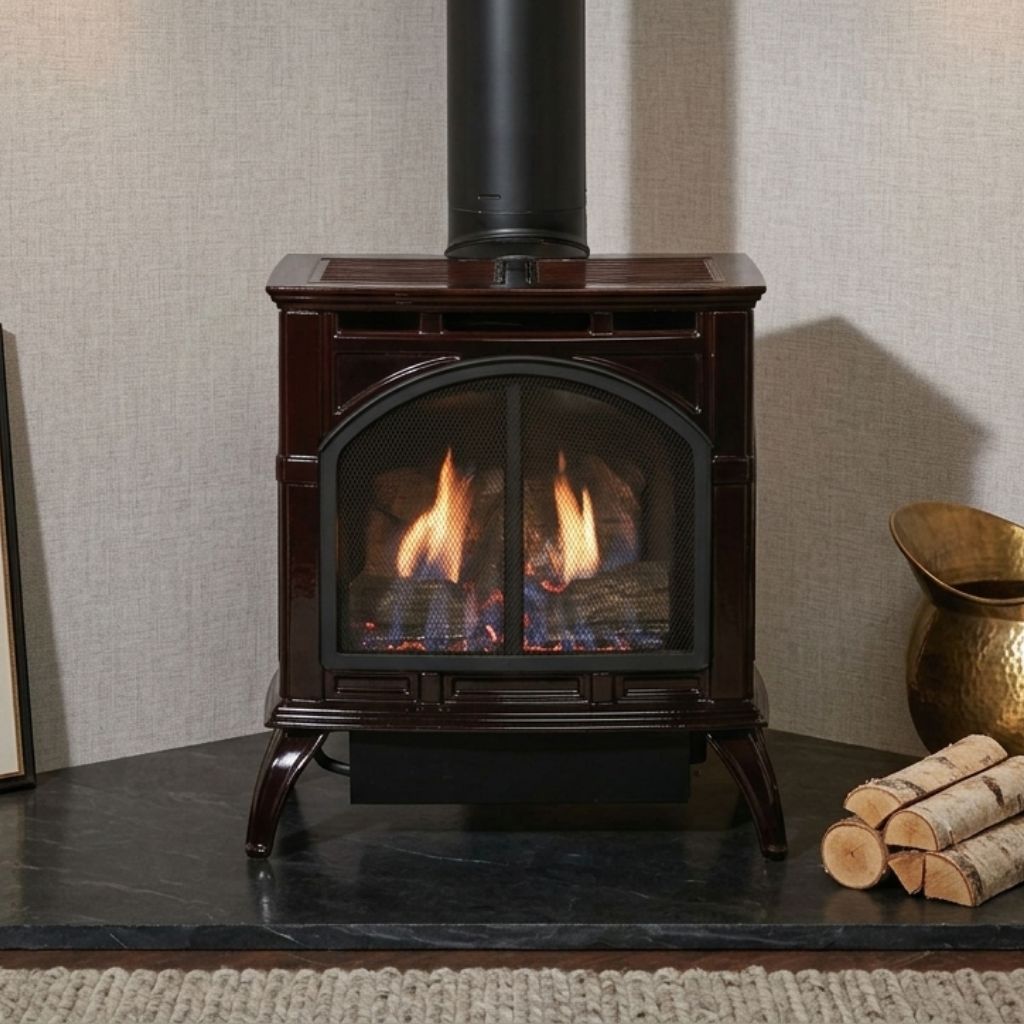

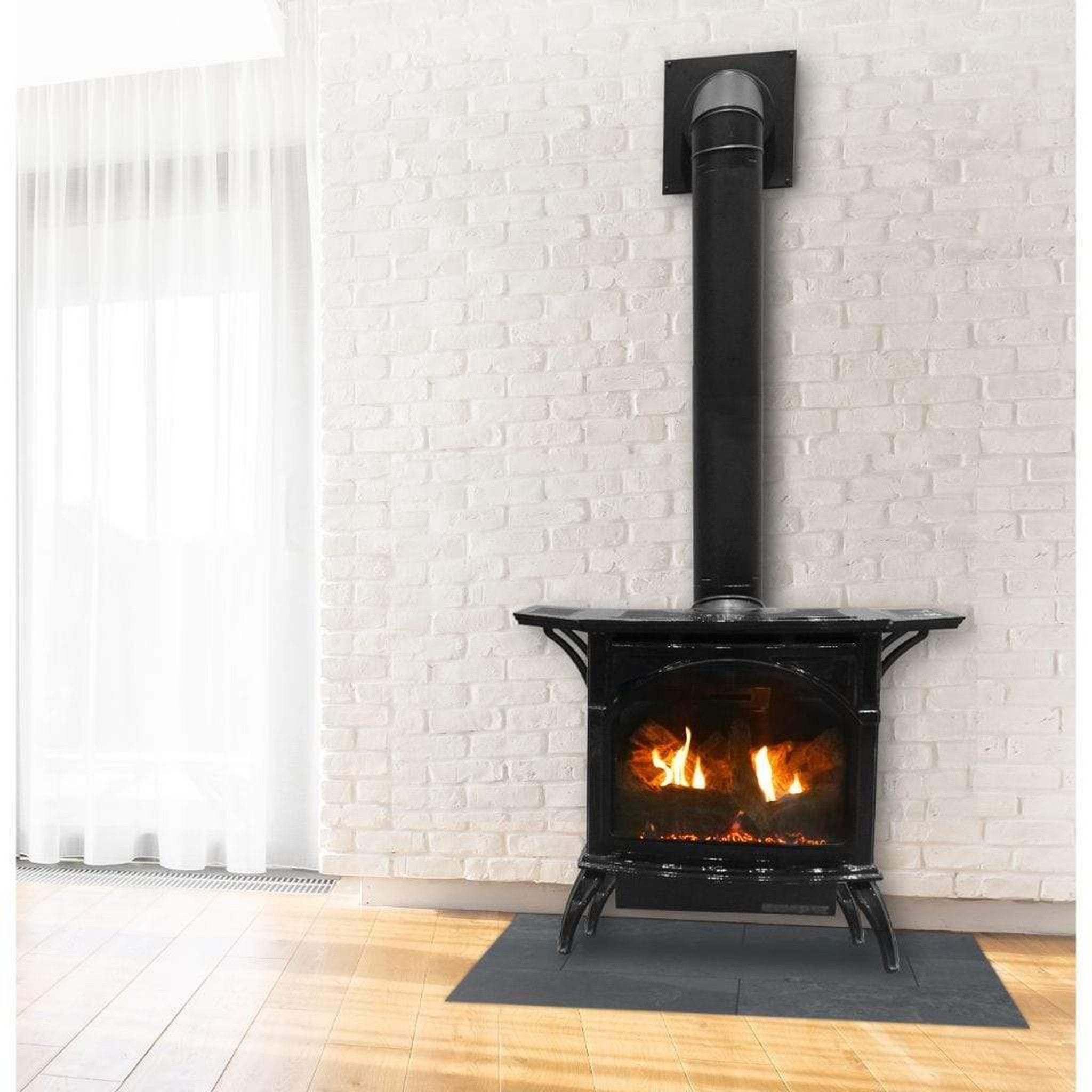

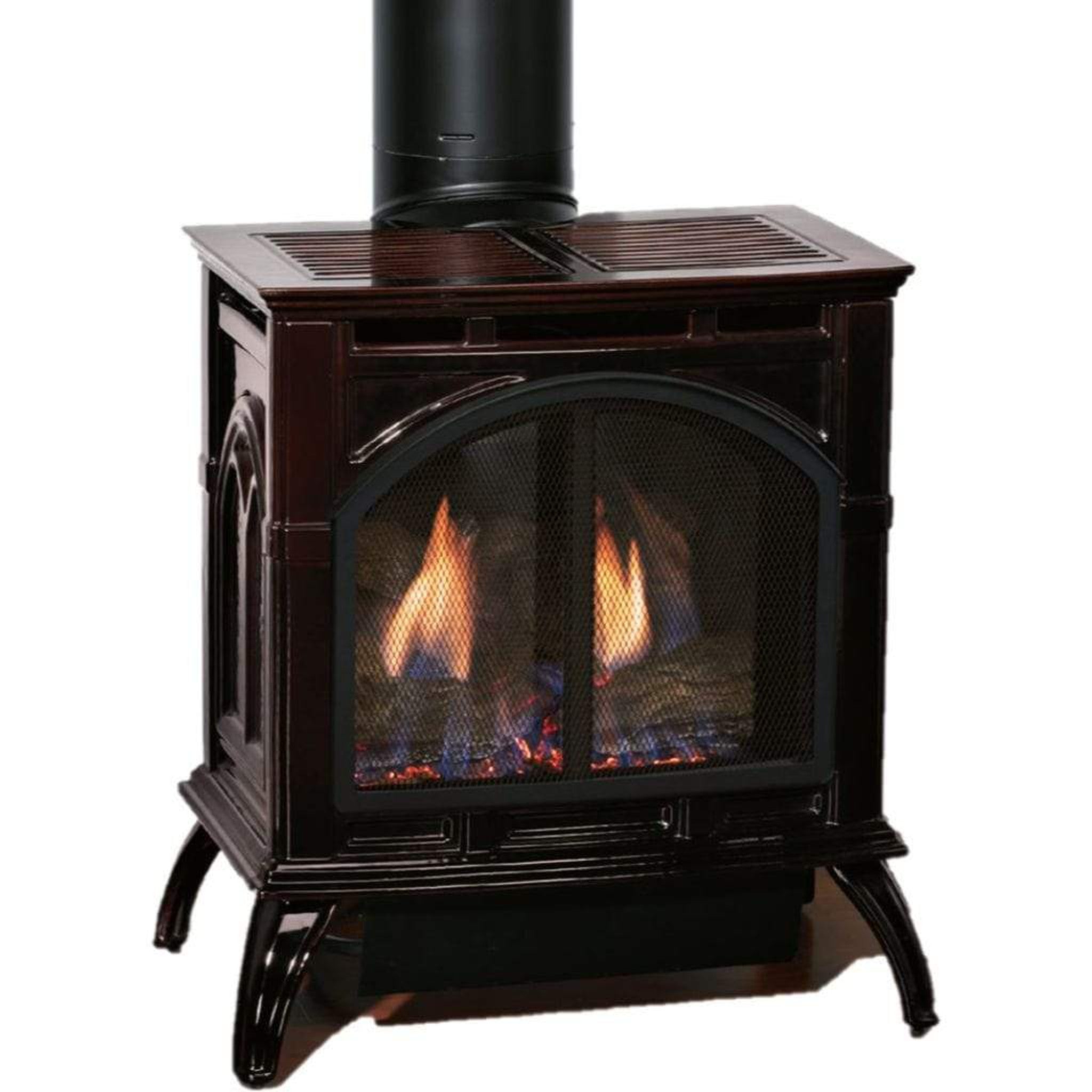

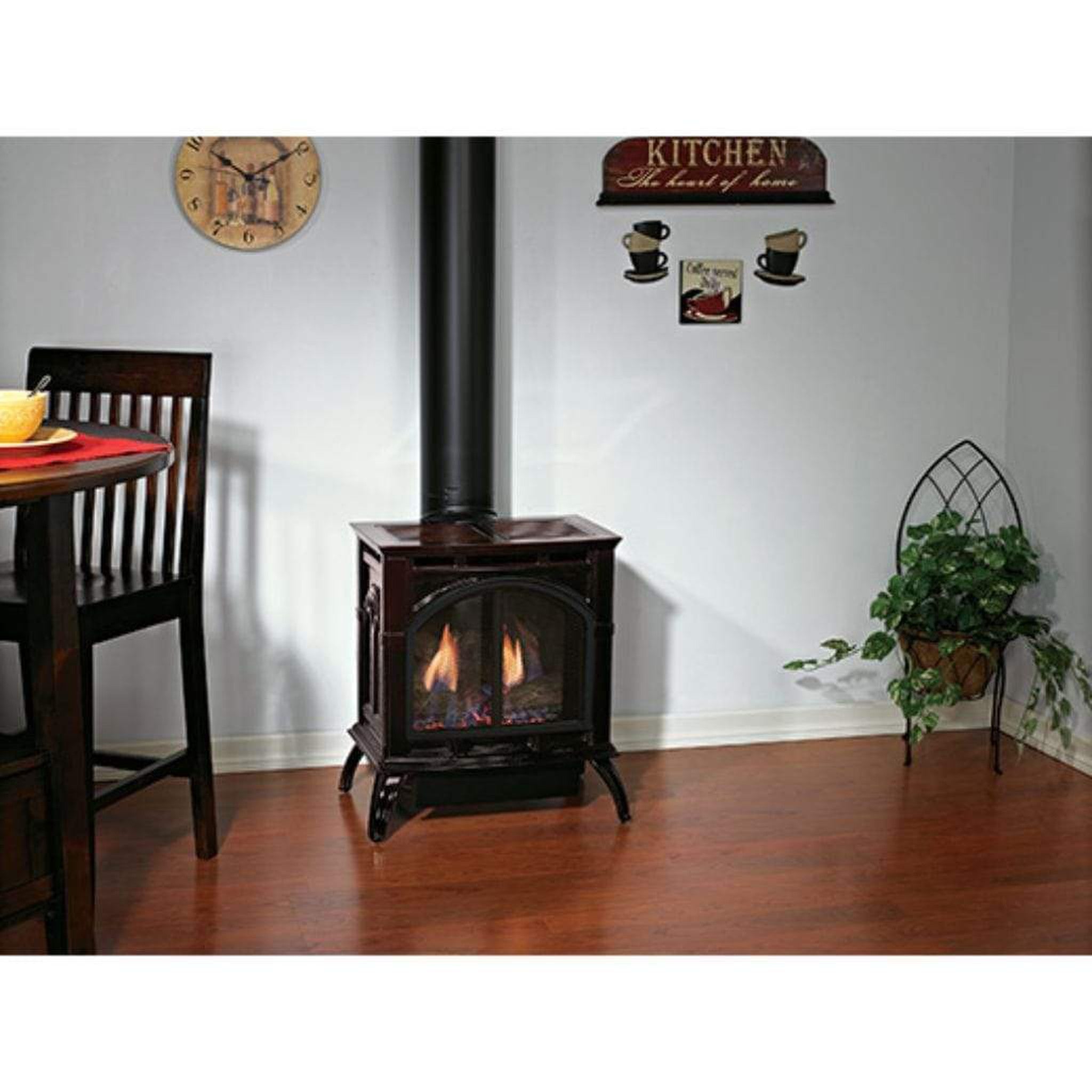

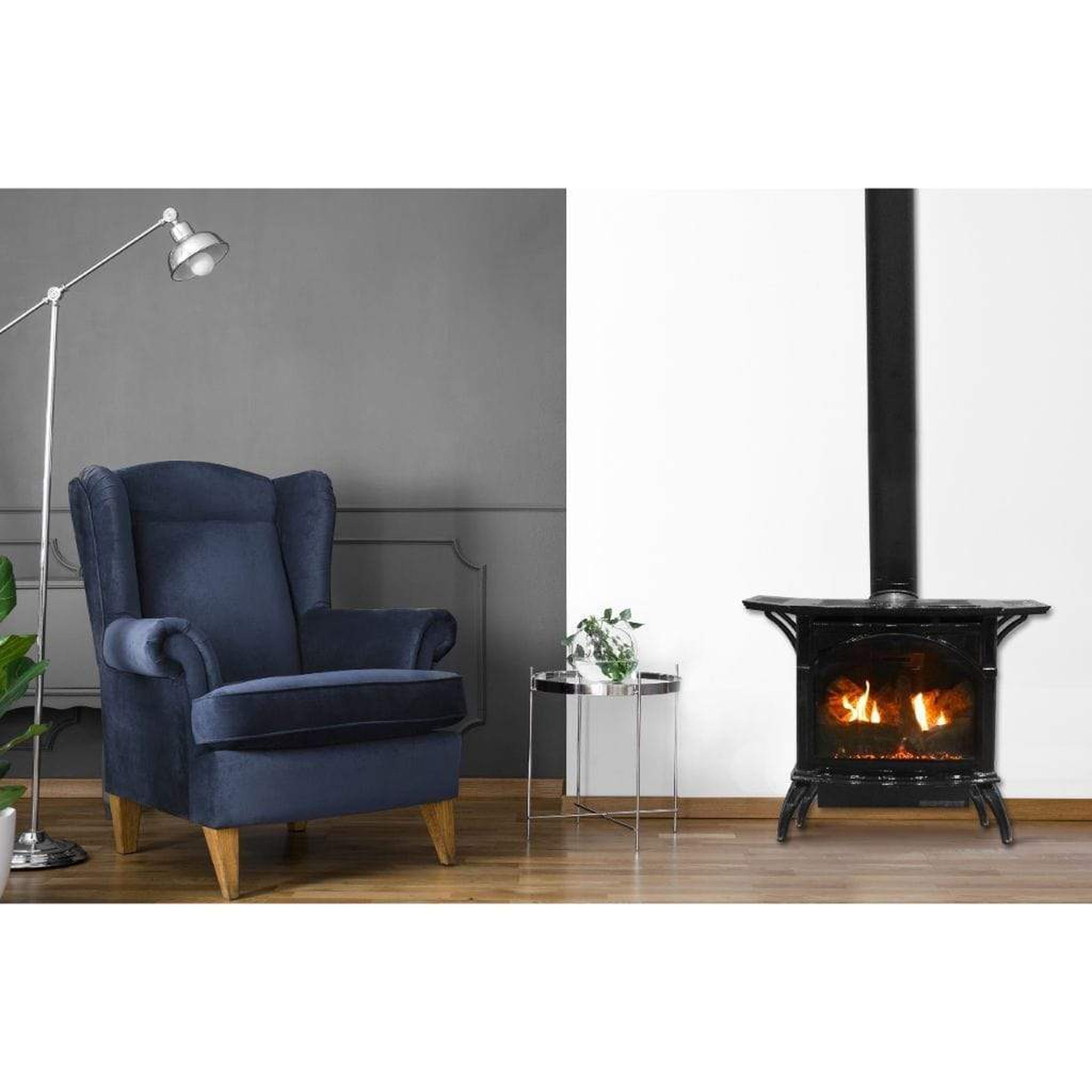

The Empire Spirit Natural Gas Stove delivers dependable direct vent heating in a compact cast iron design for residential spaces. The Empire Spirit 22" Natural Gas Stove features an intermittent pilot ignition system that lights the pilot only when heat is needed, helping reduce continuous pilot gas consumption compared to a standing pilot system. Its sealed direct vent design draws combustion air from outdoors while safely exhausting combustion gases outside, helping maintain indoor air quality.
This freestanding stove is equipped with Empire's Slope Glaze Burner system, which combines ceramic beads, glowing embers, and a hand-painted ceramic fiber log set to produce natural-looking flames. With a heating input range of 13,500 to 19,500 BTU/hr, it provides consistent heat while the glass front allows radiant warmth to enter the room. The unit can also operate with an optional remote control or thermostat for added convenience. Finished in matte black cast iron, the Empire Spirit DVP20CC70FN combines traditional styling with modern direct vent technology while offering installation flexibility through a 4 x 6 5/8 inch venting system.
Features
- Direct vent system separates combustion air from indoor room air.
- Intermittent pilot ignition lights only when needed for improved energy efficiency.
- Slope Glaze Burner system creates realistic wood fire style flames.
- Hand-painted ceramic fiber log set with glowing ember bed enhances fire appearance.
- Freestanding matte black cast iron construction with compact footprint.
- Compatible with optional remote controls, thermostat, blower, and additional accessories.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Series | Spirit |
| Model | DVP20CC |
| SKU | DVP20CC70FN |
| Fuel Type | Natural Gas |
| Installation | Freestanding |
| Vent Type | Direct Vent |
| Vent Size | 4 x 6 5/8 in. |
| Ignition | Intermittent Pilot |
| Finish | Matte Black |
| Maximum Input | 19,500 BTU/hr |
| Minimum Input | 13,500 BTU/hr |
| Gas Inlet | 3/8 in. |
| Orifice | 2.15 mm |
| Air Shutter Setting | 1/8 in. |
| Maximum Gas Supply Pressure | 10.5 in. W.C. (2.614 kPa) |
| Minimum Gas Supply Pressure | 4.5 in. W.C. (1.121 kPa) |
| Manifold Pressure | 3.5 in. W.C. (0.872 kPa) |
| Width | 21 in. |
| Height | 24 in. |
| Depth | 16 in. |
Included
- Small Cast Iron Stove
- 4-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Optional Accessories (Sold Separately)
- 45 Degree Elbow (Required)
- RCK20 Replacement Control Cover (Required for RVKN or RVKP)
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Traditional Corner Floor Pad
- Stone Inlay Kit (Required for Floor Pad)
Warranty
- Limited lifetime warranty on glass.
- Ten-year limited warranty on the combustion chamber.
- Three-year limited warranty on all other parts.
- One-year limited warranty on remote controls.
Technical Documents & Manuals
Product FAQs
Does the Empire Spirit DVP20CC70FN require outside venting?
Yes. This model uses a direct vent system that draws combustion air from outdoors and exhausts combustion gases outside through a 4 x 6 5/8 inch vent system.
What type of ignition does the Empire Spirit 22 Natural Gas Stove use?
The stove uses an intermittent pilot ignition system. The pilot lights only when the unit is turned on, rather than remaining continuously lit.
Can the Empire Spirit DVP20CC70FN be operated with a remote control?
Yes. The stove is compatible with optional Empire remote control systems and optional thermostat controls, which are sold separately.
