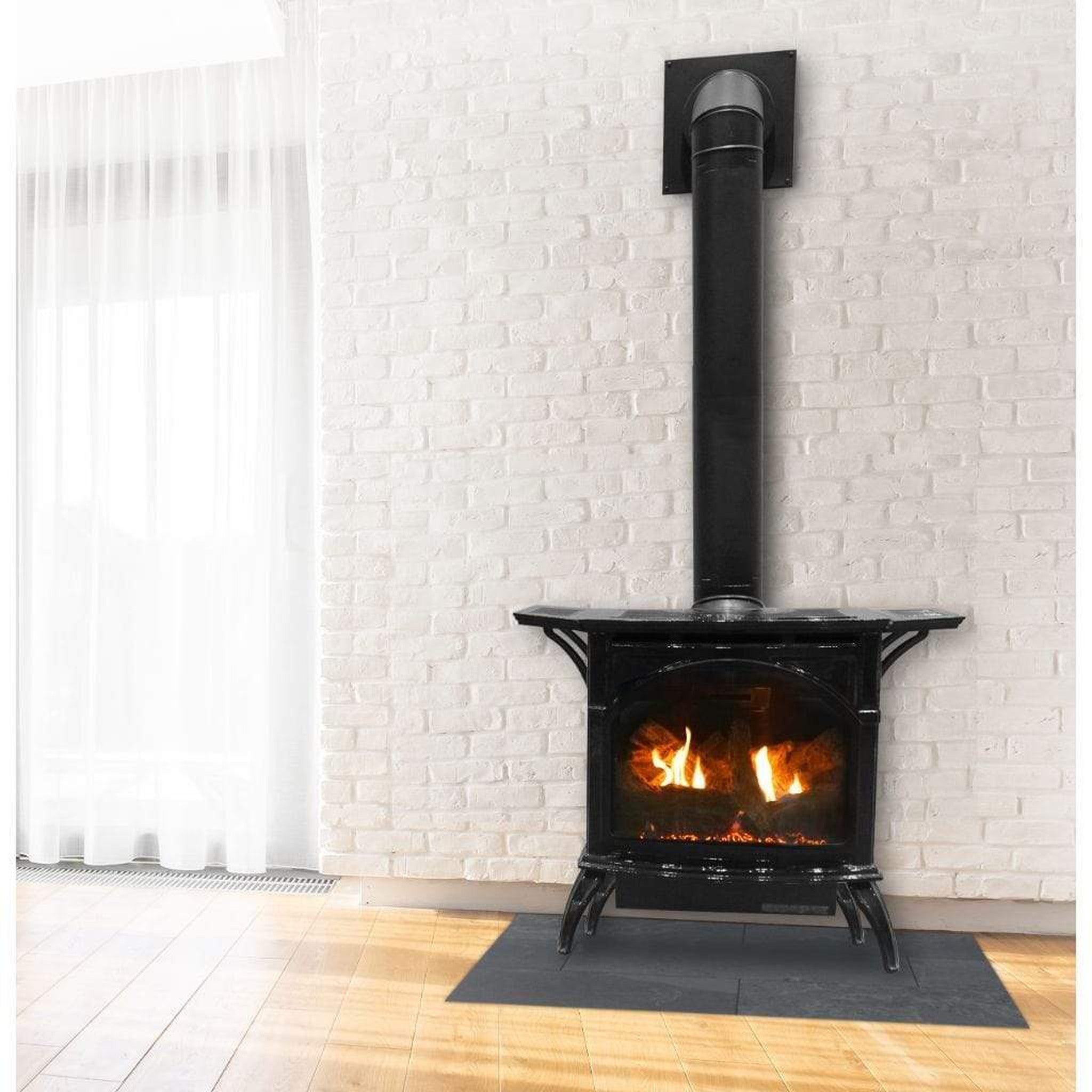

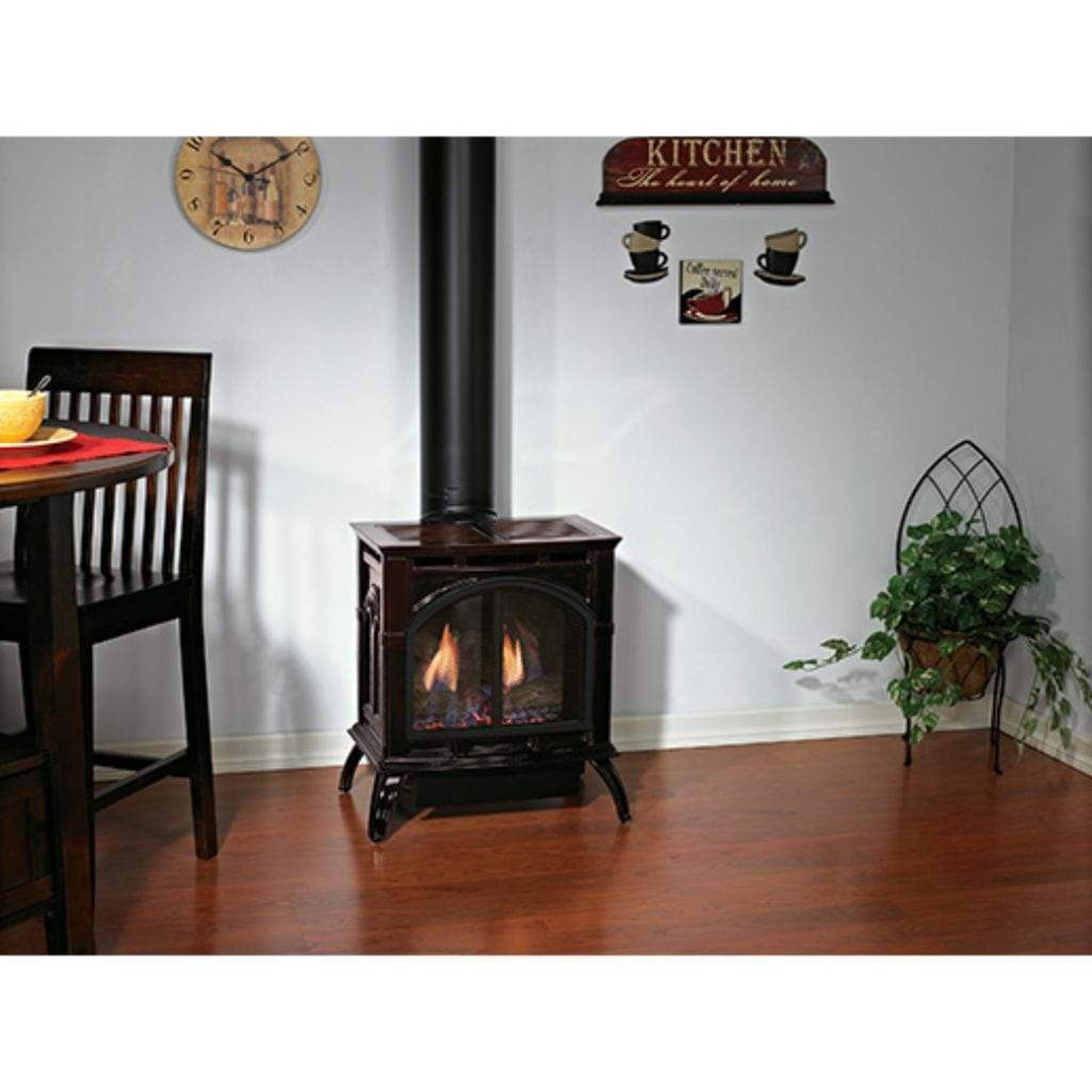

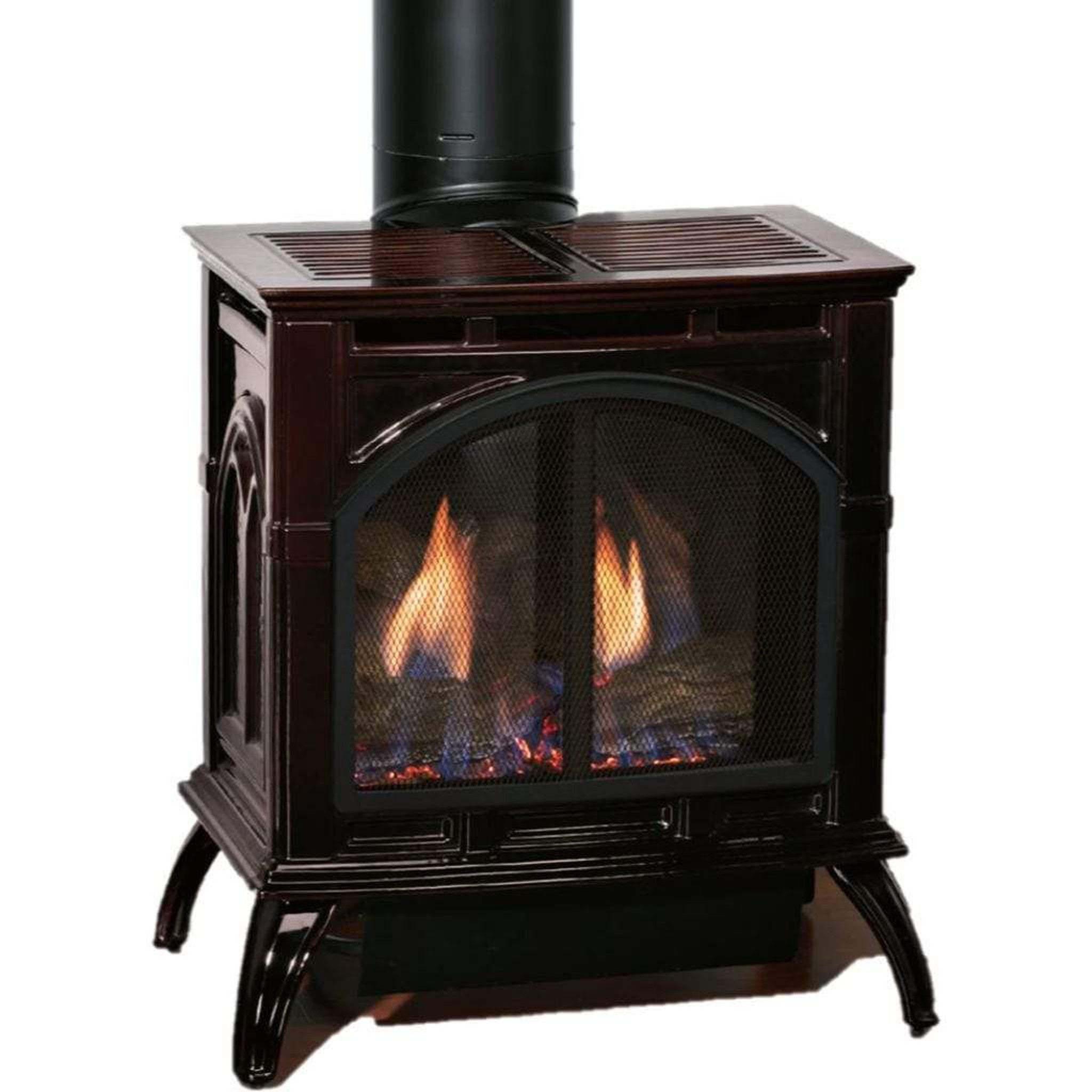

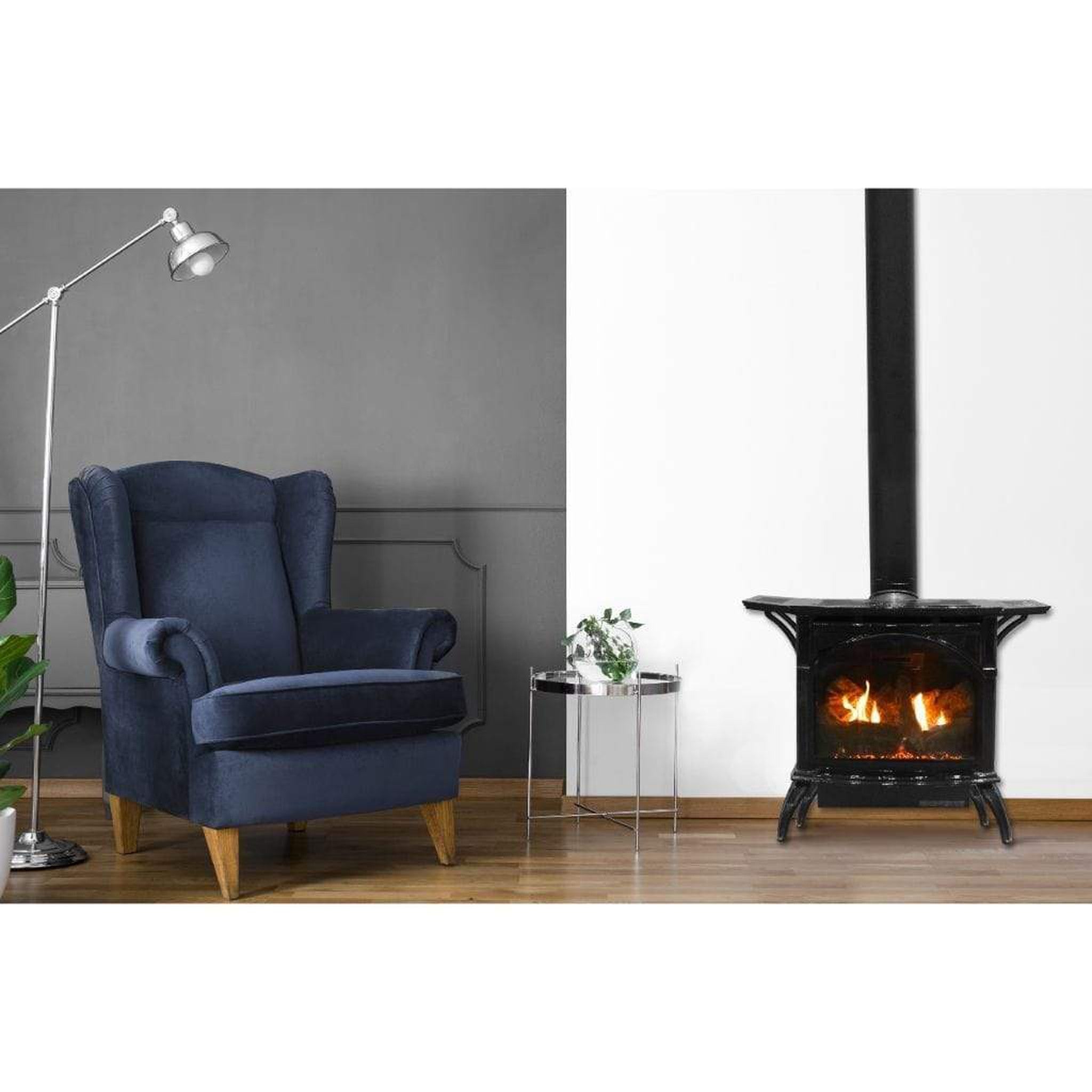

The Empire Spirit Direct Vent stove is a freestanding cast iron heating appliance designed for homes requiring dependable natural gas heating with sealed combustion technology. The Empire Spirit Natural Gas stove uses a direct vent system that draws combustion air from outdoors while exhausting combustion by-products outside, helping separate room air from the combustion process. This design makes the Empire Spirit Gas stove suitable for installation along an exterior wall or through the roof when properly vented.
This model features a matte black cast iron finish, a millivolt ignition system with a standing pilot, and a concealed on/off switch located on the rear of the stove. The direct vent burner incorporates Empire's Slope Glaze Burner system with ceramic beads that create naturally moving flames, complemented by a hand-painted ceramic fiber log set and glowing ember bed for a realistic fire appearance. With an input range of 13,500 to 19,500 BTU per hour, this Direct Vent stove can serve as a primary heat source where appropriate. It can also operate with optional remote control or thermostat accessories and is capable of providing heat during a winter power outage when installed according to manufacturer requirements.
Features
- Direct vent system separates combustion air from indoor room air.
- Millivolt ignition with standing pilot and concealed rear on/off switch.
- Slope Glaze Burner system with expanded ember bed for realistic flame appearance.
- Hand-painted ceramic fiber 4-piece log set included.
- Freestanding cast iron construction with matte black finish.
- Compatible with optional remote control and thermostat operation.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Series | Spirit |
| Model | DVP20CC |
| SKU | DVP20CC30FN |
| Product Type | Direct Vent Cast Iron Stove |
| Installation | Freestanding |
| Fuel Type | Natural Gas |
| Ignition Type | Millivolt |
| Finish | Matte Black |
| Maximum Input | 19,500 BTU/hr |
| Minimum Input | 13,500 BTU/hr |
| Vent Type | Direct Vent |
| Vent Size | 4 x 6 5/8 in. |
| Gas Inlet | 3/8 in. |
| Orifice | 2.15 mm |
| Air Shutter Setting | 1/8 in. |
| Maximum Gas Supply Pressure | 10.5 in. W.C. (2.614 kPa) |
| Minimum Gas Supply Pressure | 4.5 in. W.C. (1.121 kPa) |
| Manifold Pressure | 3.5 in. W.C. (0.872 kPa) |
| Width | 21 in. |
| Height | 24 in. |
| Depth | 16 in. |
Included
- Small Cast Iron Stove
- 4-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Sold Separately
- Required 45-Degree Elbow
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Remote Control Options
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Traditional/Corner Floor Pad
- Stone Inlay Kit (required for floor pad)
Warranty
- Combustion chamber: 10-year limited warranty
- Glass: Limited lifetime warranty
- Remote controls: 1-year limited warranty
- All other parts: 3-year limited warranty
Technical Documents & Manuals
Product FAQs
Q1. What type of venting does the Empire Spirit DVP20CC30FN use?
The stove uses a direct vent system that draws combustion air from outdoors and exhausts combustion by-products outside through a 4 x 6 5/8 inch vent system.
Q2. What is included with the Empire Spirit DVP20CC30FN?
The unit includes the small cast iron stove, a 4-piece hand-painted ceramic fiber log set, a fireplace barrier screen, and the Slope Glaze Burner. Several accessories, including a blower, remote controls, and floor pad kits, are available separately.
Q3. What heating capacity does this stove provide?
The Empire Spirit DVP20CC30FN operates between 13,500 BTU/hr and 19,500 BTU/hr and may be used as a primary heat source where appropriate. It features a millivolt ignition system with a standing pilot and concealed rear on/off switch.
