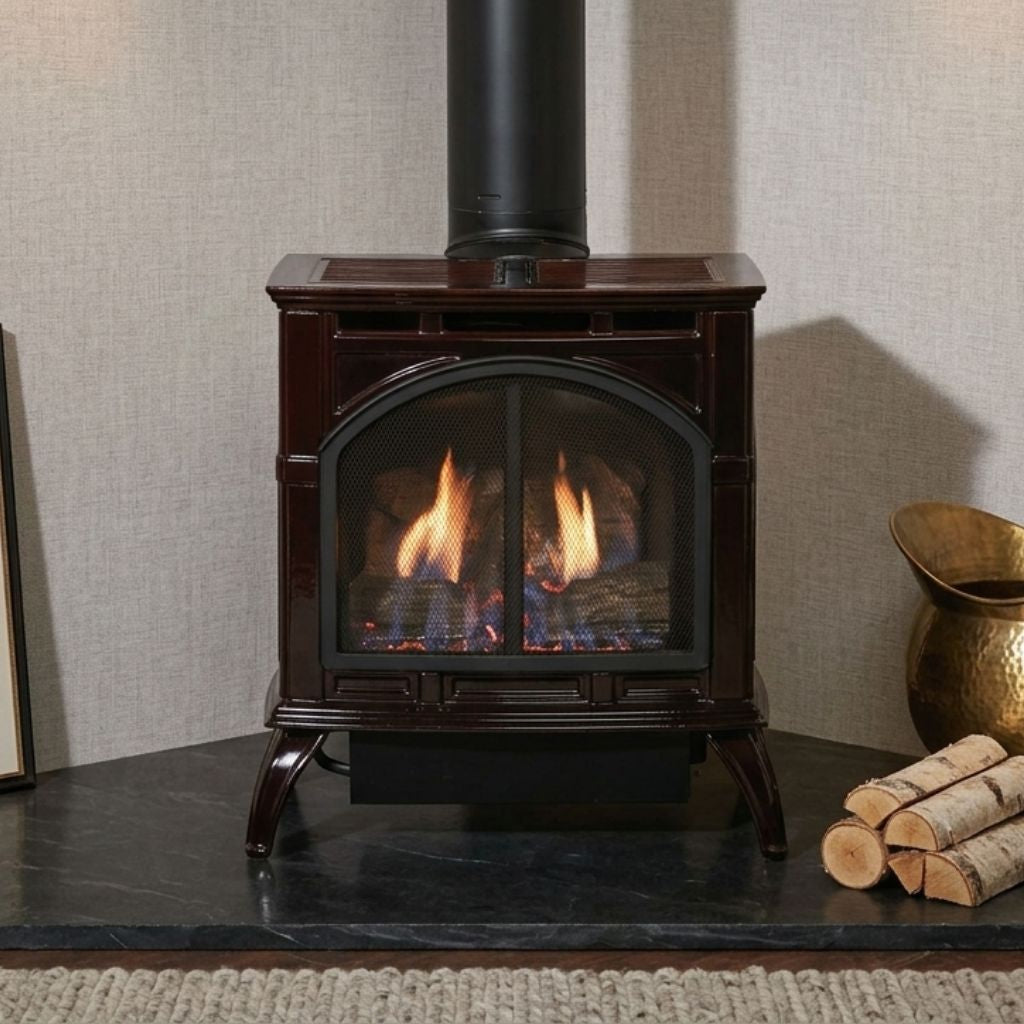

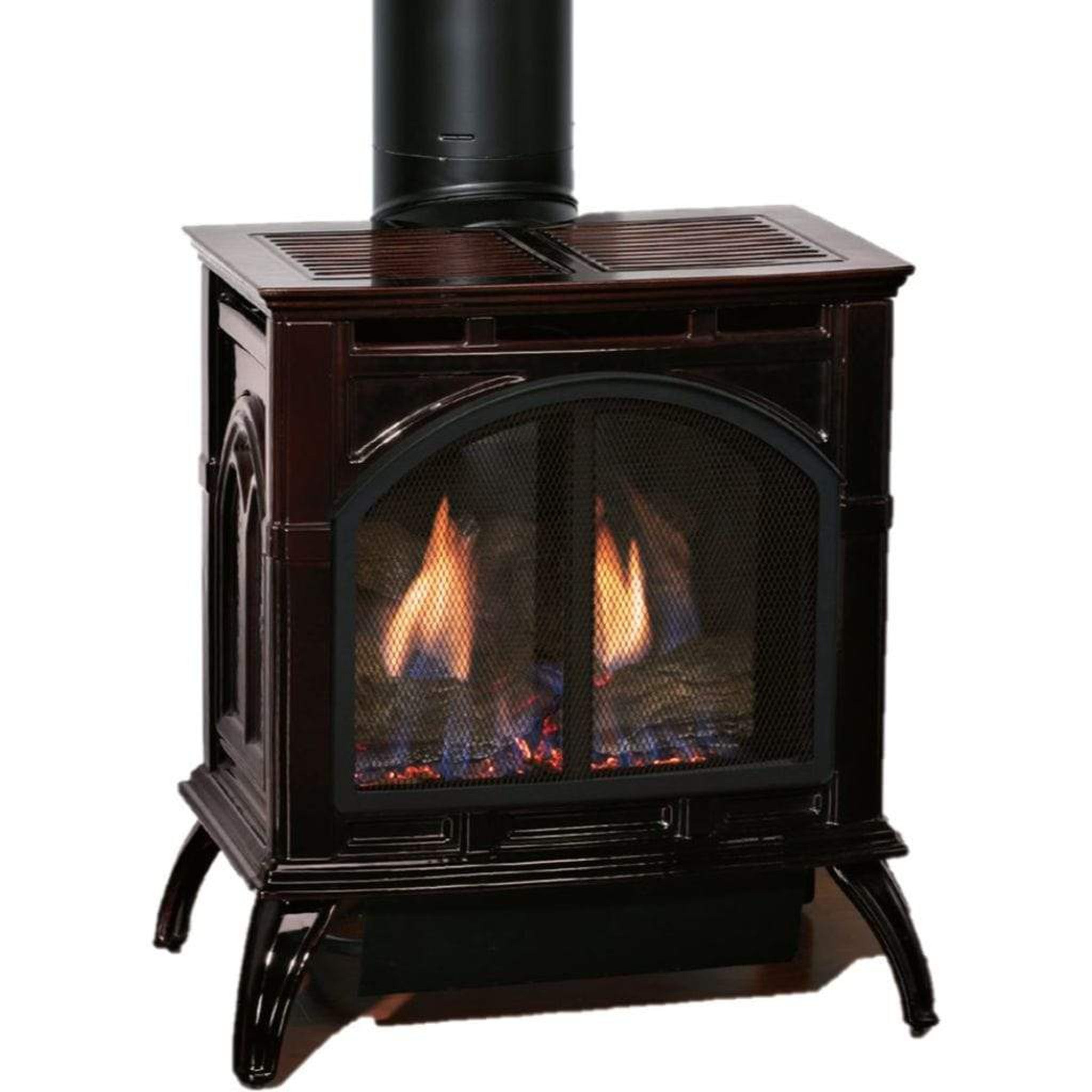

The Empire Spirit 22" Natural Gas Stove offers the appearance of a traditional cast iron stove while utilizing a sealed direct vent heating system designed to draw combustion air from outside and vent exhaust gases outdoors. The Empire Spirit Gas Stove features an intermittent pilot ignition system that eliminates a continuously burning pilot, helping reduce gas consumption while allowing simple operation through the integrated on/off switch. Optional remote control compatibility provides additional operating flexibility.
Inside the stove, Empire's Slope Glaze Burner system works with ceramic beads to create naturally swirling flames, while the hand-painted ceramic fiber log set and expanded ember bed produce a realistic wood fire appearance. The sealed combustion chamber helps separate combustion air from room air, and heat is transferred through the glass front with circulating room air to provide efficient heating performance. With an input range of 13,500 to 19,500 BTU/hr, this Empire Spirit Natural Gas Stove may be used as a primary heat source where appropriate. The freestanding design and porcelain mahogany finish provide a classic appearance suitable for a variety of living spaces while maintaining the performance advantages of a direct vent gas stove.
Features
- Direct vent system draws combustion air from outdoors while venting exhaust outside.
- Intermittent pilot ignition eliminates a standing pilot for improved energy savings.
- Empire Slope Glaze Burner system with expanded ember bed creates a realistic flame presentation.
- Hand-painted ceramic fiber log set enhances the appearance of a traditional wood fire.
- Compatible with optional remote control systems and thermostat operation.
- Freestanding cast iron stove design with porcelain mahogany finish.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Model | DVP20CC |
| SKU | DVP20CC70MN |
| Product Series | Spirit Series |
| Installation Type | Freestanding |
| Vent Type | Direct Vent |
| Fuel Type | Natural Gas |
| Ignition Type | Intermittent Pilot |
| Finish | Porcelain Mahogany |
| Maximum Input | 19,500 BTU/hr |
| Minimum Input | 13,500 BTU/hr |
| Vent Size | 4" x 6-5/8" |
| Gas Inlet | 3/8" |
| Orifice | 2.15 mm |
| Air Shutter Setting | 1/8" |
| Maximum Gas Supply Pressure | 10.5" W.C. (2.614 kPa) |
| Minimum Gas Supply Pressure | 4.5" W.C. (1.121 kPa) |
| Manifold Pressure | 3.5" W.C. (0.872 kPa) |
| Width | 21" |
| Height | 24" |
| Depth | 16" |
Included
- Small Cast Iron Stove
- 4-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Required (Sold Separately)
- 45-Degree Elbow
- RCK20 Replacement Control Cover (required for RVKN or RVKP)
Optional Accessories
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Traditional / Corner Floor Pad
- Stone Inlay Kit (required for floor pad)
Warranty
- Combustion chamber: 10-year limited warranty
- Glass: Limited lifetime warranty
- Remote controls: 1-year limited warranty
- All other parts: 3-year limited warranty
Technical Documents & Manuals
Product FAQs
Q1. What type of venting does the Empire Spirit DVP20CC70MN use?
Answer:
This model uses a direct vent system that draws combustion air from outside the home and vents combustion by-products outdoors through a 4" x 6-5/8" vent system.
Q2. How does the intermittent pilot ignition system work?
Answer:
The intermittent pilot system does not use a continuously burning pilot flame. Pressing the on/off switch ignites the pilot, which then lights the main burner. The stove is also compatible with optional remote control systems.
Q3. What is included with the Empire Spirit Natural Gas Stove?
Answer:
The stove includes the small cast iron stove, a 4-piece hand-painted ceramic fiber log set, a fireplace barrier screen, and the Slope Glaze Burner system with an expanded ember bed. Certain installation components and accessories, including the required 45-degree elbow and RCK20 replacement control cover (for RVKN or RVKP), are sold separately.
