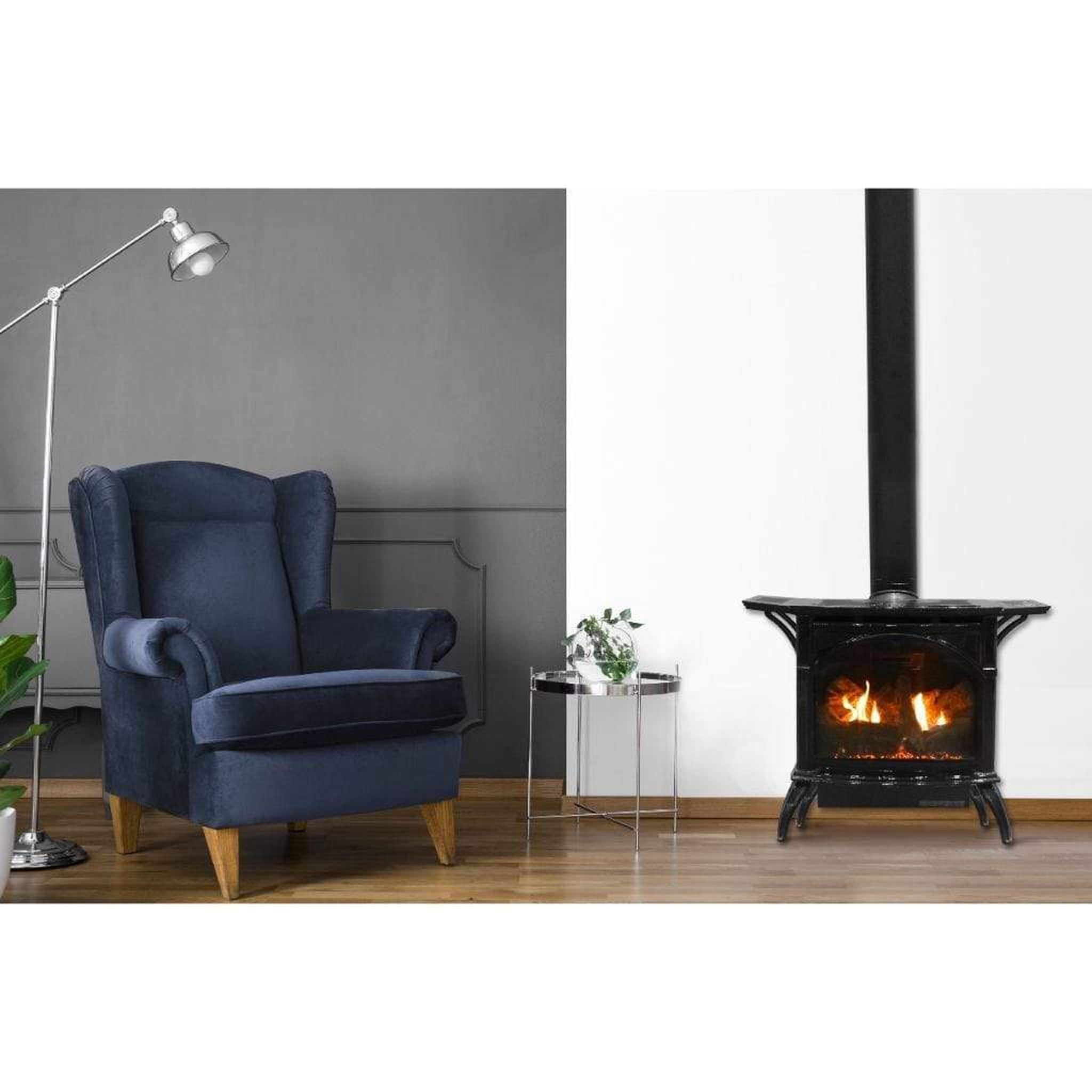

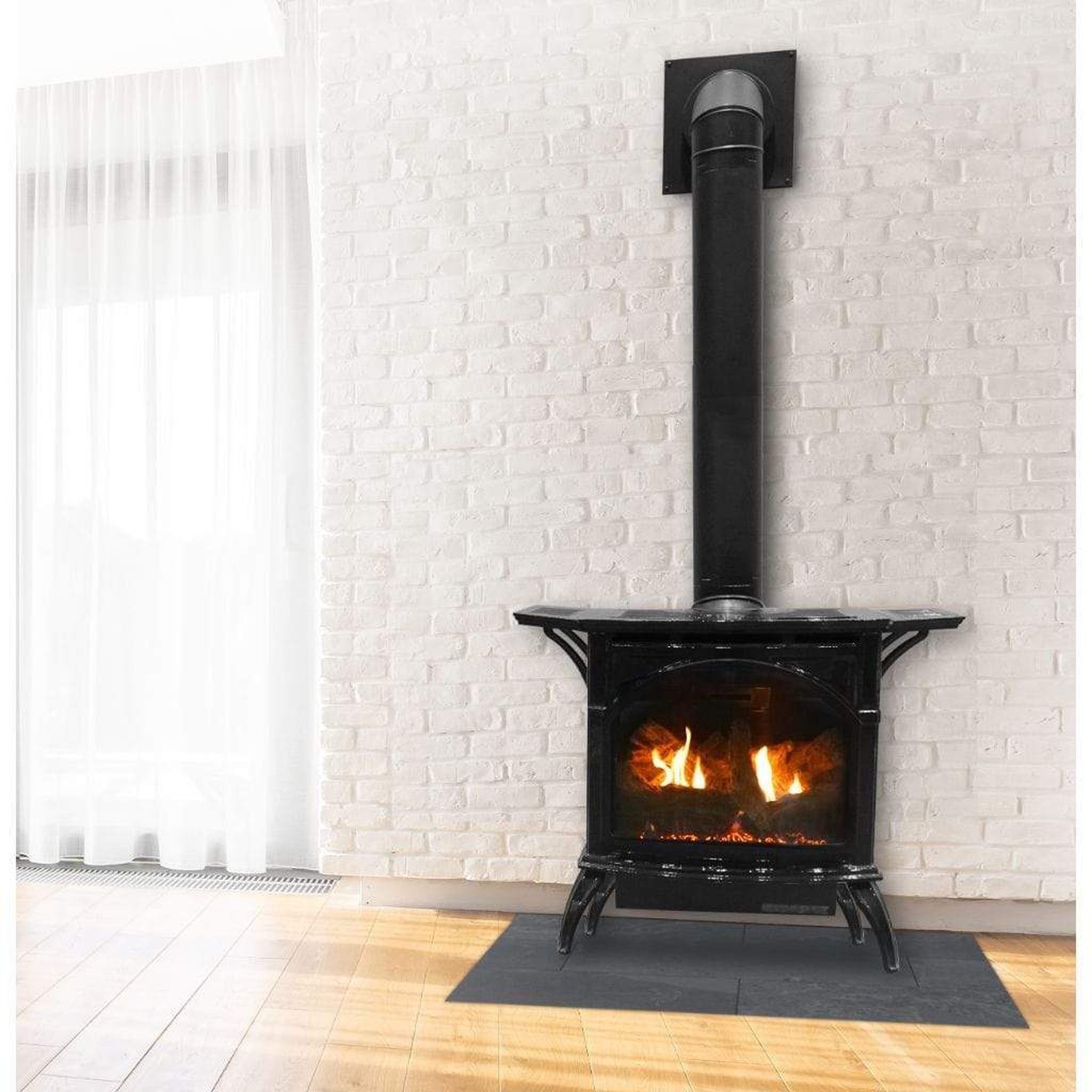

The Empire Spirit 22 Inch Propane Gas Stove Direct Vent Matte Black Finish DVP20CC70FP is a compact cast iron heating stove designed for freestanding installation with a direct vent system. As part of the Empire Spirit Gas Stove lineup, this model uses an intermittent pilot ignition system that eliminates a standing pilot, helping reduce gas consumption while providing reliable startup through the integrated on/off switch. The sealed direct vent design draws combustion air from outdoors while venting exhaust outside, helping keep indoor air separate from the combustion process.
This Empire Spirit Propane Gas Stove features Empire's Slope Glaze Burner system with an expanded ember bed, ceramic beads that create naturally swirling flames, and a hand-painted ceramic fiber log set for a realistic fire appearance. With an input range of 13,500 to 19,500 BTU/hr, it is suitable for use as a primary heat source where appropriate. The stove can also operate with optional remote control or thermostat accessories for added convenience. Finished in matte black, this direct vent cast iron stove includes a 4-piece log set, fireplace barrier screen, and Slope Glaze Burner, while additional accessories and venting components are available separately to complete the installation.
Features
- Direct vent system separates indoor air from combustion air by drawing combustion air from outdoors and venting exhaust outside.
- Intermittent pilot ignition with integrated on/off switch eliminates the need for a standing pilot.
- Slope Glaze Burner system with expanded ember bed enhances the appearance of the flame.
- Ceramic beads create naturally swirling flames, complemented by a hand-painted ceramic fiber log set.
- Cast iron freestanding stove finished in matte black.
- Compatible with optional remote control or thermostat operation.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire |
| Series | Spirit |
| Model | DVP20CC |
| SKU | DVP20CC70FP |
| Product Type | Direct Vent Cast Iron Stove |
| Fuel Type | Propane Gas |
| Installation | Freestanding |
| Vent Type | Direct Vent |
| Vent Size | 4 x 6 5/8 in. |
| Ignition Type | Intermittent Pilot |
| Finish | Matte Black |
| Maximum Input | 19,500 BTU/hr |
| Minimum Input | 13,500 BTU/hr |
| Gas Inlet | 3/8 in. |
| Orifice | 55 |
| Air Shutter Setting | Full Open |
| Maximum Gas Supply Pressure | 13.0 in. W.C. (3.237 kPa) |
| Minimum Gas Supply Pressure | 11.0 in. W.C. (2.739 kPa) |
| Manifold Pressure | 10.0 in. W.C. (2.490 kPa) |
| Width | 21 in. |
| Height | 24 in. |
| Depth | 16 in. |
Included
- Small Cast Iron Stove
- 4-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Sold Separately
- 45-Degree Elbow (Required)
- RCK20 Replacement Control Cover for RVKN or RVKP (Required)
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Traditional / Corner Floor Pad
- Stone Inlay Kit (Required for Floor Pad)
Warranty
- Combustion chamber: 10-year limited warranty
- Glass: Limited lifetime warranty
- Remote controls: 1-year limited warranty
- All other parts: 3-year limited warranty
Technical Documents & Manuals
Product FAQs
Q1. What type of venting does the Empire Spirit DVP20CC70FP use?
The Empire Spirit DVP20CC70FP uses a direct vent system with a 4 x 6 5/8 inch vent. The sealed system draws combustion air from outdoors while exhausting combustion gases outside.
Q2. What ignition system does this Empire Spirit Propane Gas Stove use?
This model features an intermittent pilot ignition with an integrated on/off switch. Unlike a standing pilot system, the pilot ignites only when heat is needed. The stove is also compatible with optional remote control or thermostat operation.
Q3. What is included with the Empire Spirit DVP20CC70FP?
The stove includes a small cast iron stove, 4-piece ceramic fiber log set, fireplace barrier screen, and Slope Glaze Burner. Some installation components and accessories, including the required 45-degree elbow and RCK20 replacement control cover for RVKN or RVKP, are sold separately.
