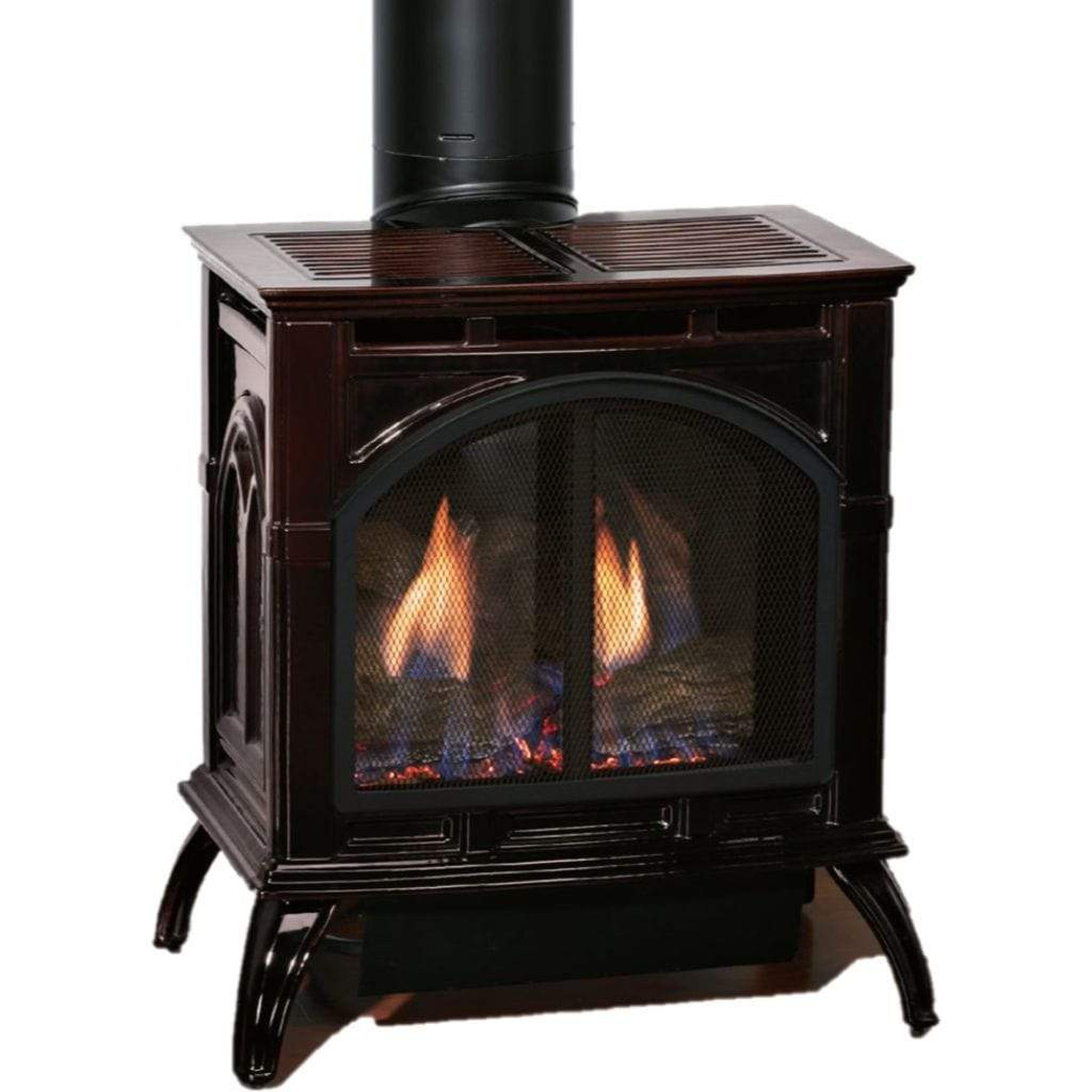

The Empire Spirit Propane Gas Stove offers the classic appearance of a cast iron stove with the performance of a direct vent heating system. The Empire Spirit 22 Inch Propane Gas Stove uses a sealed combustion chamber that draws combustion air from outdoors while venting exhaust gases outside, helping separate room air from the combustion process. This design makes it suitable for use as a primary heat source while providing dependable operation.
This model features a matte black cast iron finish, millivolt ignition with a standing pilot, and a concealed on/off switch located on the rear of the stove. It also supports optional remote control systems for added convenience. The direct vent configuration includes Empire's Slope Glaze Burner system with an expanded ember bed, ceramic beads that create naturally moving flames, and a hand-painted ceramic fiber log set for a realistic wood fire appearance. The freestanding design is compatible with 4 x 6 5/8 inch direct venting and delivers an input range of 13,500 to 19,500 BTU/hr. The package includes the cast iron stove, 4-piece log set, fireplace barrier screen, and Slope Glaze Burner. The required 45-degree elbow and additional accessories are sold separately.
Features
- Direct vent system separates combustion air from room air using a sealed combustion chamber.
- Millivolt ignition system with standing pilot, push-button piezo ignitor, and concealed on/off switch.
- Slope Glaze Burner system with expanded ember bed for realistic flame presentation.
- Hand-painted ceramic fiber 4-piece log set with glowing ember effect.
- Freestanding cast iron stove with matte black finish.
- Compatible with optional remote controls, thermostat controls, blower, floor pads, and other accessories.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire |
| Series | Spirit |
| Model | DVP20CC |
| SKU | DVP20CC30FP |
| Fuel Type | Propane Gas |
| Vent Type | Direct Vent |
| Installation | Freestanding |
| Ignition | Millivolt |
| Finish | Matte Black |
| Material | Cast Iron |
| Maximum Input | 19,500 BTU/hr |
| Minimum Input | 13,500 BTU/hr |
| Vent Size | 4 x 6 5/8 in. |
| Gas Inlet | 3/8 in. |
| Orifice | 55 |
| Air Shutter Setting | Full Open |
| Maximum Gas Supply Pressure | 13.0 in. W.C. (3.237 kPa) |
| Minimum Gas Supply Pressure | 11.0 in. W.C. (2.739 kPa) |
| Manifold Pressure | 10.0 in. W.C. (2.490 kPa) |
| Width | 21 in. |
| Height | 24 in. |
| Depth | 16 in. |
Included
- Small Cast Iron Stove
- 4-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Sold Separately
- Required 45-Degree Elbow
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Traditional Corner Floor Pad
- Stone Inlay Kit (required for floor pad)
Warranty
- Direct vent combustion chamber: 10-Year Limited Warranty
- Glass: Limited Lifetime Warranty
- Remote controls: 1-Year Limited Warranty
- All other parts: 3-Year Limited Warranty
Technical Documents & Manuals
Product FAQs
Q1. What type of venting does the Empire Spirit DVP20CC30FP use?
Answer:
The Empire Spirit DVP20CC30FP uses a direct vent system with 4 x 6 5/8 inch venting. The sealed combustion chamber draws combustion air from outdoors and exhausts combustion by-products outside.
Q2. What is included with the Empire Spirit Propane Gas Stove?
Answer:
The stove includes the small cast iron stove, a 4-piece hand-painted ceramic fiber log set, a fireplace barrier screen, and the Slope Glaze Burner system. Some accessories, including the required 45-degree elbow, are sold separately.
Q3. What heating capacity does the Empire Spirit Gas Stove provide?
Answer:
The Empire Spirit DVP20CC30FP operates between 13,500 BTU/hr minimum and 19,500 BTU/hr maximum input, depending on operating conditions. It is designed for propane gas and can be used as a primary heat source according to the manufacturer.
