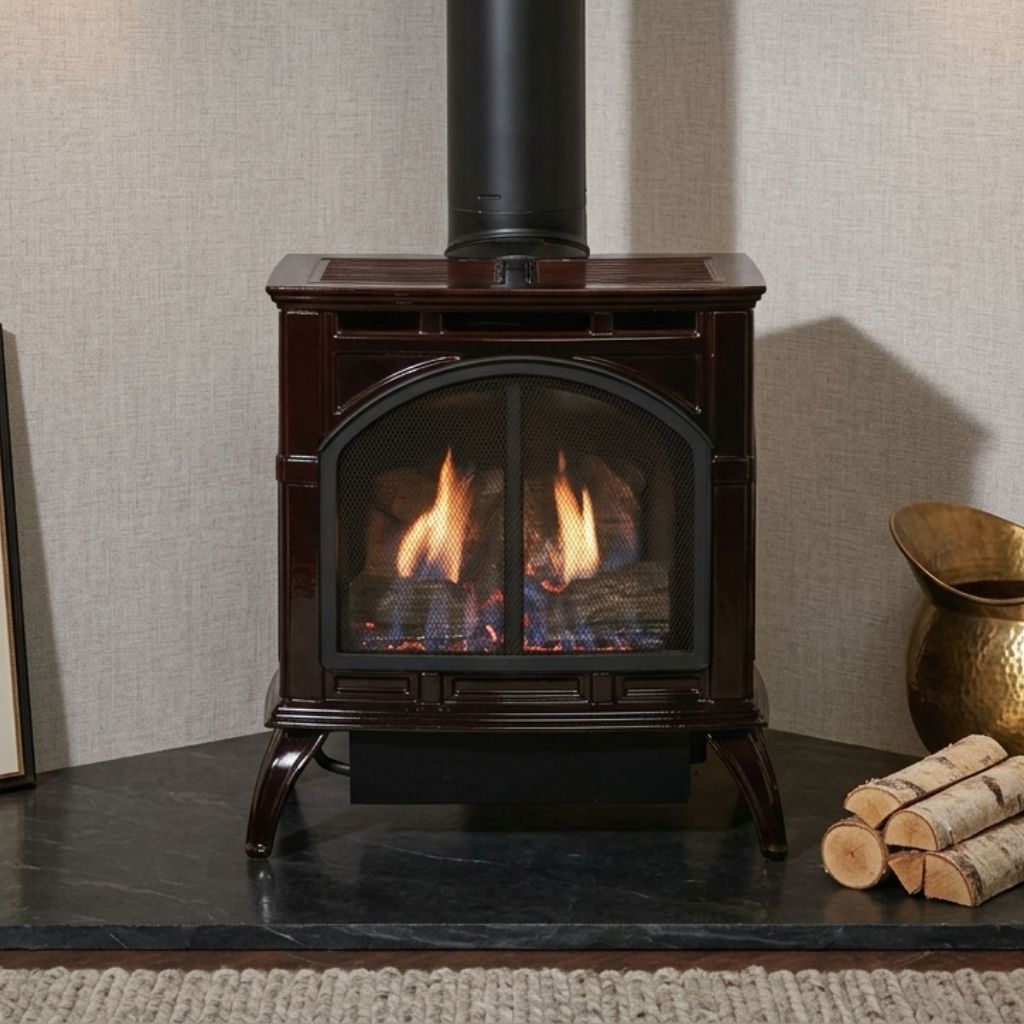

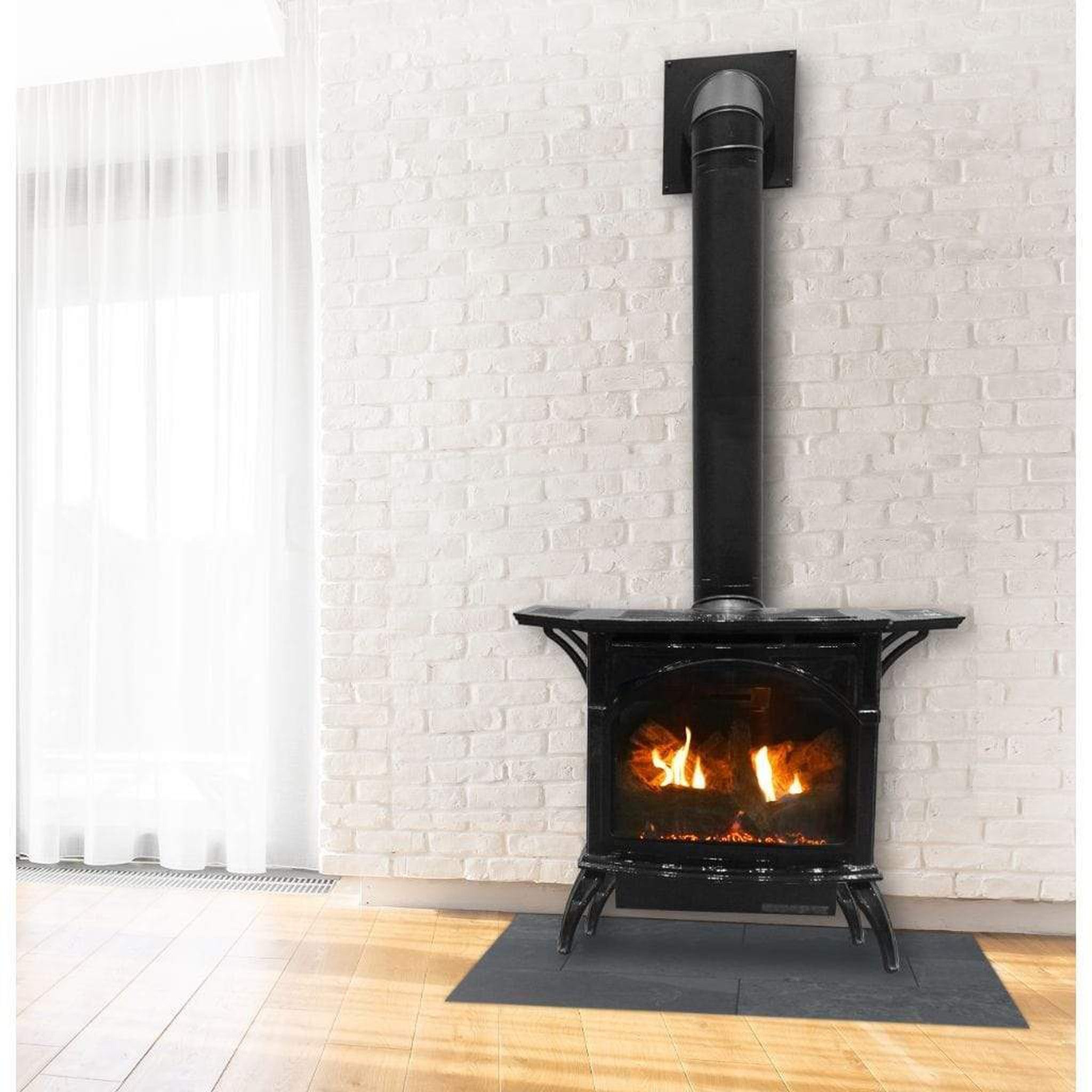

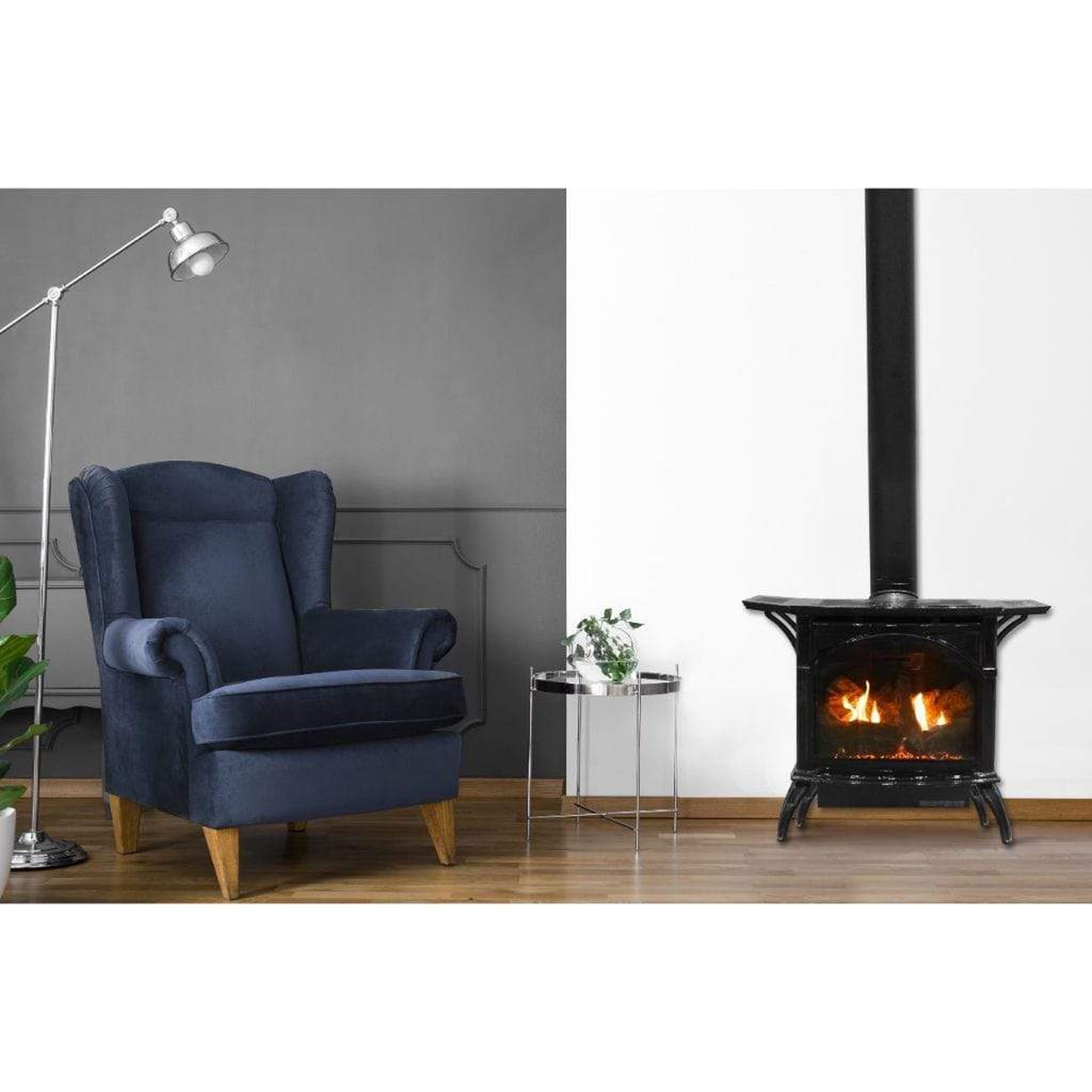

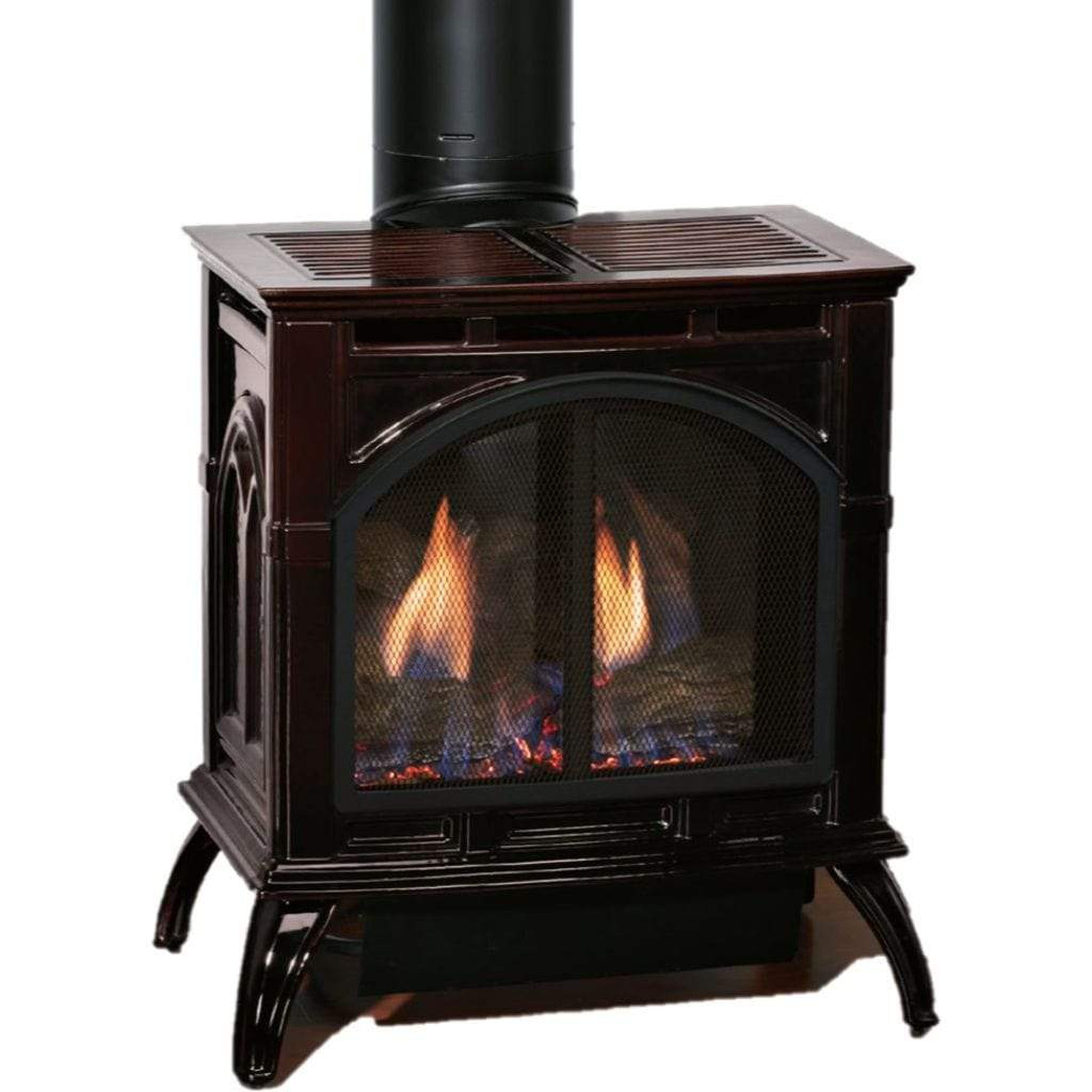

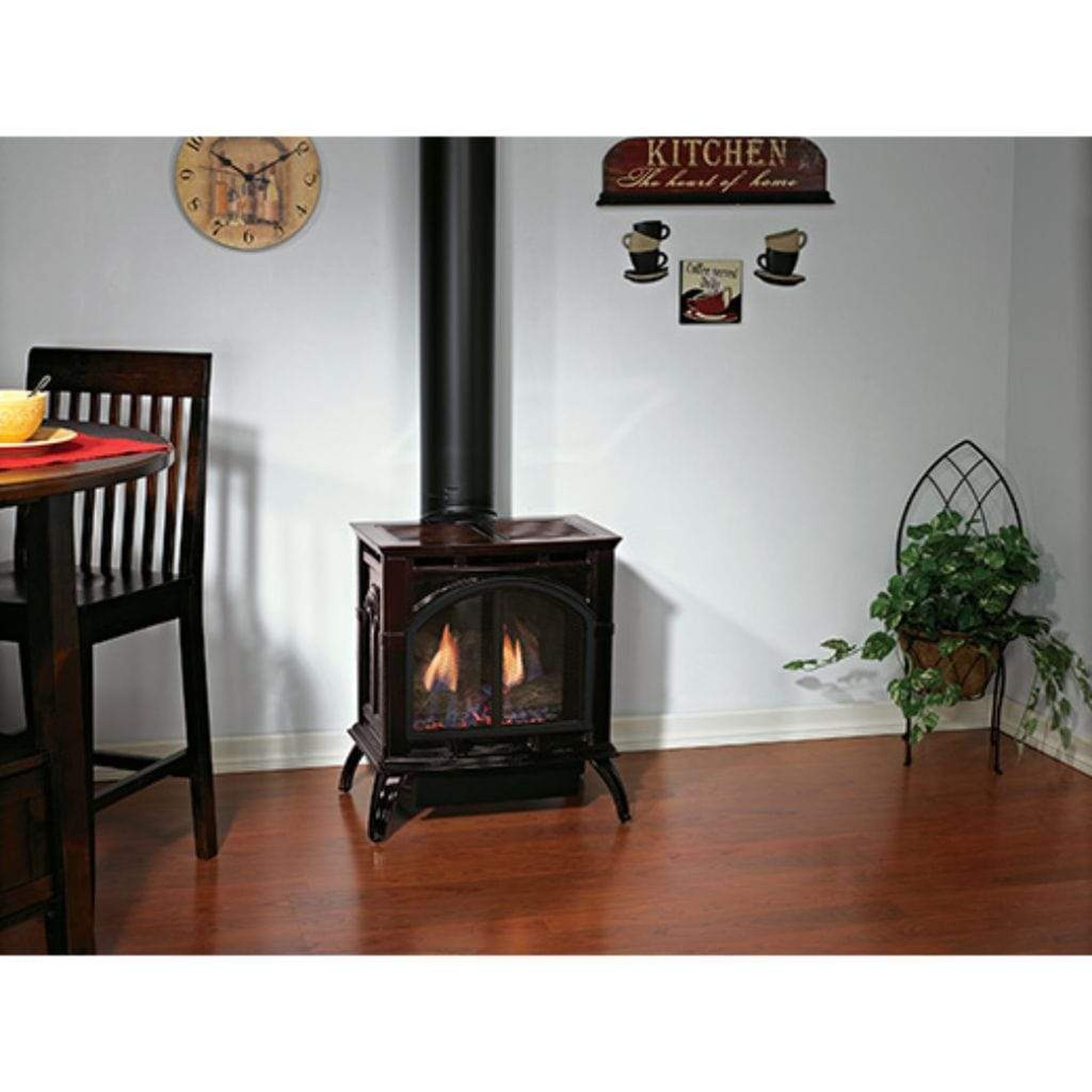

The Empire Spirit 22 Inch Propane Gas Stove is a compact Direct Vent stove designed for dependable room heating with a sealed combustion system. This Empire Spirit Gas Stove uses outside air for combustion while venting combustion gases outdoors, helping keep indoor air separated from the combustion process. The millivolt ignition system features a standing pilot with a push-button piezo ignitor and includes a concealed on/off switch on the rear of the stove. It is also compatible with optional remote control systems.
Finished in durable porcelain black, this freestanding cast iron stove includes Empire's Slope Glaze Burner system with an expanded ember bed that produces naturally swirling flames. Ceramic beads inside the burner create realistic flame movement, while the hand-painted ceramic fiber log set and glowing embers provide the appearance of a traditional wood fire. With an input range of 13,500 to 19,500 BTU/hr, this Empire Spirit Propane Gas Stove may be used as a primary heat source where appropriate. The direct vent design also allows operation during many winter power outages, making it a practical heating solution for a variety of installations.
Features
- Direct vent sealed combustion system separates room air from combustion air.
- Millivolt ignition with push-button piezo ignitor and concealed rear on/off switch.
- Slope Glaze Burner system with expanded ember bed for realistic flame appearance.
- Hand-painted ceramic fiber four-piece log set with glowing ember effect.
- Freestanding cast iron construction with porcelain black finish.
- Compatible with optional remote control systems and thermostat operation.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Series | Spirit |
| Model | DVP20CC |
| SKU | DVP20CC30BP |
| Fuel Type | Propane Gas |
| Vent Type | Direct Vent |
| Installation | Freestanding |
| Ignition Type | Millivolt |
| Finish | Porcelain Black |
| Construction | Cast Iron |
| Maximum Input | 19,500 BTU/hr |
| Minimum Input | 13,500 BTU/hr |
| Vent Size | 4 x 6 5/8 in. |
| Gas Inlet | 3/8 in. |
| Orifice | 55 |
| Air Shutter Setting | Full Open |
| Maximum Gas Supply Pressure | 13.0 in. W.C. (3.237 kPa) |
| Minimum Gas Supply Pressure | 11.0 in. W.C. (2.739 kPa) |
| Manifold Pressure | 10.0 in. W.C. (2.490 kPa) |
| Width | 21 in. |
| Height | 24 in. |
| Depth | 16 in. |
Included
- Small Cast Iron Stove
- 4-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Sold Separately
- Required 45-Degree Elbow
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Traditional Corner Floor Pad
- Stone Inlay Kit
Warranty
| Component | Warranty |
|---|---|
| Direct Vent Combustion Chamber | 10-Year Limited Warranty |
| Glass | Limited Lifetime Warranty |
| Remote Controls | 1-Year Limited Warranty |
| All Other Parts | 3-Year Limited Warranty |
Technical Documents & Manuals
Product FAQs
Q1. What type of venting does the Empire Spirit DVP20CC30BP use?
Answer:
The Empire Spirit DVP20CC30BP is a direct vent stove. It uses outside air for combustion and vents combustion by-products outdoors through a direct vent system.
Q2. What is included with the Empire Spirit Propane Gas Stove?
Answer:
The stove includes the small cast iron stove, a four-piece hand-painted ceramic fiber log set, a fireplace barrier screen, and the Slope Glaze Burner system. Some accessories, including the required 45-degree elbow, blower, and remote control options, are sold separately.
Q3. What heating capacity does the Empire Spirit Gas Stove provide?
Answer:
This model has an input rating of 13,500 BTU/hr minimum and 19,500 BTU/hr maximum. According to the manufacturer, it may be used as a primary heat source where appropriate and can continue providing heat during many winter power outages because of its millivolt ignition system.
