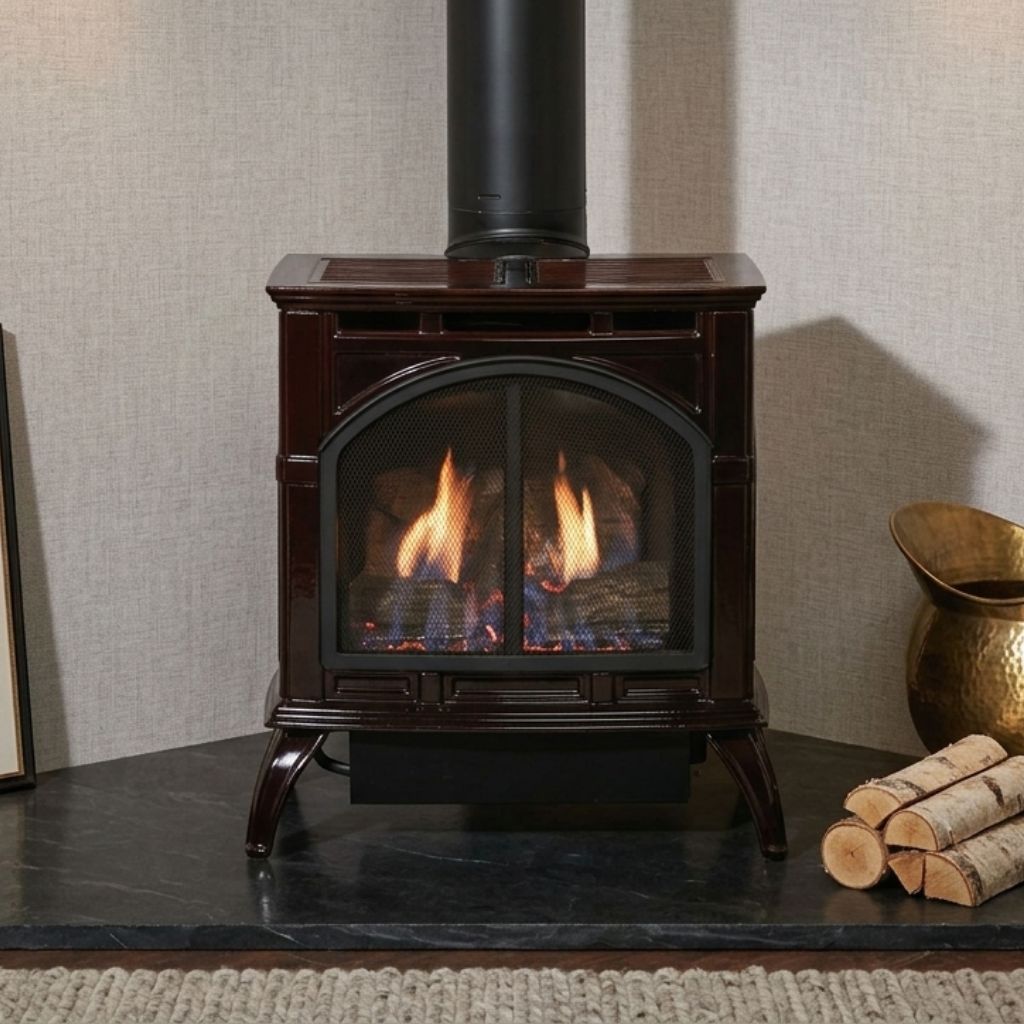

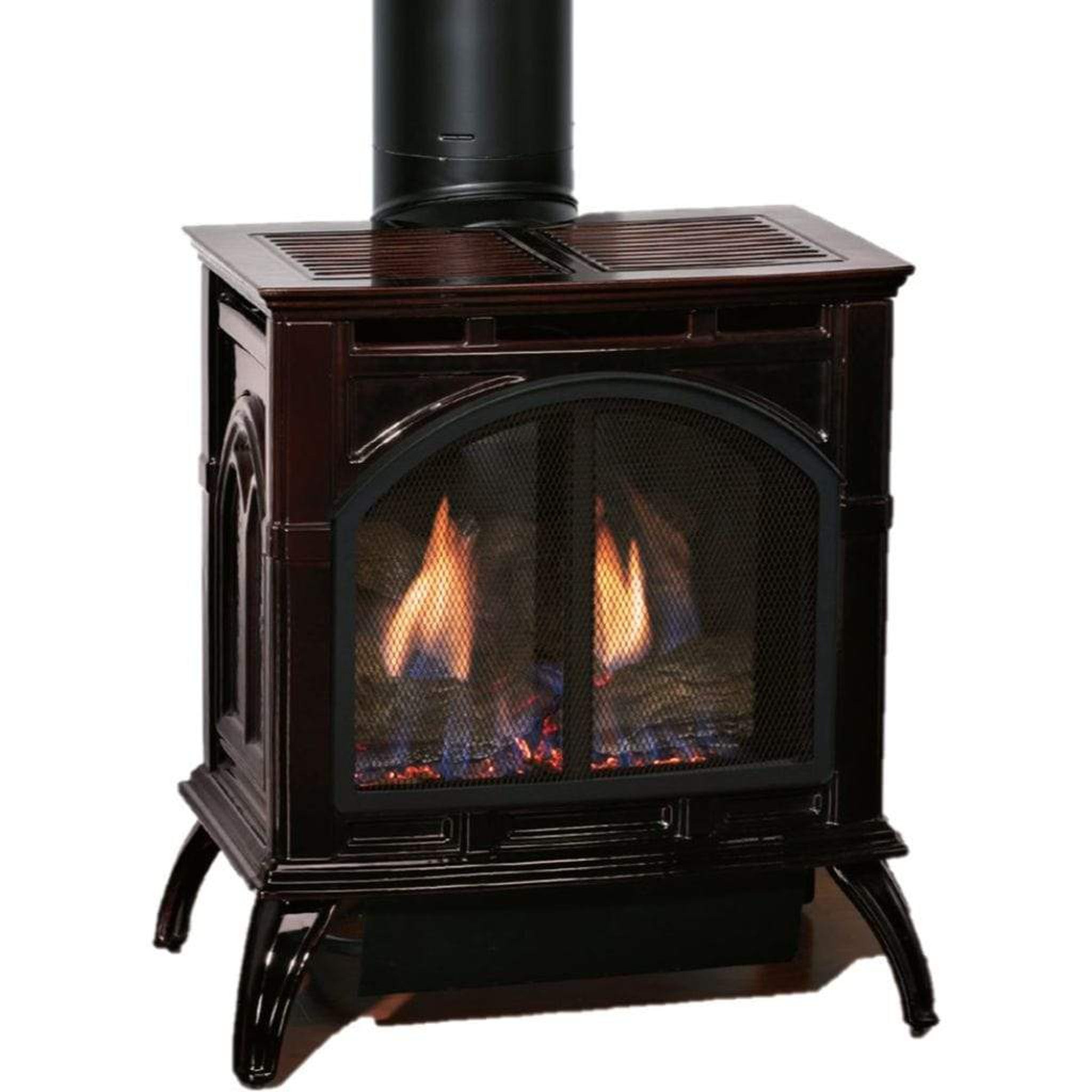

The Empire Spirit Natural Gas Stove is a compact direct vent cast iron heating appliance designed to provide dependable room heating while keeping combustion air separate from indoor living spaces. The Empire Spirit Gas Stove uses a direct vent system with outside air intake and external exhaust, helping maintain indoor air quality while delivering efficient heat output. Its intermittent pilot ignition eliminates the need for a continuously burning pilot, helping reduce gas consumption when the stove is not operating.
This Empire Spirit 22 Inch Natural Gas Stove features Empire's Slope Glaze Burner system with an expanded ember bed, ceramic beads that create naturally moving flames, and a hand-painted ceramic fiber log set for a realistic wood fire appearance. The sealed combustion chamber and glass front allow heat to transfer into the room while maintaining a controlled combustion environment. Designed for freestanding installation, the stove can operate using the integrated on/off switch and is compatible with optional remote control or thermostat systems. The package includes the cast iron stove, 4-piece log set, fireplace barrier screen, and Slope Glaze Burner. A required 45-degree elbow and other optional accessories are sold separately.
Features
- Direct vent system draws combustion air from outdoors and exhausts combustion gases outside.
- Intermittent pilot ignition eliminates a continuously burning standing pilot.
- Empire Slope Glaze Burner system with expanded ember bed for enhanced flame presentation.
- Ceramic beads create naturally swirling flames with a hand-painted ceramic fiber log set.
- Freestanding cast iron stove with concealed on/off switch and compatibility with optional remote control or thermostat.
- Includes cast iron stove, 4-piece log set, fireplace barrier screen, and Slope Glaze Burner.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Hearth |
| Model | DVP20CC |
| SKU | DVP20CC70BN |
| Product Type | Direct Vent Cast Iron Stove |
| Fuel Type | Natural Gas |
| Vent Type | Direct Vent |
| Ignition | Intermittent Pilot |
| Installation | Freestanding |
| Finish | Porcelain Black |
| Maximum Input | 19,500 BTU/hr |
| Minimum Input | 13,500 BTU/hr |
| Vent Size | 4 x 6 5/8 in. |
| Gas Inlet | 3/8 in. |
| Orifice | 2.15 mm |
| Air Shutter Setting | 1/8 in. |
| Maximum Gas Supply Pressure | 10.5 in. W.C. (2.614 kPa) |
| Minimum Gas Supply Pressure | 4.5 in. W.C. (1.121 kPa) |
| Manifold Pressure | 3.5 in. W.C. (0.872 kPa) |
| Width | 21 in. |
| Height | 24 in. |
| Depth | 16 in. |
Included
- Small Cast Iron Stove
- 4-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Required (Sold Separately)
- 45-Degree Elbow
- RCK20 Replacement Control Cover (required for RVKN or RVKP)
Optional Accessories
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Traditional Floor Pad
- Traditional Corner Floor Pad
- Stone Inlay Kit (required for floor pad)
Warranty
- 10-Year Limited Warranty on direct vent combustion chamber
- Limited Lifetime Warranty on glass
- 1-Year Limited Warranty on remote controls
- 3-Year Limited Warranty on all other parts
Technical Documents & Manuals
Product FAQs
Q1. What type of venting does the Empire Spirit DVP20CC70BN use?
Answer:
This model uses a direct vent system that draws combustion air from outdoors while exhausting combustion by-products outside through the vent system. It is designed for freestanding installation.
Q2. What ignition system does the Empire Spirit Natural Gas Stove use?
Answer:
The stove uses an intermittent pilot ignition system. The pilot ignites only when the stove is turned on, eliminating the need for a continuously burning standing pilot. It can also operate with compatible optional remote control systems.
Q3. What is included with the Empire Spirit Gas Stove?
Answer:
The stove includes the small cast iron stove, a 4-piece hand-painted ceramic fiber log set, a fireplace barrier screen, and Empire's Slope Glaze Burner. Some installation components and accessories, including the required 45-degree elbow and RCK20 replacement control cover, are sold separately.
