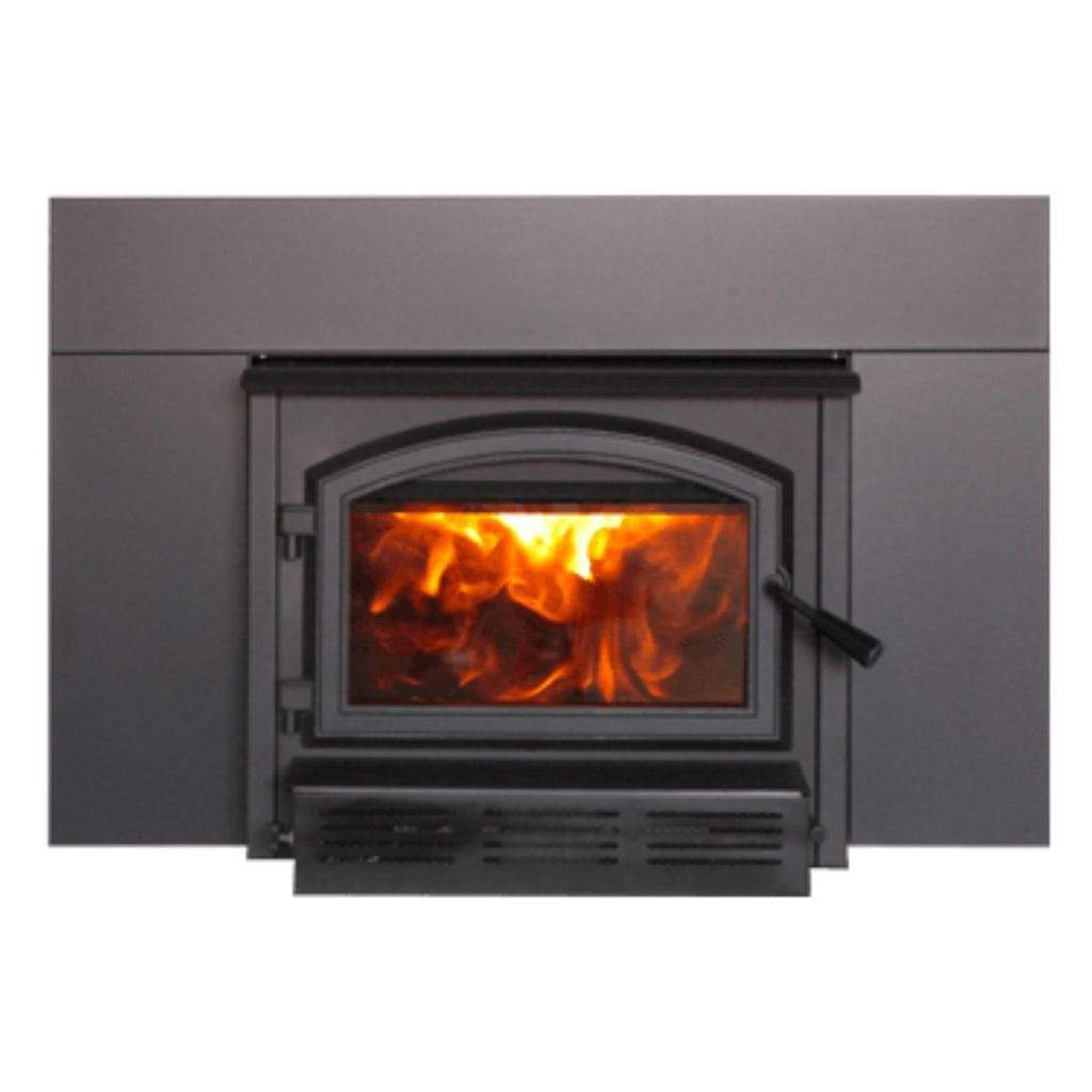

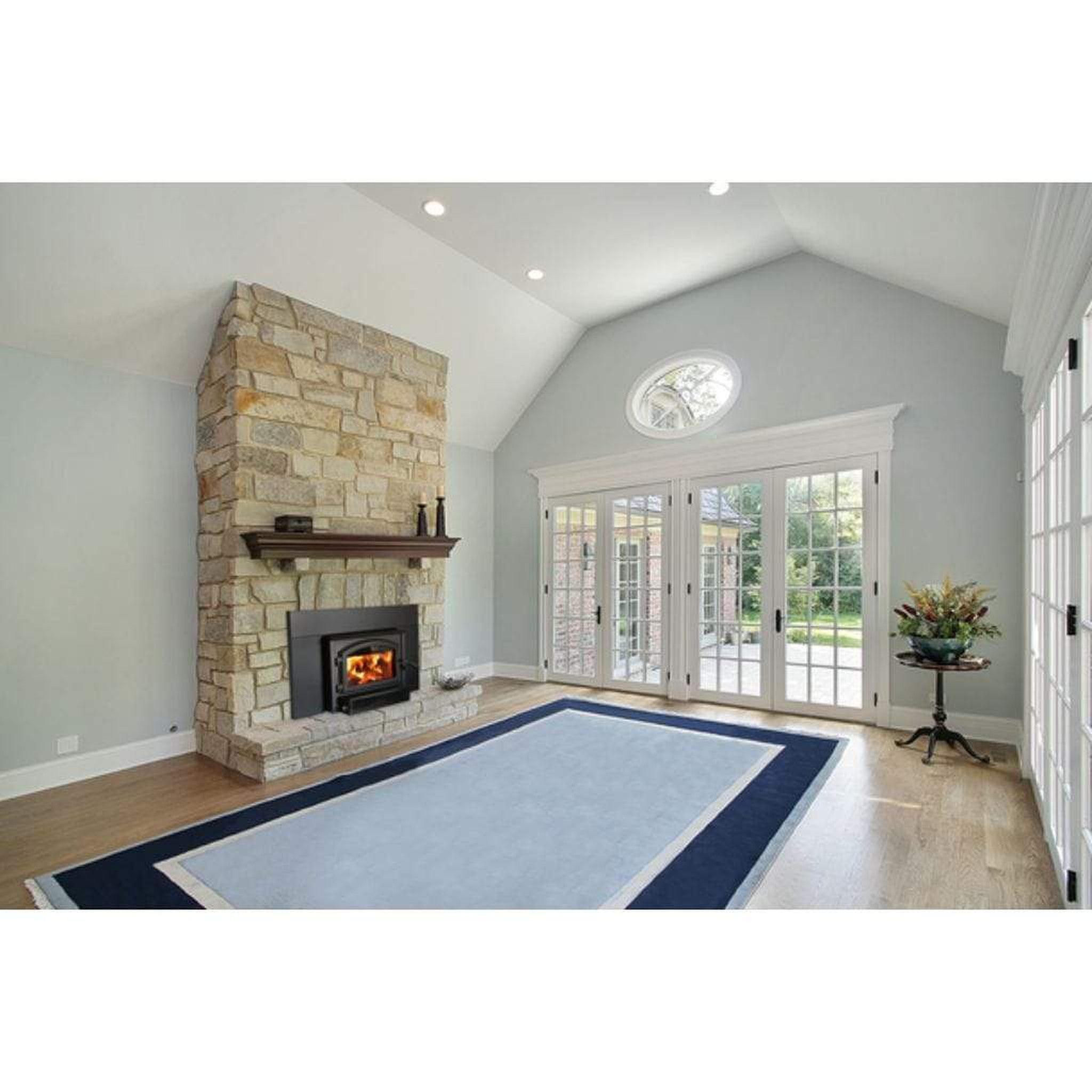

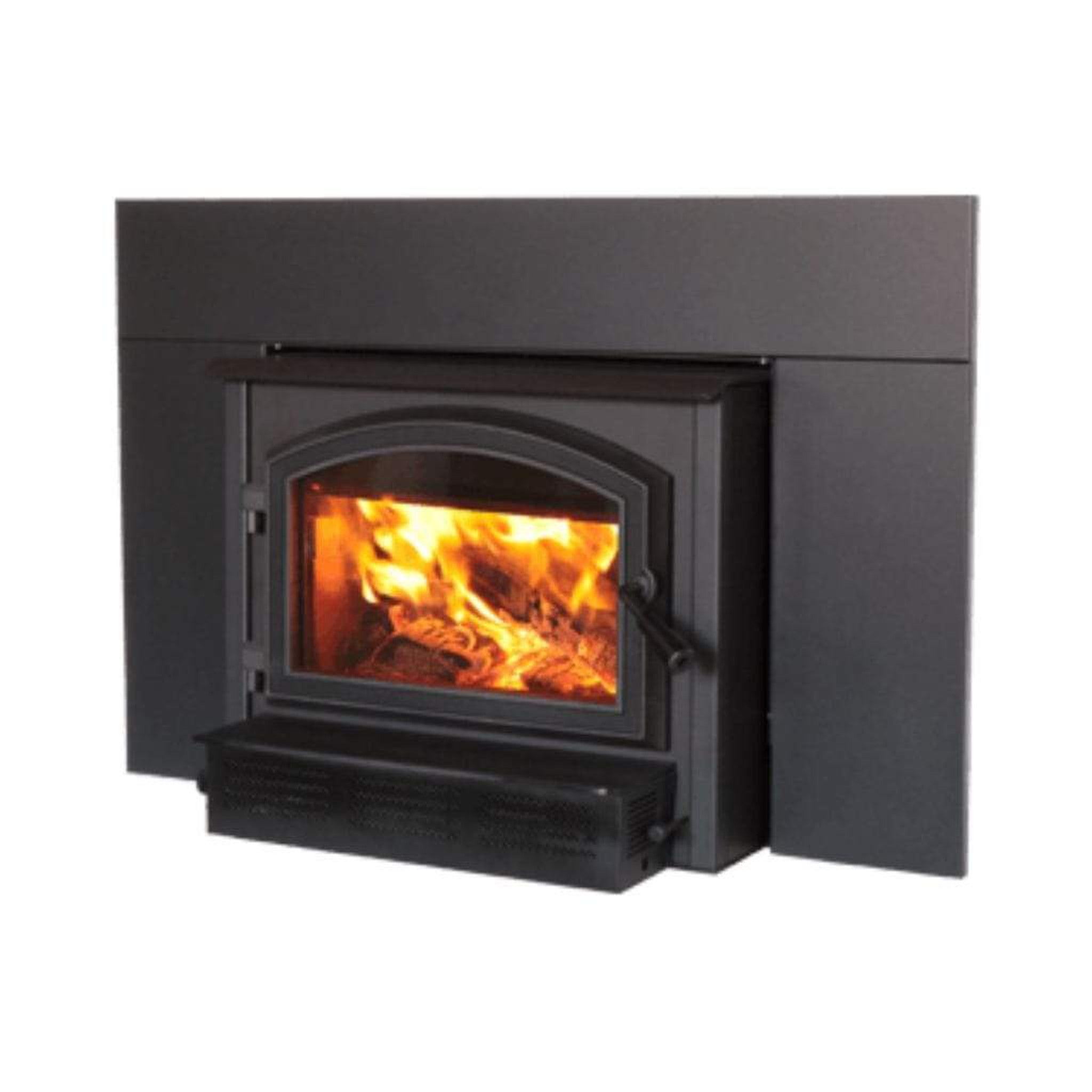

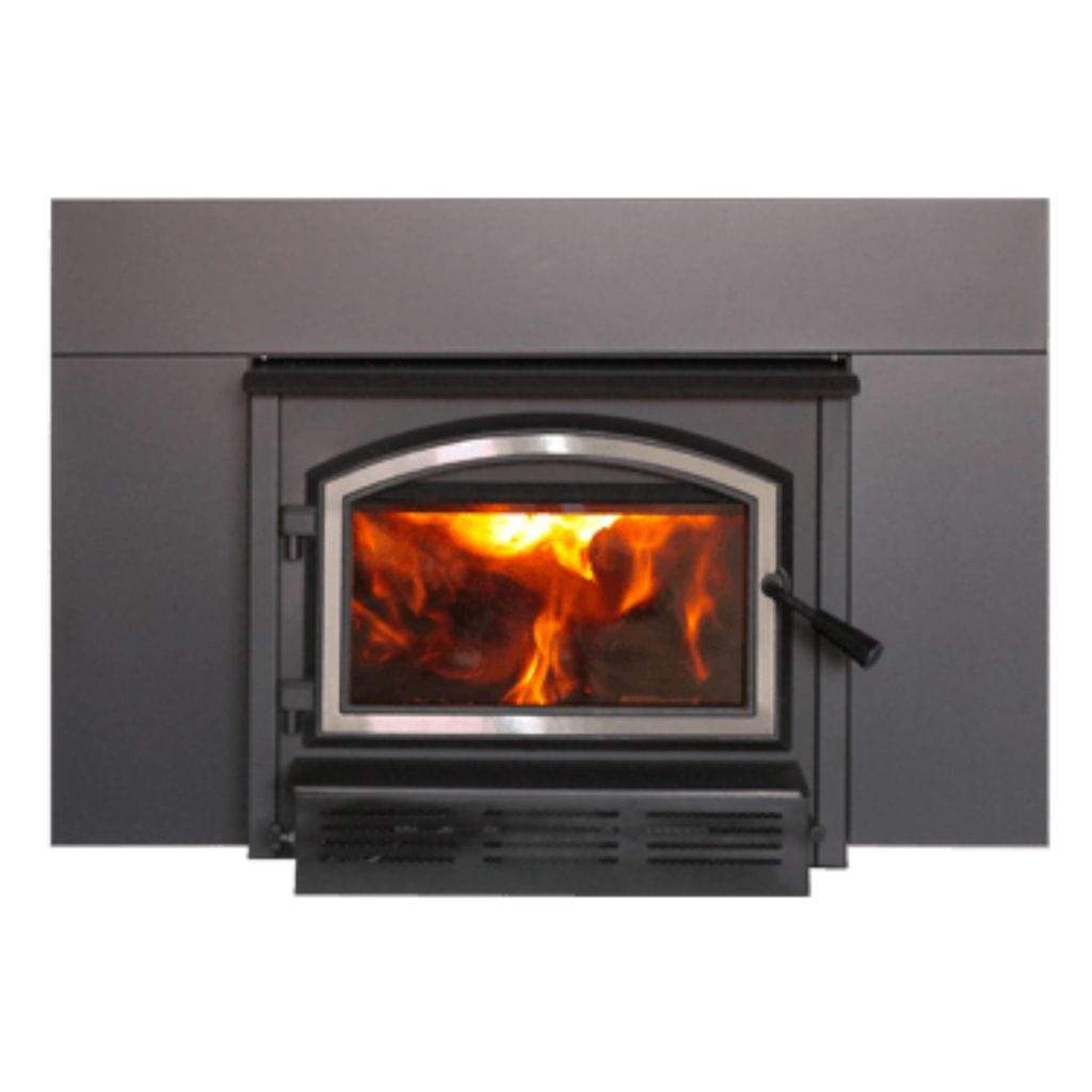

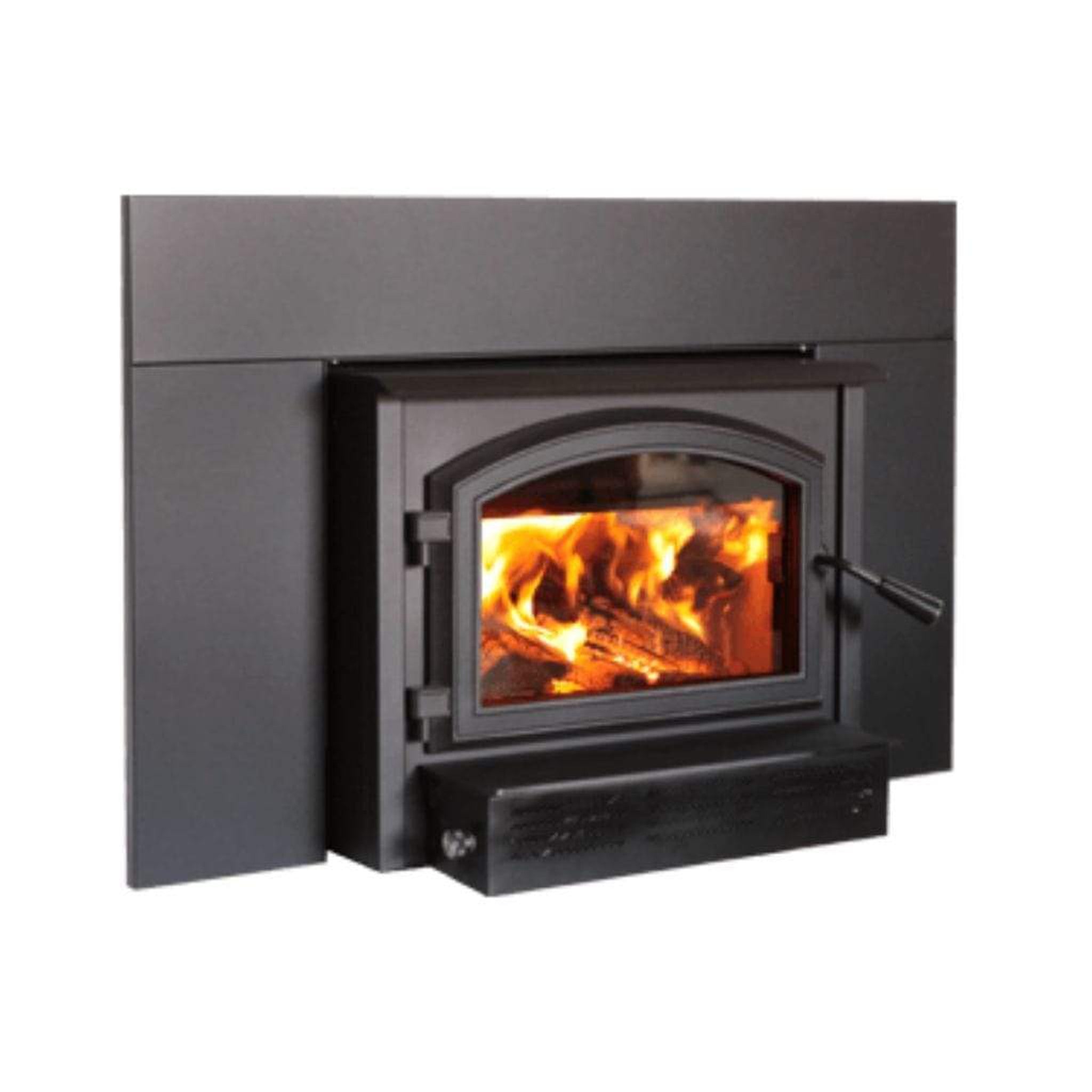

The Empire Archway 1700 wood stove insert is designed to improve the heating performance of an existing masonry fireplace while maintaining straightforward operation and dependable construction. The Empire Archway fits smaller homes or living spaces with a heating capacity of 500 to 1,800 square feet and delivers up to 65,000 BTUs using dry cordwood. Its non-catalytic combustion system, one-lever air control, and integrated blower make it simple to adjust heat output while circulating warmed air back into the room.
Built from 5/16-inch steel, the Empire Wood Stove Insert is engineered for durability. A firebrick-lined firebox helps improve heat distribution, while the ceramic baffle is designed to withstand high operating temperatures. The integrated air wash system helps keep the ceramic glass cleaner by directing hot air across the viewing area, reducing debris buildup during operation. Additional features including the heavy-duty door latch and removable ash pan simplify daily use and routine maintenance. The included blower kit comes standard, while the required door overlay and surround are sold separately, allowing you to customize the finished appearance to complement your fireplace.
Features
- Non-catalytic wood burning insert designed for existing masonry fireplaces
- Heats areas from 500 to 1,800 sq. ft. with up to 65,000 BTUs
- One-lever air control allows simple adjustment of burn rate
- Integrated blower circulates heated air into the living space
- Air wash system helps maintain a clearer view through the ceramic glass
- Firebrick-lined firebox with 5/16-inch steel construction and high-heat ceramic baffle for durability
Specifications
| Specification | Details |
|---|---|
| Brand | Empire |
| Model | Archway 1700 |
| SKU | WB17IN |
| Product Type | Wood Stove Insert |
| Color | Metallic Black |
| Mounting Location | Insert |
| Decorative Style | Classic / Traditional |
| Fuel Type | Dry Cordwood |
| Combustion Technology | Non-catalytic |
| EPA Certification | EPA 2020 Certified |
| Firebox Size | 1.9 cu. ft. |
| Heating Area | 500 to 1,800 sq. ft. |
| BTU Rating (AWEIS) | 65,000 BTU |
| Average Overall Efficiency (HHV) | 70% |
| Average Overall Efficiency (LHV) | 75% |
| Optimum Efficiency | 78% |
| Burn Time | 6 Hours |
| Maximum Log Length | 18 in. |
| Flue Diameter | 6 in. |
| Width | 27 in. |
| Height | 21 in. |
| Depth | 13 in. |
Construction
- 5/16-inch steel top
- Firebrick-lined firebox
- High heat ceramic baffle
- High temperature ceramic glass
What's Included
- Archway 1700 Wood Burning Insert
- Blower Kit
Sold Separately
- Door Overlay (Required)
- Surround (Required)
- Fresh Air Intake Kit
- Fire Screen
Warranty
| Coverage | Length |
|---|---|
| Combustion chamber welds, cast iron door frame, ceramic glass, plating, step top | Limited Lifetime |
| Surrounds, heat shields, ash drawer, pedestal, C-Cast baffle, secondary air tubes, deflectors and supports | Limited 7 Year |
| Handle assembly, glass retainers, air control mechanism, removable carbon steel combustion chamber components | Limited 5 Year |
| Blower, heat sensors, switches, rheostat, wiring and electronics | Limited 2 Year |
| Paint peeling, gaskets, insulation, ceramic fiber blankets, firebricks and other options | Limited 1 Year |
| Replacement parts under warranty | Limited 90 Day |
Technical Documents & Manuals
Product FAQs
Q1. What size area can the Empire Archway 1700 heat?
The Empire Archway 1700 is designed to heat spaces ranging from 500 to 1,800 square feet, depending on installation conditions, home layout, and fuel quality.
Q2. What is included with the Empire Archway 1700 WB17IN?
The unit includes the Archway 1700 Wood Burning Insert and a blower kit. The required door overlay and surround are sold separately, along with optional accessories such as the fresh air intake kit and fire screen.
Q3. What type of fuel does the Empire Archway 1700 use?
The Empire Archway 1700 is a non-catalytic wood stove insert designed to burn dry cordwood. It features a 1.9 cu. ft. firebox, accepts logs up to 18 inches, and uses a 6-inch flue for installation.
