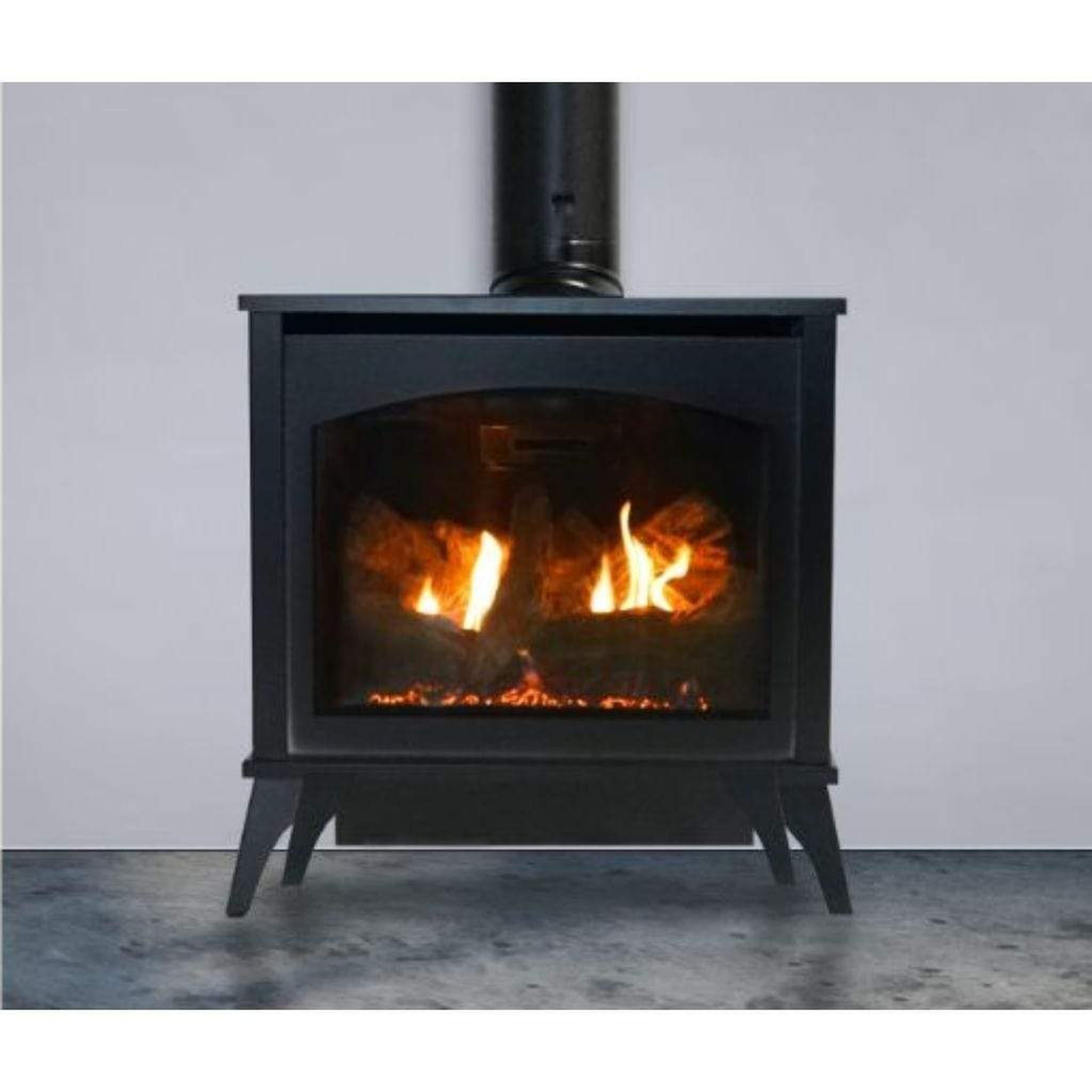

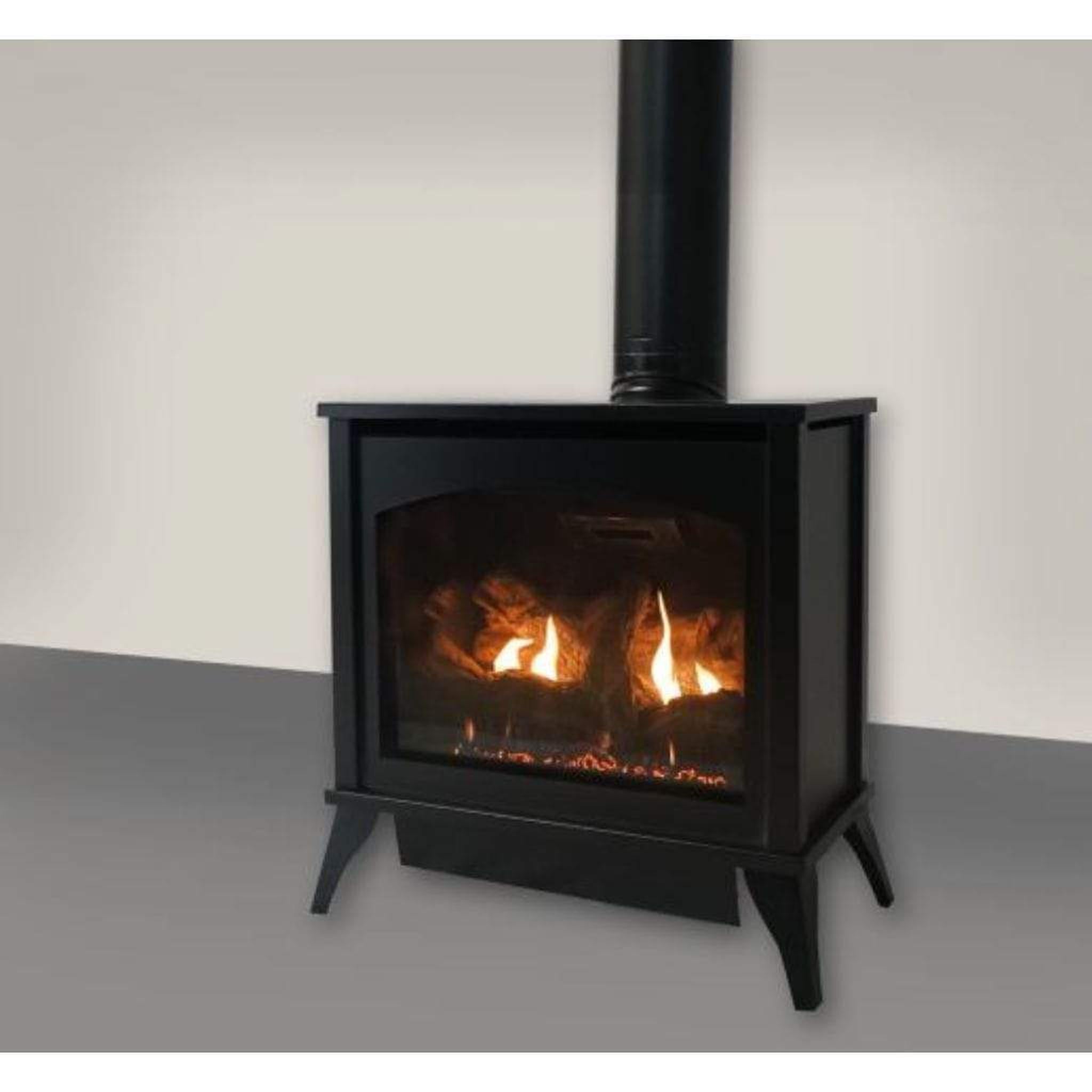

The Empire Spirit Natural Gas Stove is a 27-inch direct vent steel stove designed to provide dependable supplemental or primary heating while separating indoor air from the combustion process. The Empire Spirit DVP30MS30FN uses a millivolt control system with a standing pilot that is lit using a pushbutton piezo ignitor and operated with a concealed on/off switch or compatible optional remote control systems.
Its direct vent design draws combustion air from outdoors while venting exhaust gases outside through a sealed system, helping maintain indoor air quality. The integrated Slope Glaze Burner features ceramic beads that create naturally swirling flames, while the expanded ember bed, hand-painted ceramic fiber log set, and barrier screen deliver a realistic fireplace appearance. Available in a freestanding medium steel design, this stove offers flexibility for a variety of room layouts and can continue providing heat during many winter power outages because of its millivolt ignition system. Designed for natural gas operation, the unit combines practical heating performance with realistic flame presentation for everyday residential use.
Features
- Direct vent system separates combustion air from indoor room air.
- Millivolt ignition with standing pilot, pushbutton piezo ignitor, and concealed on/off switch.
- Slope Glaze Burner with ceramic beads creates naturally swirling flames.
- Hand-painted 4-piece ceramic fiber log set with expanded ember bed for a realistic fire appearance.
- Can be used as a primary heat source and is compatible with optional remote or thermostat controls.
- Freestanding medium steel stove with barrier screen included.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire Spirit |
| SKU | DVP30MS30FN |
| Model | DVP30MS |
| Product Type | Direct Vent Steel Stove |
| Fuel Type | Natural Gas |
| Vent Type | Direct Vent |
| Ignition | Millivolt Control |
| Installation | Freestanding |
| Maximum Input | 26,500 BTU/hr |
| Minimum Input | 18,000 BTU/hr |
| Vent Size | 4 x 6 5/8 in. |
| Gas Inlet | 3/8 in. |
| Orifice | 39 |
| Air Shutter Setting | 3/16 in. |
| Maximum Gas Supply Pressure | 10.5 in. W.C. (2.614 kPa) |
| Minimum Gas Supply Pressure | 4.5 in. W.C. (1.121 kPa) |
| Manifold Pressure | 3.5 in. W.C. (0.872 kPa) |
| Width | 27 in. |
| Height | 27 in. |
| Depth | 16 in. |
Included
- Medium Steel Stove
- 4-Piece Log Set
- Barrier Screen
- Slope Glaze Burner
Sold Separately
- 45-Degree Elbow (Required)
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Traditional Floor Pad
- Traditional/Corner Floor Pad
- Stone Inlay Kit
Warranty
- Direct vent combustion chamber: 10-year limited warranty
- Glass: Limited lifetime warranty
- Remote controls: 1-year limited warranty
- All other parts: 3-year limited warranty
Technical Documents & Manuals
Product FAQs
Q1. What type of venting does the Empire Spirit DVP30MS30FN use?
A: The Empire Spirit DVP30MS30FN uses a direct vent system that draws combustion air from outdoors while venting combustion by-products outside through a sealed vent system.
Q2. How is the Empire Spirit Natural Gas Stove operated?
A: This model features a millivolt control system with a standing pilot that is lit using a pushbutton piezo ignitor. Once lit, the stove is operated using the concealed on/off switch or compatible optional remote control systems.
Q3. What is included with the Empire Spirit DVP30MS30FN?
A: The stove includes the medium steel stove, a 4-piece hand-painted ceramic fiber log set, a barrier screen, and the Slope Glaze Burner. Additional accessories such as a blower, porcelain liner, and floor pads are available separately.
