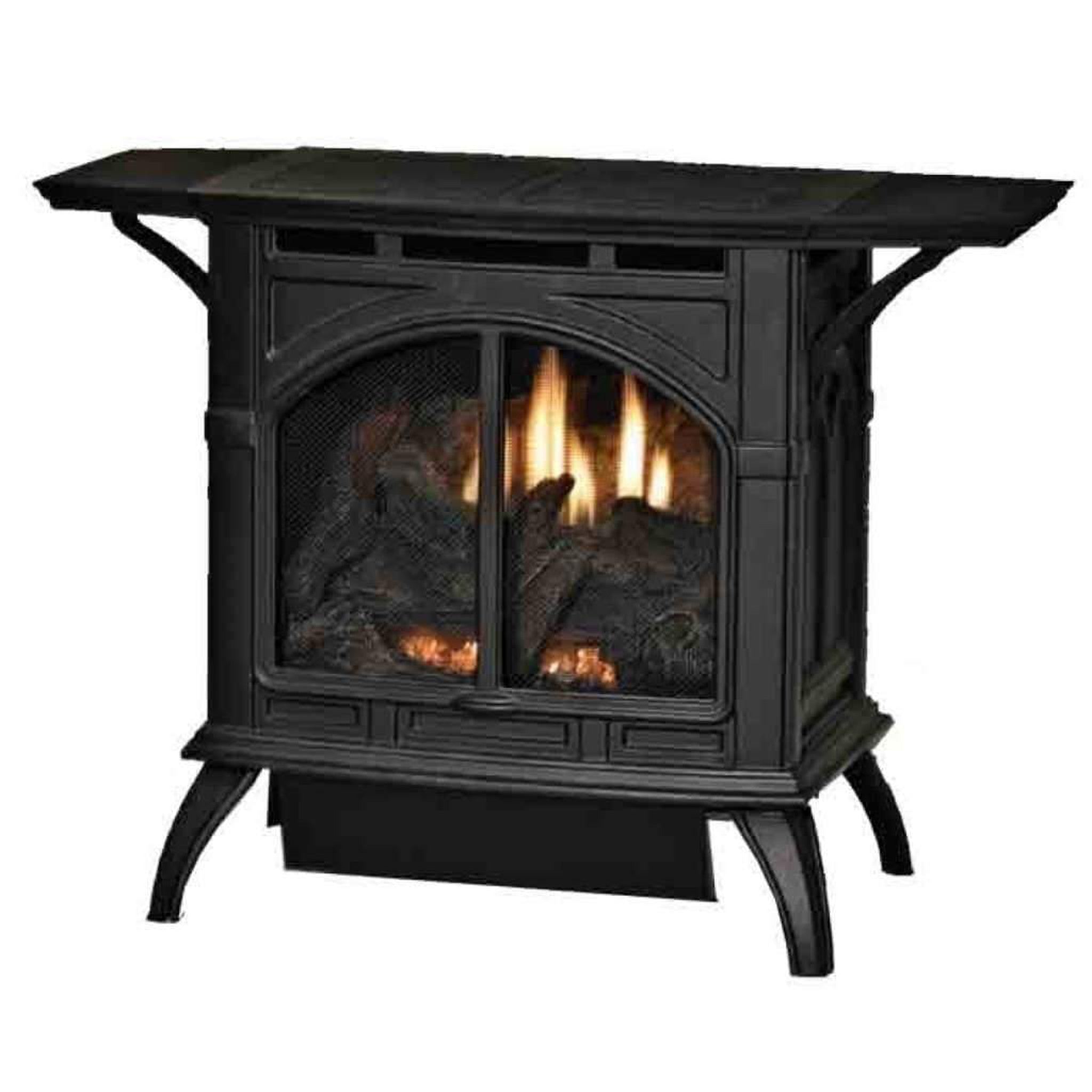

The Empire Spirit 22" Vent-Free Cast Iron Stove VFD20CC30BN is a natural gas heating appliance designed for freestanding installation and reliable supplemental warmth. Built with a millivolt ignition system, it uses a standing pilot that can be activated via a pushbutton piezo ignitor and controlled through an on/off switch located on the unit or compatible optional remote systems.
This model delivers up to 20,000 BTUs of heating output, providing efficient heat distribution without the need for venting, which simplifies installation requirements. The stove features Empire’s Contour burner system, designed to enhance flame movement and ember glow through precision-port technology and ceramic bead gas interaction.
A hand-painted ceramic fiber log set and glowing embers contribute to a realistic fire appearance. Fully operable cast iron doors add functional accessibility and visual authenticity. With its porcelain black finish and richly detailed casting, this stove is engineered for installation versatility while maintaining consistent performance during operation, including during power outages where applicable.
Features
- Millivolt ignition system with standing pilot and pushbutton piezo ignitor
- Up to 20,000 BTU heating capacity for supplemental room warmth
- Vent-free design for simplified installation without external venting
- Contour burner system with ceramic beads for dynamic flame movement
- Hand-painted ceramic fiber log set with glowing ember effect
- Fully operable decorative cast iron doors for realistic stove styling
Specifications
- Brand: Empire
- Model: VFD20CC30
- SKU: VFD20CC30BN
- Product Type: Vent-Free Cast Iron Stove
- Fuel Type: Natural Gas
- Ignition Type: Millivolt
- Installation Type: Freestanding
- Vent Type: Vent-Free
- Maximum Input: 20,000 BTU/hr (KW/H)
- Minimum Input: 14,500 BTU/hr (KW/H)
- Gas Inlet: 3/8"
- Air Shutter Setting: 1/8"
- Dimensions (W x H x D): 22" x 24" x 15"
- Finish/Color: Porcelain Black
- Warranty: 5-year limited parts warranty, 5-year limited labor warranty; 1-year limited warranty on remote controls
Technical Documents & Manuals
Product FAQs
Q1: Does this stove require a chimney or external venting?
No. This model is a vent-free design, which eliminates the need for external venting systems.
Q2: What type of ignition system does the stove use?
It uses a millivolt system with a standing pilot and a pushbutton piezo ignitor, along with an on/off switch.
Q3: What is included with the product?
The stove includes a cast iron small stove, 6-piece log set, contour burner, and an on/off switch.
