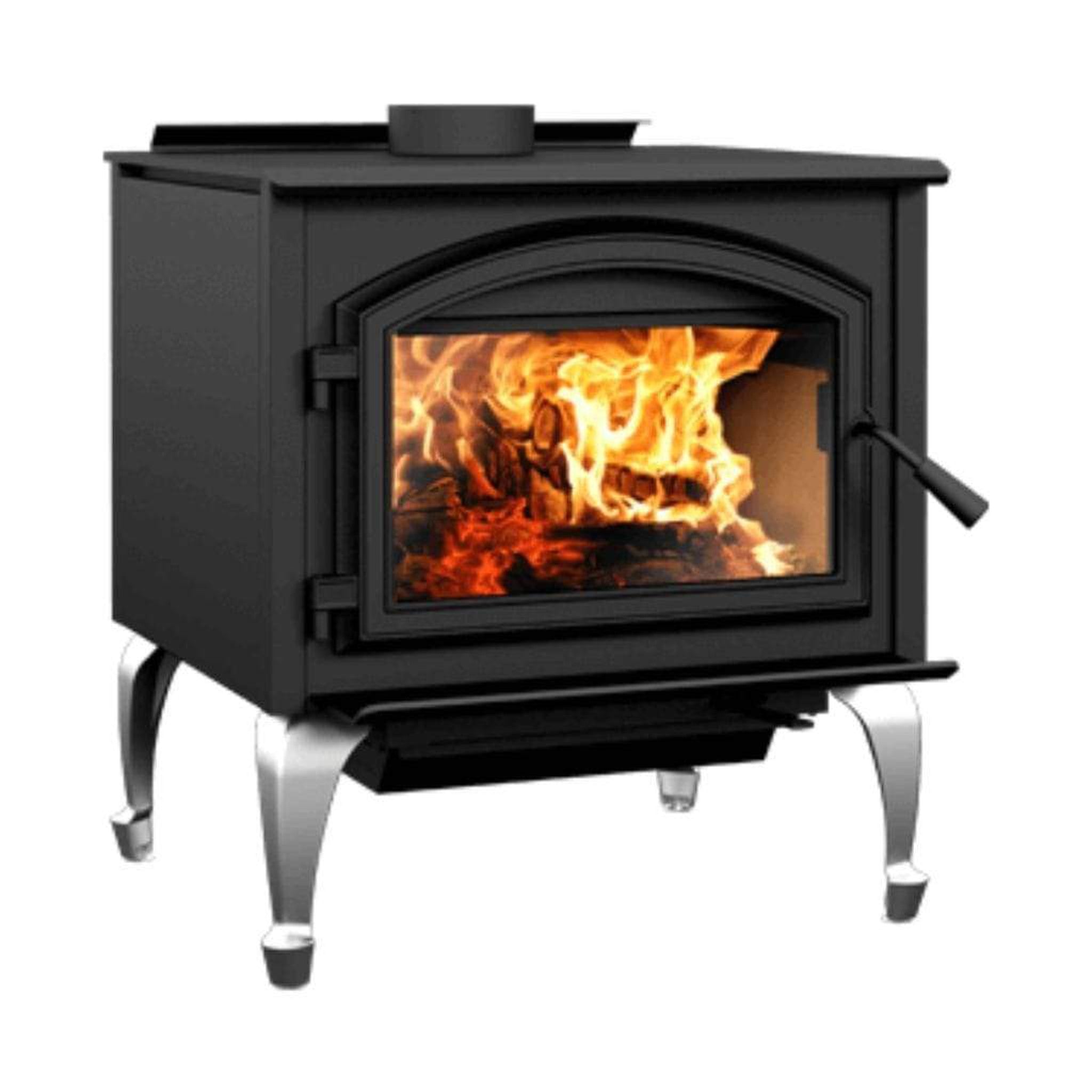

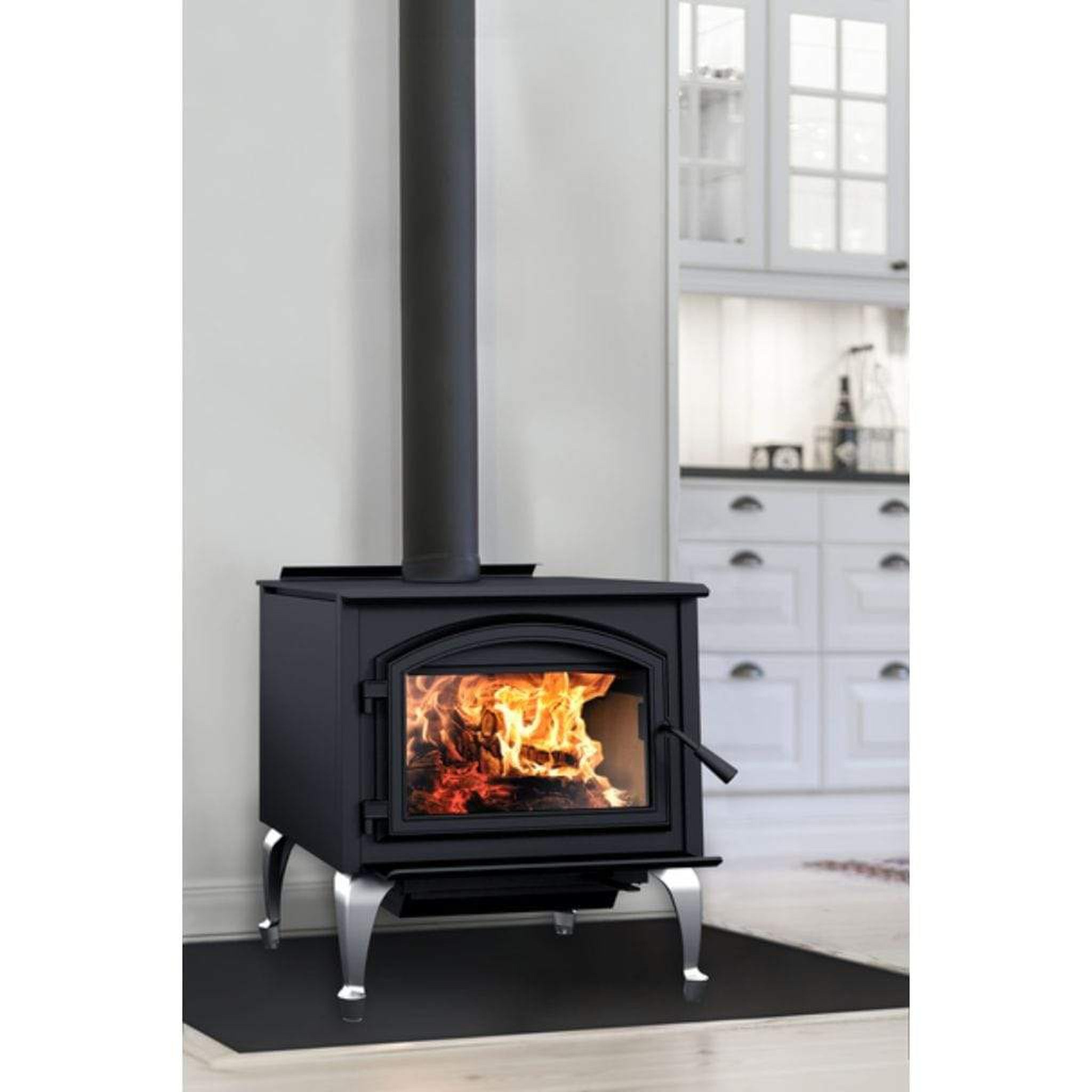

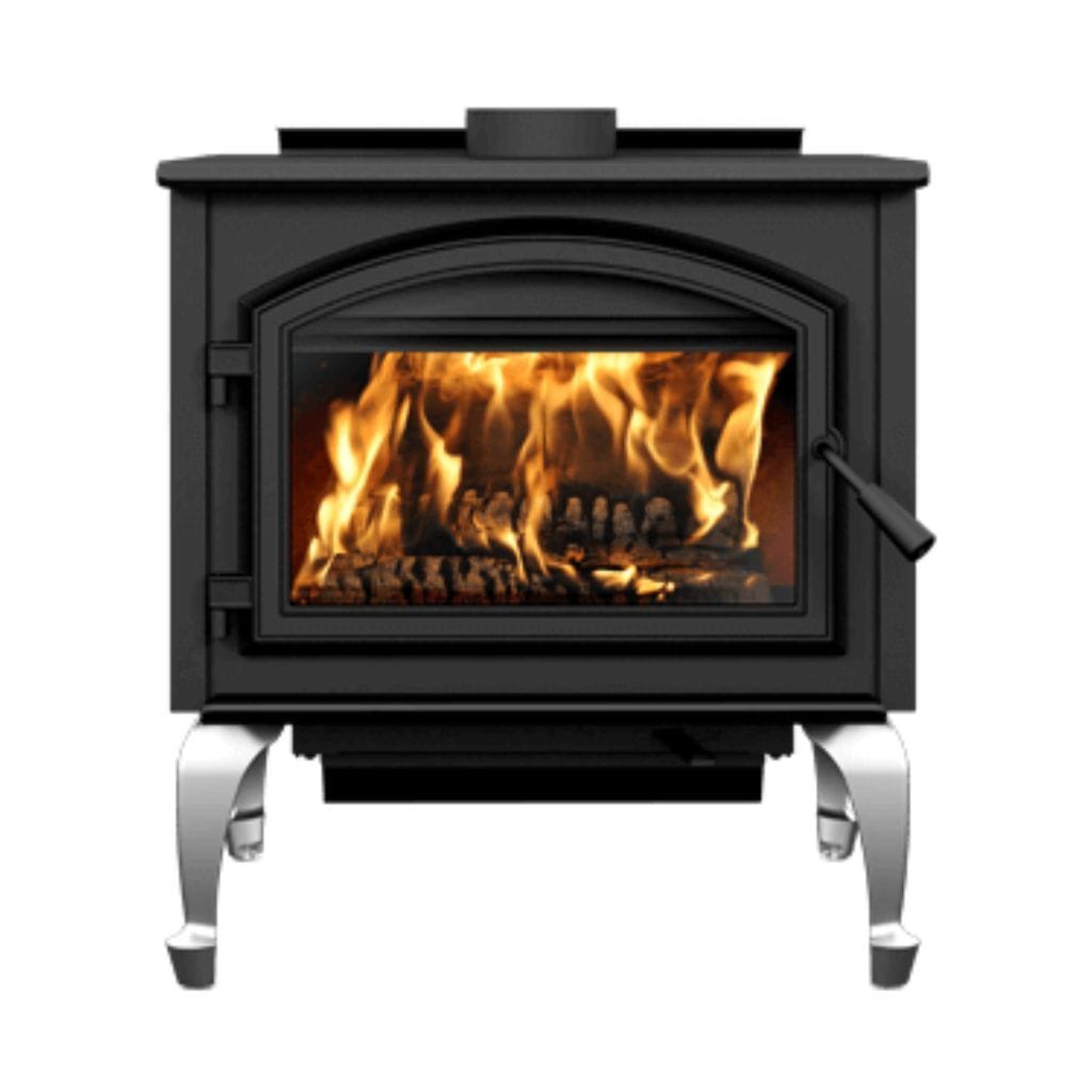

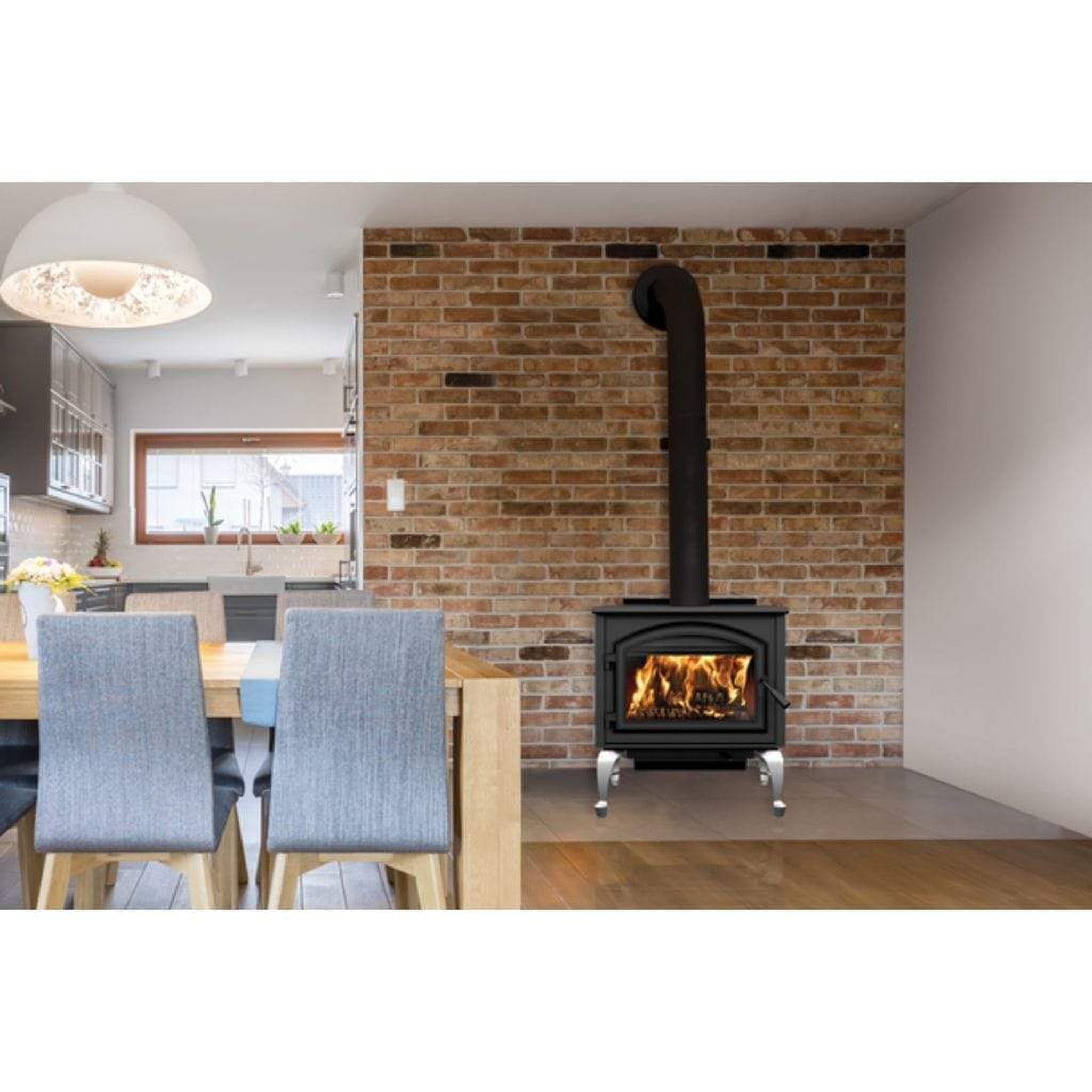

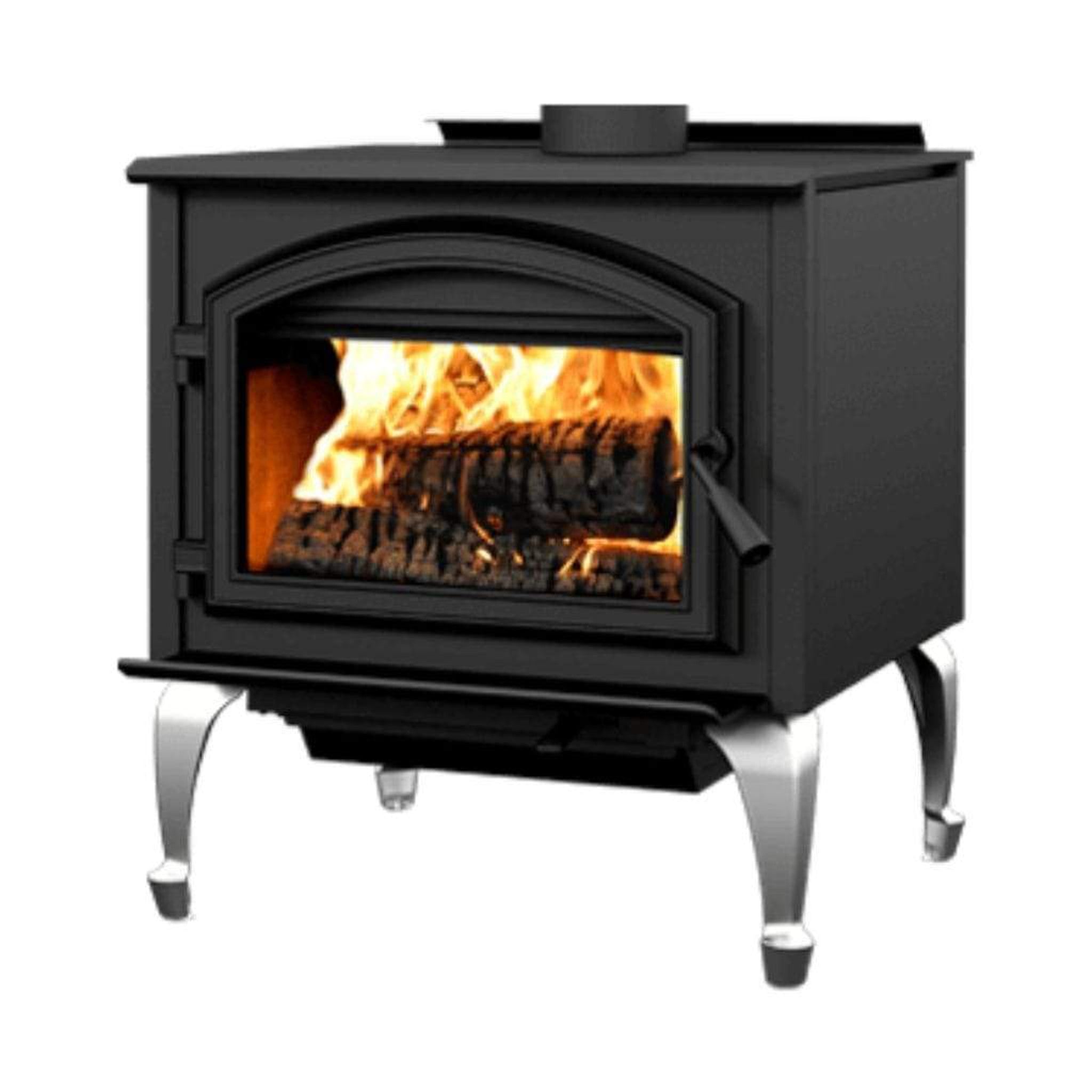

The Empire Gateway 3500 28" Freestanding Wood Burning Stove is designed to provide dependable wood heat for spacious homes and large rooms while offering straightforward operation and maintenance. Built with a 3.5 cu. ft. firebox and EPA 2020 certification, this stove is engineered for efficient performance using dry cordwood fuel.
Its one-lever air control allows users to adjust the burn rate with ease, making it simple to manage everything from a lively fire to a slower burn. The integrated air wash system helps keep the ceramic glass cleaner by circulating hot air across the viewing area, while the removable ash pan with cover simplifies ash disposal and helps reduce mess during maintenance. Constructed with a durable 5/16-inch steel top, high-density firebrick lining, and a high heat ceramic baffle, the stove is designed for long-term durability and consistent operation. With a heating area of 1,000 to 2,700 square feet, a maximum BTU rating of 110,000, and burn times up to 10 hours, the Empire Gateway 3500 offers a practical heating solution for larger living spaces.
Features
- One-lever air control provides simple adjustment of the burn rate for easy operation.
- Integrated air wash system circulates hot air to help keep the ceramic glass cleaner for a clearer fire view.
- Removable no-mess ash pan includes a cover for easier ash disposal and cleaner maintenance.
- Constructed with a durable 5/16-inch steel top for lasting performance and extended heat radiation.
- Firebox is lined with high-density firebricks to support heat insulation and distribution.
- High heat ceramic baffle is designed to withstand elevated temperatures for consistent performance.
Specifications
| Specification | Details |
|---|---|
| Brand | Empire |
| Model | Gateway 3500 |
| SKU | WB35FS |
| Product Type | Freestanding Wood Burning Stove |
| Fuel Type | Dry Cordwood |
| Combustion Technology | Non-Catalytic |
| EPA Certification | EPA 2020 Certified |
| Color | Metallic Black |
| Firebox Size | 3.5 cu. ft. |
| Heating Area | 1,000–2,700 sq. ft. |
| BTU Rating (AWEIS) | 110,000 BTU |
| Average Overall Efficiency (HHV) | 71% |
| Average Overall Efficiency (LHV) | 76% |
| Optimum Efficiency | 77% |
| Burn Time | Up to 10 Hours |
| Flue Diameter | 6 inches |
| Maximum Log Length | 22 inches |
| Mounting Location | Freestanding |
| Decorative Style | Classic/Traditional |
| Width | 28 inches |
| Height | 34 inches |
| Depth | 25 inches |
Construction Materials
- 5/16-inch thick steel top
- High heat ceramic baffle
- High-temperature ceramic glass
- High-density firebrick-lined firebox
Warranty
- Limited Lifetime: Combustion chamber (welds only), cast iron door frame, ceramic glass, plating (manufacturing defect), step top
- Limited 7 Year: Surrounds, heat shields, ash drawer, pedestal, C-Cast baffle, secondary air tubes, deflectors, and supports
- Limited 5 Year: Handle assembly, glass retainers, air control mechanism, removable carbon steel combustion chamber components
- Limited 2 Year: Standard and optional blower, heat sensors, switches, rheostat, wiring, and electronics
- Limited 1 Year: Paint peeling, gaskets, insulation, ceramic fiber blankets, firebricks, and other options
- Limited 90 Day: All parts replaced under warranty
Technical Documents & Manuals
Product FAQs
1. What size area can the Empire Gateway 3500 heat?
The Empire Gateway 3500 is designed to heat areas ranging from 1,000 to 2,700 square feet, depending on installation conditions and the space being heated.
2. What type of fuel does the Empire Gateway 3500 use?
This stove is designed for use with dry cordwood and utilizes non-catalytic combustion technology. It is EPA 2020 Certified.
3. What features make maintenance easier?
The stove includes a no-mess ash pan with a cover for easier ash removal and an air wash system that circulates hot air across the ceramic glass to help reduce dirt and debris buildup, maintaining a clearer view of the fire.
